Which has more horsepower, the Mahindra 1126 or the Mahindra 1126 HST Cab?

They are effectively tied: both machines are rated at 25.3 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 1126 or the Mahindra 1126 HST Cab?

They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.

Which is heavier, the Mahindra 1126 or the Mahindra 1126 HST Cab?

The Mahindra 1126 HST Cab leads on weight at 2,368 lb lb, compared to 2,026 lb lb for the Mahindra 1126.

Which has more loader lift capacity, the Mahindra 1126 or the Mahindra 1126 HST Cab?

They are effectively tied: both machines are rated at 794 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra 1126 or the Mahindra 1126 HST Cab?

They are effectively tied: both machines are rated at 771 lb lb for 3-pt lift (24 in).

Mahindra 1126 vs Mahindra 1126 HST Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 1126 HST Cab leads 1 categories to 0 (8 tied). Machine pages: Mahindra 1126 and Mahindra 1126 HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1126	Mahindra 1126 HST Cab
Engine HP (hp)	25.3 hp	25.3 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	2,026 lb	▲ 2,368 lb
Loader Lift (lb)	794 lb	794 lb
3-Pt Lift (24 in) (lb)	771 lb	771 lb
Lift Height (in)	68 in	68 in
Breakout Force (lbf)	1,433 lbf	1,433 lbf
Hydraulic Flow (gpm)	11.4 gpm	11.4 gpm
Travel Speed (mph)	7.3 mph	7.3 mph

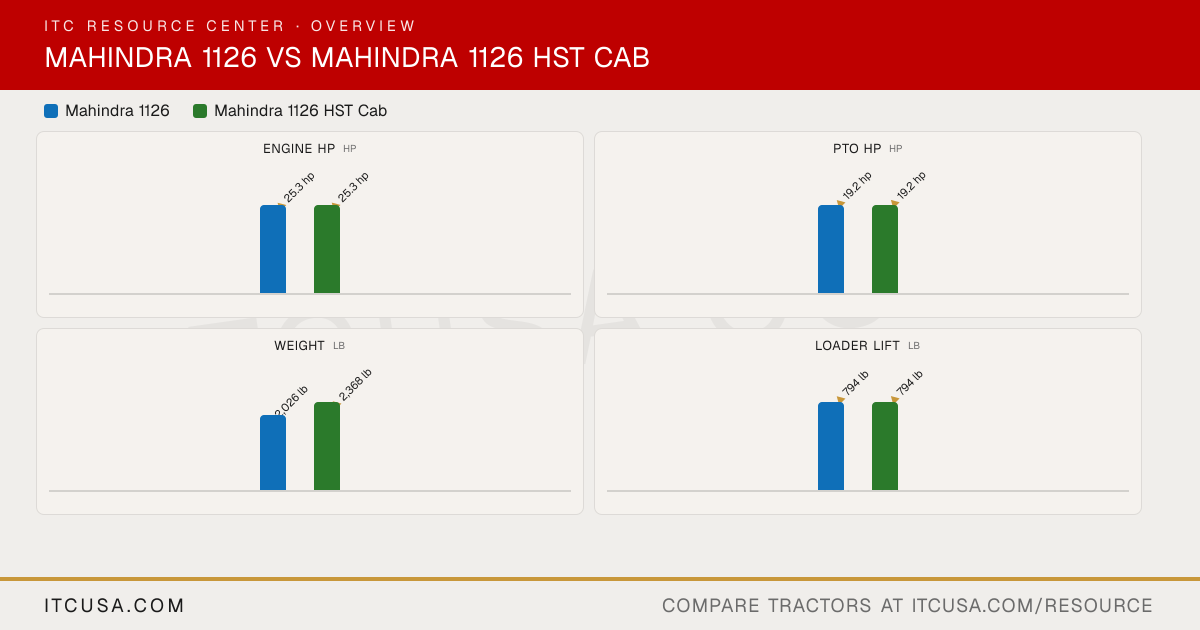

The headline numbers at a glance.

Mahindra 1126Mahindra 1126 HST Cab

Engine HPhp

▲25.3 hp

PTO HPhp

▲19.2 hp

Weightlb

2,026 lb

▲2,368 lb

Loader Liftlb

▲794 lb

3-Pt Lift (24 in)lb

▲771 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1126	Mahindra1126 HST Cab


PTO Power	19.2 hp	19.2 hp
Alternator	55 A, 12 V	55 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System	Indirect Injection	Indirect Injection
Displacement	67.2 in³	67.2 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Water-Cooled	Water-Cooled
Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Power (Gross)	25.3 hp	25.3 hp
Engine Emissions Constraints	No DPF	No DPF

Weight with ROPS and Loader	2026 lb	Not Applicable
Weight with Cab and Loader	Not Applicable	2368 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	7-Year Limited Powertrain Warranty

Pump Type	Not Published	Not Published
Steering Flow	3.8 gpm	3.8 gpm
Implement Flow	7.6 gpm	7.6 gpm
Total Hydraulic Flow	11.4 gpm	11.4 gpm
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.4 gpm	11.4 gpm
No. of Optional Remote Valves	Single or dual	Single or dual
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm @ 2837 rpm	540 rpm @ 2837 rpm
PTO Type	Independent Wet Clutch	Independent Wet Clutch
Lift Control Type	Position Control	Position Control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I with check chains
Hitch Lift Capacity (at 24”)	771 lb	771 lb

R3 Turf - Rear	26X12-12	26X12-12
R3 Turf - Front	18X8.5-10	18X8.5-10
Tire Size & Options	R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12-12	26X12-12
R4 Industrial - Front	18X8.5-10	18X8.5-10
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	68 in	68 in
Loader Breakout Force	1433 lb	1433 lb
Quick Attach Loader System	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	794 lb	794 lb

Clutch	Not Applicable	Not Applicable
No. of Speeds	Infinite / 2 ranges	Infinite / 2 ranges
Transmission Type	HST	HST
Max Travel Speed (Forward)	7.3 mph	7.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Single Pedal	Single Pedal
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	55.1 in	55.1 in
Overall Width	46.3 in	46.3 in
Ground Clearance	6.7 in	6.7 in
Height to Top of ROPS	86.6 in	Not Applicable
Height to Top of Cab Model	Not Applicable	80.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	100.4 in	100.4 in

Mahindra 1126 vs Mahindra 1126 HST Cab: Quick Answers

Which has more horsepower, the Mahindra 1126 or the Mahindra 1126 HST Cab?: They are effectively tied: both machines are rated at 25.3 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 1126 or the Mahindra 1126 HST Cab?: They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.
Which is heavier, the Mahindra 1126 or the Mahindra 1126 HST Cab?: The Mahindra 1126 HST Cab leads on weight at 2,368 lb lb, compared to 2,026 lb lb for the Mahindra 1126.
Which has more loader lift capacity, the Mahindra 1126 or the Mahindra 1126 HST Cab?: They are effectively tied: both machines are rated at 794 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra 1126 or the Mahindra 1126 HST Cab?: They are effectively tied: both machines are rated at 771 lb lb for 3-pt lift (24 in).
