Mahindra 1126 vs Mahindra 3016

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 3016 leads 8 categories to 0 (1 tied). Machine pages: Mahindra 1126 and Mahindra 3016.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1126	Mahindra 3016
Engine HP (hp)	25.3 hp	▲ 26 hp
PTO HP (hp)	19.2 hp	▲ 23 hp
Weight (lb)	1,620 lb	▲ 2,437 lb
Loader Lift (lb)	794 lb	▲ 1,650 lb
3-Pt Lift (24 in) (lb)	771 lb	▲ 1,720 lb
Lift Height (in)	68 in	▲ 99 in
Breakout Force (lbf)	1,433 lbf	▲ 2,650 lbf
Hydraulic Flow (gpm)	11.2 gpm	11.2 gpm
Travel Speed (mph)	7.3 mph	▲ 11.9 mph

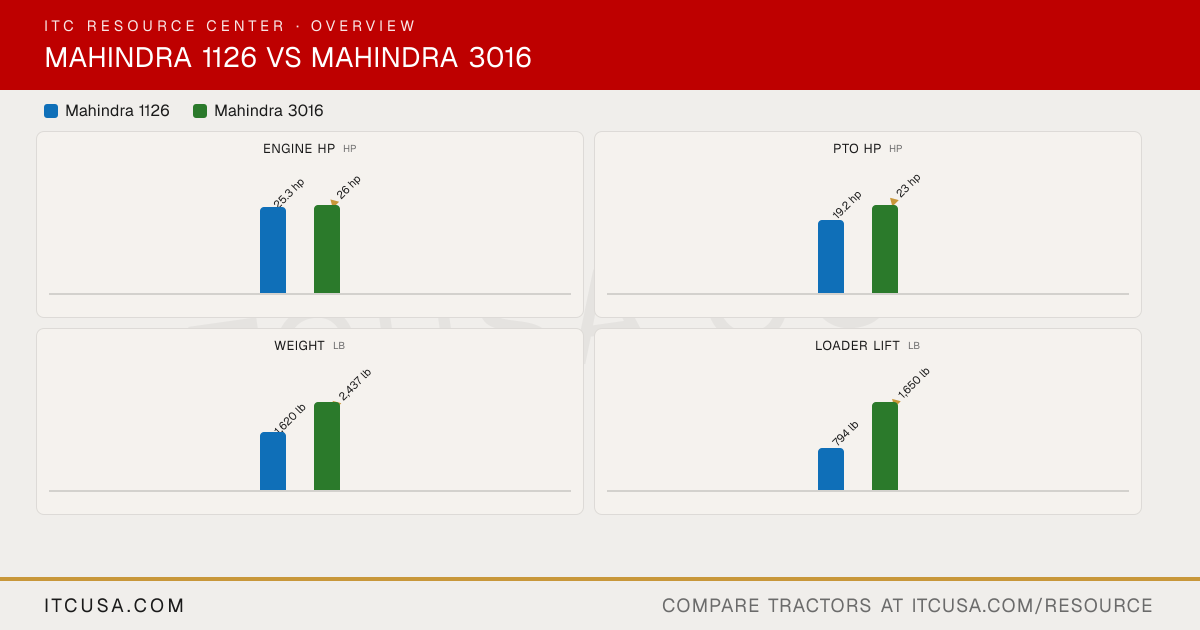

The headline numbers at a glance.

Mahindra 1126Mahindra 3016

Engine HPhp

25.3 hp

▲26 hp

PTO HPhp

19.2 hp

▲23 hp

Weightlb

1,620 lb

▲2,437 lb

Loader Liftlb

794 lb

▲1,650 lb

3-Pt Lift (24 in)lb

771 lb

▲1,720 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1126	Mahindra3016


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	MVL3E3	Not Published
Engine Type	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine	Three cylinder, four cycle, valve in cylinder head, cross flow porting diesel
No. of Cylinders	3	3
Displacement	67.2 in³	80.43 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	25.3 hp	26 hp
PTO Power	19.2 hp	23 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-Cooled	Liquid-cooled, pressurized, thermostat controlled bypass, impeller pump
Air Cleaner	Not Published	Dry type with double filter
Fuel System	Indirect Injection	Indirect injection; Bosch M type ND-PFR (Denso) injection pump, throttle type injectors
Alternator	55 A, 12 V	50 A

Pump Type	Not Published	Gear type, front mounted, engine driven
Implement Flow	7.6 gpm	7.8 gpm
Steering Flow	3.8 gpm	3.4 gpm
Total Hydraulic Flow	11.2 gpm	11.2 gpm (7.8 + 3.4, computed)
Overall Hydraulic Pump Flow	11.2 gpm	Not Published
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Single or dual	1

Fuel Tank Capacity	6.6 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent Wet Clutch	Independent (3016 Gear Drive); Live (3016 Hydrostatic Drive)
PTO Rear	540 rpm @ 2837 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Optional; 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	771 lb	1720 lb
Lift Control Type	Position Control	Position control

Transmission Type	HST - 2 Range	Synchro shuttle, constant mesh main with 2 ranges (3016 Gear Drive); Hydrostatic, 3 ranges (3016 Hydrostatic Drive)
No. of Speeds	Infinite forward and reverse (2 ranges)	8F/8R (3016 Gear Drive); Infinite, 3 ranges (3016 Hydrostatic Drive)
Max Travel Speed (Forward)	7.3 mph	11.9 mph (3016 Gear Drive); 13.8 mph (3016 Hydrostatic Drive)
Max Travel Speed (Reverse)	Not Published	9.9 mph (3016 Gear Drive); 6.9 mph (3016 Hydrostatic Drive)
Clutch	Not Published	Dry single disc, diaphragm type, 8.46 in
Differential Lock & Limited Slip Options	Not Published	Mechanical differential lock, pedal actuated

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Single Pedal	Wet disc, mechanical
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Mechanical front drive (MFD), spiral bevel gear differential with bevel gear reductions
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	969 lbf

Overall Length with 3-Point Hitch	100.4 in	121.3 in
Overall Width	46.3 in	63 in
Wheelbase	55.1 in	67.3 in
Ground Clearance	6.7 in	11.4 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	7.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1620 lb	2437 lb (3016 Gear Drive); 2459 lb (3016 Hydrostatic Drive)
Weight with ROPS and Loader	2026 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	Not Published	7x16
R1 Agricultural - Rear	Not Published	11.2x24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12-12	13.6x16
R4 Industrial - Front	18x8.5-10	27x8.50-15
R4 Industrial - Rear	26x12-12	15x19.5

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	Not Published
Loader Model	L11	ML115
Loader Lift Height	L11: 68 in	ML115: 99 in
Loader Lift Capacity (Full Height)	L11: 794 lb	ML115: 1,650 lb
Loader Breakout Force	L11: 1433 lb	ML115: 2,650 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Not Published

Find a Mahindra dealer near you

Mahindra 1126 vs Mahindra 3016: Quick Answers

Which has more horsepower, the Mahindra 1126 or the Mahindra 3016?: The Mahindra 3016 leads on engine hp at 26 hp hp, compared to 25.3 hp hp for the Mahindra 1126.
Which has more PTO horsepower, the Mahindra 1126 or the Mahindra 3016?: The Mahindra 3016 leads on pto hp at 23 hp hp, compared to 19.2 hp hp for the Mahindra 1126.
Which is heavier, the Mahindra 1126 or the Mahindra 3016?: The Mahindra 3016 leads on weight at 2,437 lb lb, compared to 1,620 lb lb for the Mahindra 1126.
Which has more loader lift capacity, the Mahindra 1126 or the Mahindra 3016?: The Mahindra 3016 leads on loader lift at 1,650 lb lb, compared to 794 lb lb for the Mahindra 1126.
Which has more three-point hitch lift capacity, the Mahindra 1126 or the Mahindra 3016?: The Mahindra 3016 leads on 3-pt lift (24 in) at 1,720 lb lb, compared to 771 lb lb for the Mahindra 1126.

More Head-to-Heads

Category Verdict

Spec	Mahindra 1126	Mahindra 3016
Engine HP (hp)	25.3 hp	▲ 26 hp
PTO HP (hp)	19.2 hp	▲ 23 hp
Weight (lb)	1,620 lb	▲ 2,437 lb
Loader Lift (lb)	794 lb	▲ 1,650 lb
3-Pt Lift (24 in) (lb)	771 lb	▲ 1,720 lb
Lift Height (in)	68 in	▲ 99 in
Breakout Force (lbf)	1,433 lbf	▲ 2,650 lbf
Hydraulic Flow (gpm)	11.2 gpm	11.2 gpm
Travel Speed (mph)	7.3 mph	▲ 11.9 mph

The headline numbers at a glance.

Mahindra 1126Mahindra 3016

Engine HPhp

25.3 hp

▲26 hp

PTO HPhp

19.2 hp

▲23 hp

Weightlb

1,620 lb

▲2,437 lb

Loader Liftlb

794 lb

▲1,650 lb

3-Pt Lift (24 in)lb

771 lb

▲1,720 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1126	Mahindra3016


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	MVL3E3	Not Published
Engine Type	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine	Three cylinder, four cycle, valve in cylinder head, cross flow porting diesel
No. of Cylinders	3	3
Displacement	67.2 in³	80.43 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	25.3 hp	26 hp
PTO Power	19.2 hp	23 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-Cooled	Liquid-cooled, pressurized, thermostat controlled bypass, impeller pump
Air Cleaner	Not Published	Dry type with double filter
Fuel System	Indirect Injection	Indirect injection; Bosch M type ND-PFR (Denso) injection pump, throttle type injectors
Alternator	55 A, 12 V	50 A

Pump Type	Not Published	Gear type, front mounted, engine driven
Implement Flow	7.6 gpm	7.8 gpm
Steering Flow	3.8 gpm	3.4 gpm
Total Hydraulic Flow	11.2 gpm	11.2 gpm (7.8 + 3.4, computed)
Overall Hydraulic Pump Flow	11.2 gpm	Not Published
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Single or dual	1

Fuel Tank Capacity	6.6 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent Wet Clutch	Independent (3016 Gear Drive); Live (3016 Hydrostatic Drive)
PTO Rear	540 rpm @ 2837 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Optional; 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	771 lb	1720 lb
Lift Control Type	Position Control	Position control

Transmission Type	HST - 2 Range	Synchro shuttle, constant mesh main with 2 ranges (3016 Gear Drive); Hydrostatic, 3 ranges (3016 Hydrostatic Drive)
No. of Speeds	Infinite forward and reverse (2 ranges)	8F/8R (3016 Gear Drive); Infinite, 3 ranges (3016 Hydrostatic Drive)
Max Travel Speed (Forward)	7.3 mph	11.9 mph (3016 Gear Drive); 13.8 mph (3016 Hydrostatic Drive)
Max Travel Speed (Reverse)	Not Published	9.9 mph (3016 Gear Drive); 6.9 mph (3016 Hydrostatic Drive)
Clutch	Not Published	Dry single disc, diaphragm type, 8.46 in
Differential Lock & Limited Slip Options	Not Published	Mechanical differential lock, pedal actuated

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Single Pedal	Wet disc, mechanical
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Mechanical front drive (MFD), spiral bevel gear differential with bevel gear reductions
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	969 lbf

Overall Length with 3-Point Hitch	100.4 in	121.3 in
Overall Width	46.3 in	63 in
Wheelbase	55.1 in	67.3 in
Ground Clearance	6.7 in	11.4 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	7.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1620 lb	2437 lb (3016 Gear Drive); 2459 lb (3016 Hydrostatic Drive)
Weight with ROPS and Loader	2026 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	Not Published	7x16
R1 Agricultural - Rear	Not Published	11.2x24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12-12	13.6x16
R4 Industrial - Front	18x8.5-10	27x8.50-15
R4 Industrial - Rear	26x12-12	15x19.5

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	Not Published
Loader Model	L11	ML115
Loader Lift Height	L11: 68 in	ML115: 99 in
Loader Lift Capacity (Full Height)	L11: 794 lb	ML115: 1,650 lb
Loader Breakout Force	L11: 1433 lb	ML115: 2,650 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Not Published

Find a Mahindra dealer near you

Mahindra 1126 vs Mahindra 3016: Quick Answers

Which has more horsepower, the Mahindra 1126 or the Mahindra 3016?

The Mahindra 3016 leads on engine hp at 26 hp hp, compared to 25.3 hp hp for the Mahindra 1126.

Which has more PTO horsepower, the Mahindra 1126 or the Mahindra 3016?

The Mahindra 3016 leads on pto hp at 23 hp hp, compared to 19.2 hp hp for the Mahindra 1126.

Which is heavier, the Mahindra 1126 or the Mahindra 3016?

The Mahindra 3016 leads on weight at 2,437 lb lb, compared to 1,620 lb lb for the Mahindra 1126.

Which has more loader lift capacity, the Mahindra 1126 or the Mahindra 3016?

The Mahindra 3016 leads on loader lift at 1,650 lb lb, compared to 794 lb lb for the Mahindra 1126.

Which has more three-point hitch lift capacity, the Mahindra 1126 or the Mahindra 3016?

The Mahindra 3016 leads on 3-pt lift (24 in) at 1,720 lb lb, compared to 771 lb lb for the Mahindra 1126.
