Across 8 measurable specs, the Mahindra 1538 leads 4 categories to 3 (1 tied). Machine pages: Mahindra 1538 and Mahindra 1640.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 1538 | Mahindra 1640 |
|---|
| Engine HP (hp) | 38.7 hp | 38.7 hp |
| PTO HP (hp) | ▲ 29.9 hp | 27.7 hp |
| Weight (lb) | ▲ 3,186 lb | 3,175 lb |
| Loader Lift (lb) | 1,650 lb | ▲ 1,830 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,646 lb | 1,720 lb |
| Lift Height (in) | ▲ 99 in | 92 in |
| Breakout Force (lbf) | 2,650 lbf | ▲ 2,777 lbf |
| Hydraulic Flow (gpm) | 11 gpm | ▲ 11.1 gpm |
| Travel Speed (mph) | n/a | 14.8 mph |

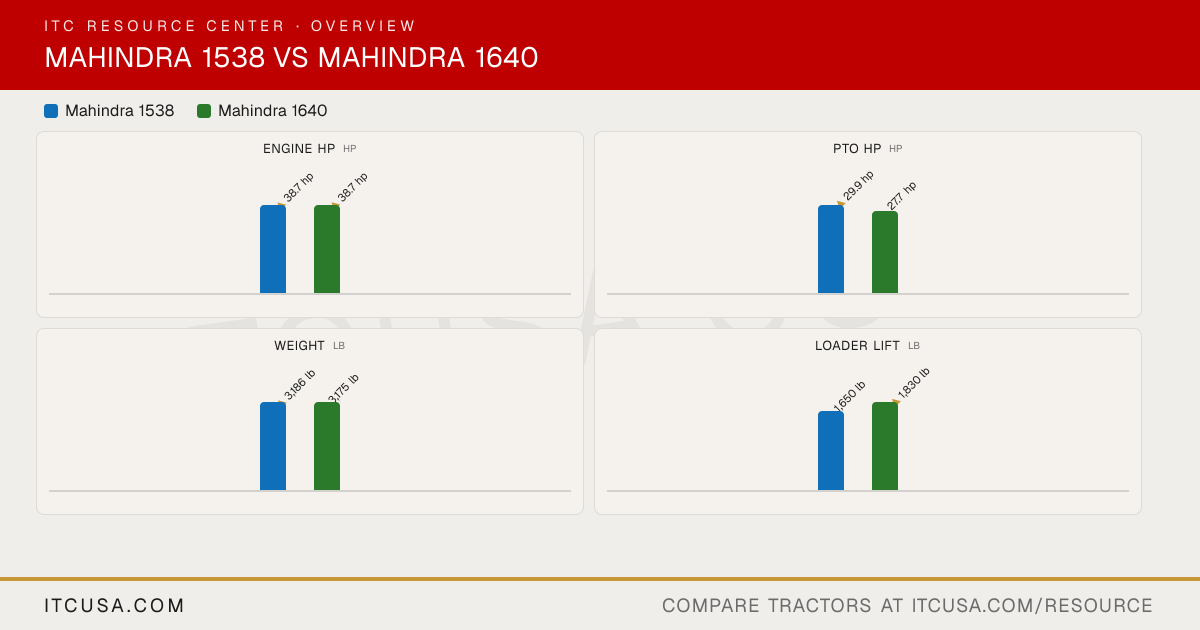

The headline numbers at a glance.
Mahindra 1538Mahindra 1640
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra1538 | Mahindra1640 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | Not Published | CE-38 |
|---|
| Engine Type | Naturally aspirated direct injection diesel (mCRD common rail) | Four-stroke, naturally aspirated, direct injection, water cooled diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 166.7 in³ | 166.7 in³ |
|---|
| Rated Engine Speed | 2400 rpm | 2400 rpm |
|---|
| Engine Power (Gross) | 38.7 hp | 38.7 hp |
|---|
| PTO Power | 29.9 hp | 27.7 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Water-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Direct injection, common rail (mCRD) | Direct injection |
|---|
| Alternator | 90 A, 12 V | 90 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 7.7 gpm | 7.7 gpm |
|---|
| Steering Flow | 3.4 gpm | 3.4 gpm |
|---|
| Total Hydraulic Flow | 11 gpm | 11.1 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 11.1 gpm |
|---|
| Hydraulic System Type | Open center | Open Center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 1 | 1 |
|---|
|
|---|
| Fuel Tank Capacity | 7.7 gal | 7.7 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent (1538 Shuttle); Live (1538 HST); Live (1538 HST Cab) | Live with o/r clutch |
|---|
| PTO Rear | 540 rpm @ 2376 rpm | 540 rpm @ 2376 rpm |
|---|
| Mid-PTO Availability | Optional; 2000 rpm @ 2525 rpm | Optional; 2000 rpm @ 2526 rpm |
|---|
| Category, 3-Point Hitch | CAT I with telescopic stabilizers | CAT I with Telescoping Stabilizers & Flex Links |
|---|
| Hitch Lift Capacity | 2646 lb | 2646 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | 1720 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Constant mesh shuttle (1538 Shuttle); HST, 3 ranges (1538 HST); HST, 3 ranges (1538 HST Cab) | HST, 3 ranges |
|---|
| No. of Speeds | 8F/8R (1538 Shuttle); Infinite, 3 ranges (1538 HST); Infinite, 3 ranges (1538 HST Cab) | Infinite / 3 Ranges |
|---|
| Max Travel Speed (Forward) | Not Published | 14.8 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dry single disc | Dry-Single |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic Power Steering |
|---|
| Brakes | Wet disc | Wet Disc |
|---|
| Seat Suspension & Adjustability | Deluxe suspension seat | mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 127.8 in | 127.8 in |
|---|
| Overall Width | 62 in | 62 in |
|---|
| Wheelbase | Not Published | 76.9 in |
|---|
| Ground Clearance | Not Published | 12.8 in |
|---|
| Min. Turn Radius without Brakes | 9.2 ft | 9.2 ft (with brake applied) |
|---|
| Height to Top of ROPS | 91.5 in | 91.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 89.4 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3186 lb (1538 Shuttle); 3175 lb (1538 HST); 3627 lb (1538 HST Cab) | 3,175 lb |
|---|
| Weight with ROPS and Loader | Not Published | 3798 lb |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Ag, Industrial, Turf | R1 Agriculture, R3 Turf, R4 Industrial |
|---|
| R1 Agricultural - Front | 7x16 | 7 x 16 |
|---|
| R1 Agricultural - Rear | 11.2x24 | 11.2 x 24 |
|---|
| R3 Turf - Front | 27x10.5-15 | 27 x 10.5-15 |
|---|
| R3 Turf - Rear | 41x14-20 | 41 x 14-20 |
|---|
| R4 Industrial - Front | 28x8.5-15 | 28 x 8.5-15 |
|---|
| R4 Industrial - Rear | 43x16-20 | 43 x 16-20 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Front loader with skid-steer couplers for superfast hookups |
|---|
| Loader Model | 1538L | 1640L (64 in bucket) |
|---|
| Loader Lift Height | 1538L: 99 in | 1640L: 92 in |
|---|
| Loader Lift Capacity (Full Height) | 1538L: 1,650 lb | 1640L: 1,830 lb |
|---|
| Loader Breakout Force | 1538L: 2,650 lb | 1640L: 2,777 lb |
|---|
|
|---|
| Warranty Length & Coverage | 5-year powertrain warranty | 7-year/3,000-hour, $0 deductible limited powertrain warranty |
|---|
Mahindra 1538 vs Mahindra 1640: Quick Answers
- Which has more horsepower, the Mahindra 1538 or the Mahindra 1640?
- They are effectively tied: both machines are rated at 38.7 hp hp for engine hp.
- Which has more PTO horsepower, the Mahindra 1538 or the Mahindra 1640?
- The Mahindra 1538 leads on pto hp at 29.9 hp hp, compared to 27.7 hp hp for the Mahindra 1640.
- Which is heavier, the Mahindra 1538 or the Mahindra 1640?
- The Mahindra 1538 leads on weight at 3,186 lb lb, compared to 3,175 lb lb for the Mahindra 1640.
- Which has more loader lift capacity, the Mahindra 1538 or the Mahindra 1640?
- The Mahindra 1640 leads on loader lift at 1,830 lb lb, compared to 1,650 lb lb for the Mahindra 1538.
- Which has more three-point hitch lift capacity, the Mahindra 1538 or the Mahindra 1640?
- The Mahindra 1538 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,720 lb lb for the Mahindra 1640.
