Mahindra 1626 vs Mahindra Max 26XL

Across 9 measurable specs, the Mahindra 1626 leads 5 categories to 4. Machine pages: Mahindra 1626 and Mahindra Max 26XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

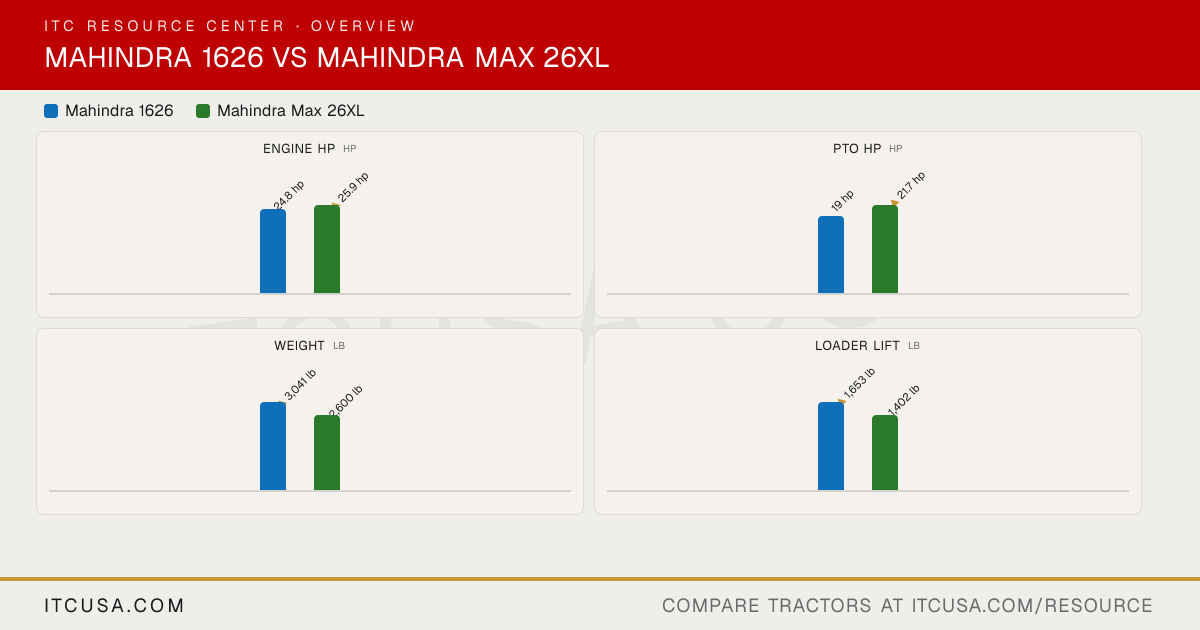

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1626	MahindraMax 26XL

▶Engine
PTO Power	19 hp	21.7 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Fuel System	Indirect Injection	Indirect Injection
Displacement	80.4 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Power (Gross)	24.8 hp @ 500 rpm	25.9 hp @ 500 rpm
Engine Emissions Constraints	DOC / No DPF	No DPF
▶Weight
Weight with ROPS and Loader	3041 lb	2600 lb
Weight with Cab and Loader	Not Applicable	Not Applicable
▶Warranty
Warranty Length & Coverage	7-Year Limited Powertrain Warranty	7-Year Limited Powertrain Warranty
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	3.3 gpm	2.7 gpm
Implement Flow	7.5 gpm	5.8 gpm
Total Hydraulic Flow	10.8 gpm	8.5 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.8 gpm	8.5 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2376 rpm
PTO Type	Live	Live
Lift Control Type	Position Control	Position Control
Hitch Lift Capacity	2646 lb	Not Published
Mid-PTO Availability	Optional; 2000 @ 2526 rpm	Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers	CAT I
Hitch Lift Capacity (at 24”)	1720 lb	2315 lb
▶Tire Options
R3 Turf - Rear	13.6X16	33X12.5-15
R3 Turf - Front	25X8.5-14	23X8.5-12
Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	15X19.5	12-16.5
R4 Industrial - Front	27X8.5-15	23X8.50-12
R1 Agricultural - Rear	11.2X24	9.5-16
R1 Agricultural - Front	7X16	7.0-12
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7.1 gal	6.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Lift Height	84 in	82.7 in
Loader Breakout Force	2557 lb	2690 lb
Quick Attach Loader System	429.5 gal: Front loader with skid-steer couplers for superfast hookups.	MXLT6.9 gal: Quick-Attach Adapter (included)
Loader Lift Capacity (Full Height)	1653 lb	1402 lb
▶Transmission & Drivetrain
Clutch	Dry-Single	Dry-Single
No. of Speeds	Infinite / 3 Ranges	Infinite / 2 Ranges
Transmission Type	HST	HST
Max Travel Speed (Forward)	13.3 mph	10.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published
▶Chassis, Steering & Controls
Brakes	Wet Disc	Wet Disc
Steering	Hydrostatic Power Steering	Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	67.3 in	63.2 in
Overall Width	63.0 in	54.3 in
Ground Clearance	11.4 in	11.4 in
Height to Top of ROPS	81.5 in	84.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	121.3 in	110 in
▶ITC Company Accessories
Accessories that fit	Mahindra 1626 Brush Screen Insert $250.00	None tagged yet

Mahindra 1626 vs Mahindra Max 26XL: Quick Answers

Which has more horsepower, the Mahindra 1626 or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on engine hp at 25.9 hp hp, compared to 24.8 hp hp for the Mahindra 1626.

Which has more PTO horsepower, the Mahindra 1626 or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on pto hp at 21.7 hp hp, compared to 19 hp hp for the Mahindra 1626.

Which is heavier, the Mahindra 1626 or the Mahindra Max 26XL?

The Mahindra 1626 leads on weight at 3,041 lb lb, compared to 2,600 lb lb for the Mahindra Max 26XL.

Which has more loader lift capacity, the Mahindra 1626 or the Mahindra Max 26XL?

The Mahindra 1626 leads on loader lift at 1,653 lb lb, compared to 1,402 lb lb for the Mahindra Max 26XL.

Which has more three-point hitch lift capacity, the Mahindra 1626 or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on 3-pt lift (24 in) at 2,315 lb lb, compared to 1,720 lb lb for the Mahindra 1626.
