Mahindra 1640 vs Mahindra 1640 Shuttle

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 1640 Shuttle leads 2 categories to 1 (6 tied). Machine pages: Mahindra 1640 and Mahindra 1640 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1640	Mahindra 1640 Shuttle
Engine HP (hp)	38.7 hp	38.7 hp
PTO HP (hp)	27.7 hp	▲ 29.9 hp
Weight (lb)	3,175 lb	▲ 3,186 lb
Loader Lift (lb)	1,830 lb	1,830 lb
3-Pt Lift (24 in) (lb)	1,720 lb	1,720 lb
Lift Height (in)	92 in	92 in
Breakout Force (lbf)	2,777 lbf	2,777 lbf
Hydraulic Flow (gpm)	11.1 gpm	11.1 gpm
Travel Speed (mph)	▲ 14.8 mph	13.6 mph

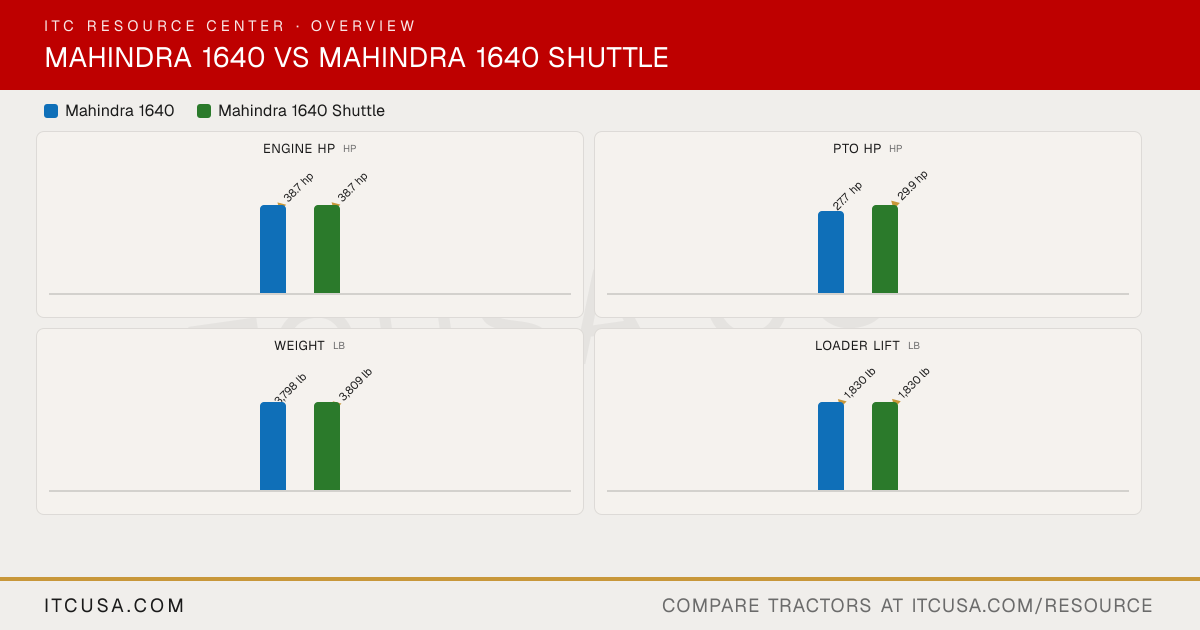

The headline numbers at a glance.

Mahindra 1640Mahindra 1640 Shuttle

Engine HPhp

▲38.7 hp

PTO HPhp

27.7 hp

▲29.9 hp

Weightlb

3,175 lb

▲3,186 lb

Loader Liftlb

▲1,830 lb

3-Pt Lift (24 in)lb

▲1,720 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1640	Mahindra1640 Shuttle


Engine Manufacturer	Mahindra	Mahindra
Engine Model	CE-38	CE-38
Engine Type	Four-stroke, naturally aspirated, direct injection, water cooled diesel	Four-stroke, naturally aspirated, direct injection, water cooled diesel
No. of Cylinders	4	4
Displacement	166.7 in³	166.7 in³
Rated Engine Speed	2400 rpm	2400 rpm
Engine Power (Gross)	38.7 hp	38.7 hp
PTO Power	27.7 hp	29.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Direct injection
Alternator	90 A, 12 V	90 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.7 gpm	7.7 gpm
Steering Flow	3.4 gpm	3.4 gpm
Total Hydraulic Flow	11.1 gpm	11.1 gpm
Overall Hydraulic Pump Flow	11.1 gpm	11.1 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.7 gal	7.7 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Live with o/r clutch	Independent
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2000 rpm @ 2526 rpm	Optional; 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers & Flex Links	CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity	2646 lb	2646 lb
Hitch Lift Capacity (at 24”)	1720 lb	1720 lb
Lift Control Type	Position control	Position control

Transmission Type	HST, 3 ranges	Constant mesh on gearshift and synchromesh on F-R shuttle
No. of Speeds	Infinite / 3 Ranges	8F / 8R
Max Travel Speed (Forward)	14.8 mph	13.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Brakes	Wet Disc	Wet Disc
Seat Suspension & Adjustability	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	127.8 in	127.8 in
Overall Width	62 in	62 in
Wheelbase	76.9 in	76.9 in
Ground Clearance	12.8 in	12.8 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	91.5 in	91.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,175 lb	3,186 lb
Weight with ROPS and Loader	3798 lb	3809 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural - Front	7 x 16	7 x 16
R1 Agricultural - Rear	11.2 x 24	11.2 x 24
R3 Turf - Front	27 x 10.5-15	27 x 10.5-15
R3 Turf - Rear	41 x 14-20	41 x 14-20
R4 Industrial - Front	28 x 8.5-15	28 x 8.5-15
R4 Industrial - Rear	43 x 16-20	43 x 16-20

Quick Attach Loader System	Front loader with skid-steer couplers for superfast hookups	Front loader with skid-steer couplers for superfast hookups
Loader Model	1640L (64 in bucket)	1640L (64 in bucket)
Loader Lift Height	1640L: 92 in	1640L: 92 in
Loader Lift Capacity (Full Height)	1640L: 1,830 lb	1640L: 1,830 lb
Loader Breakout Force	1640L: 2,777 lb	1640L: 2,777 lb

Warranty Length & Coverage	7-year/3,000-hour, $0 deductible limited powertrain warranty	7-year/3,000-hour, $0 deductible limited powertrain warranty

Find a Mahindra dealer near you

Mahindra 1640 vs Mahindra 1640 Shuttle: Quick Answers

Which has more horsepower, the Mahindra 1640 or the Mahindra 1640 Shuttle?: They are effectively tied: both machines are rated at 38.7 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 1640 or the Mahindra 1640 Shuttle?: The Mahindra 1640 Shuttle leads on pto hp at 29.9 hp hp, compared to 27.7 hp hp for the Mahindra 1640.
Which is heavier, the Mahindra 1640 or the Mahindra 1640 Shuttle?: The Mahindra 1640 Shuttle leads on weight at 3,186 lb lb, compared to 3,175 lb lb for the Mahindra 1640.
Which has more loader lift capacity, the Mahindra 1640 or the Mahindra 1640 Shuttle?: They are effectively tied: both machines are rated at 1,830 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra 1640 or the Mahindra 1640 Shuttle?: They are effectively tied: both machines are rated at 1,720 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Mahindra 1640	Mahindra 1640 Shuttle
Engine HP (hp)	38.7 hp	38.7 hp
PTO HP (hp)	27.7 hp	▲ 29.9 hp
Weight (lb)	3,175 lb	▲ 3,186 lb
Loader Lift (lb)	1,830 lb	1,830 lb
3-Pt Lift (24 in) (lb)	1,720 lb	1,720 lb
Lift Height (in)	92 in	92 in
Breakout Force (lbf)	2,777 lbf	2,777 lbf
Hydraulic Flow (gpm)	11.1 gpm	11.1 gpm
Travel Speed (mph)	▲ 14.8 mph	13.6 mph

The headline numbers at a glance.

Mahindra 1640Mahindra 1640 Shuttle

Engine HPhp

▲38.7 hp

PTO HPhp

27.7 hp

▲29.9 hp

Weightlb

3,175 lb

▲3,186 lb

Loader Liftlb

▲1,830 lb

3-Pt Lift (24 in)lb

▲1,720 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1640	Mahindra1640 Shuttle


Engine Manufacturer	Mahindra	Mahindra
Engine Model	CE-38	CE-38
Engine Type	Four-stroke, naturally aspirated, direct injection, water cooled diesel	Four-stroke, naturally aspirated, direct injection, water cooled diesel
No. of Cylinders	4	4
Displacement	166.7 in³	166.7 in³
Rated Engine Speed	2400 rpm	2400 rpm
Engine Power (Gross)	38.7 hp	38.7 hp
PTO Power	27.7 hp	29.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Direct injection
Alternator	90 A, 12 V	90 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.7 gpm	7.7 gpm
Steering Flow	3.4 gpm	3.4 gpm
Total Hydraulic Flow	11.1 gpm	11.1 gpm
Overall Hydraulic Pump Flow	11.1 gpm	11.1 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	7.7 gal	7.7 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Live with o/r clutch	Independent
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2000 rpm @ 2526 rpm	Optional; 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers & Flex Links	CAT I with Telescoping Stabilizers & Flex Links
Hitch Lift Capacity	2646 lb	2646 lb
Hitch Lift Capacity (at 24”)	1720 lb	1720 lb
Lift Control Type	Position control	Position control

Transmission Type	HST, 3 ranges	Constant mesh on gearshift and synchromesh on F-R shuttle
No. of Speeds	Infinite / 3 Ranges	8F / 8R
Max Travel Speed (Forward)	14.8 mph	13.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Brakes	Wet Disc	Wet Disc
Seat Suspension & Adjustability	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	127.8 in	127.8 in
Overall Width	62 in	62 in
Wheelbase	76.9 in	76.9 in
Ground Clearance	12.8 in	12.8 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	91.5 in	91.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,175 lb	3,186 lb
Weight with ROPS and Loader	3798 lb	3809 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	R1 Agriculture, R3 Turf, R4 Industrial
R1 Agricultural - Front	7 x 16	7 x 16
R1 Agricultural - Rear	11.2 x 24	11.2 x 24
R3 Turf - Front	27 x 10.5-15	27 x 10.5-15
R3 Turf - Rear	41 x 14-20	41 x 14-20
R4 Industrial - Front	28 x 8.5-15	28 x 8.5-15
R4 Industrial - Rear	43 x 16-20	43 x 16-20

Quick Attach Loader System	Front loader with skid-steer couplers for superfast hookups	Front loader with skid-steer couplers for superfast hookups
Loader Model	1640L (64 in bucket)	1640L (64 in bucket)
Loader Lift Height	1640L: 92 in	1640L: 92 in
Loader Lift Capacity (Full Height)	1640L: 1,830 lb	1640L: 1,830 lb
Loader Breakout Force	1640L: 2,777 lb	1640L: 2,777 lb

Warranty Length & Coverage	7-year/3,000-hour, $0 deductible limited powertrain warranty	7-year/3,000-hour, $0 deductible limited powertrain warranty

Find a Mahindra dealer near you

Mahindra 1640 vs Mahindra 1640 Shuttle: Quick Answers

Which has more horsepower, the Mahindra 1640 or the Mahindra 1640 Shuttle?

They are effectively tied: both machines are rated at 38.7 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 1640 or the Mahindra 1640 Shuttle?

The Mahindra 1640 Shuttle leads on pto hp at 29.9 hp hp, compared to 27.7 hp hp for the Mahindra 1640.

Which is heavier, the Mahindra 1640 or the Mahindra 1640 Shuttle?

The Mahindra 1640 Shuttle leads on weight at 3,186 lb lb, compared to 3,175 lb lb for the Mahindra 1640.

Which has more loader lift capacity, the Mahindra 1640 or the Mahindra 1640 Shuttle?

They are effectively tied: both machines are rated at 1,830 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra 1640 or the Mahindra 1640 Shuttle?

They are effectively tied: both machines are rated at 1,720 lb lb for 3-pt lift (24 in).
