Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Mahindra 1640 Shuttle, 4 to the Mahindra 2538. Machine pages: Mahindra 1640 Shuttle and Mahindra 2538 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

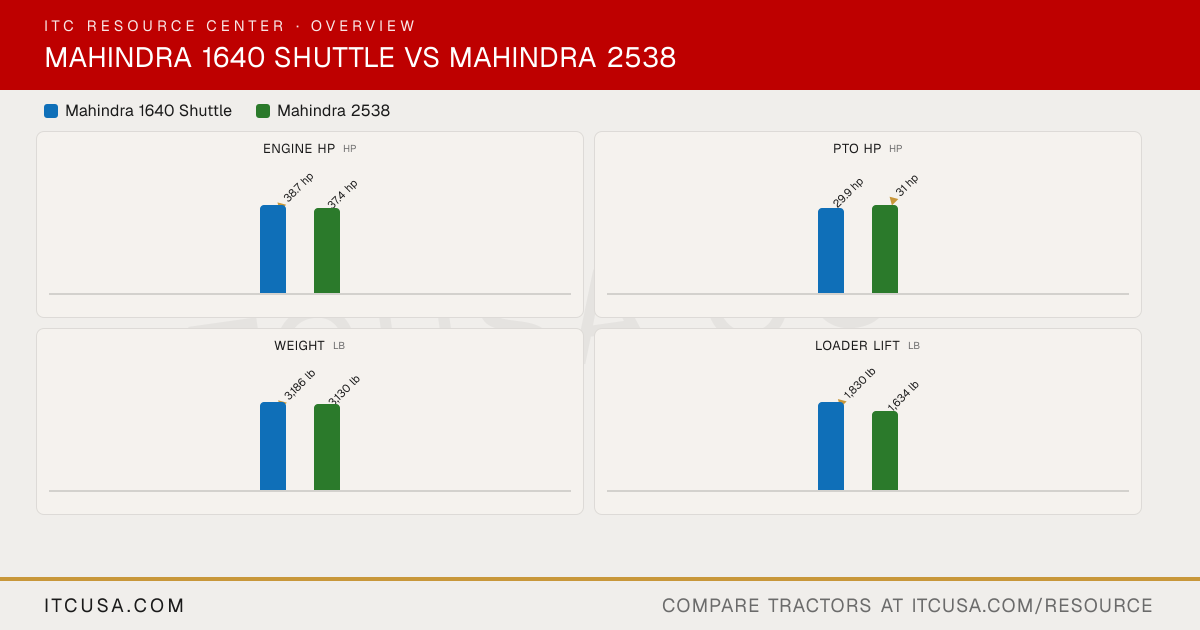

Category Verdict Spec Mahindra 1640 Shuttle Mahindra 2538 Engine HP (hp) ▲ 38.7 hp37.4 hp PTO HP (hp) 29.9 hp ▲ 31 hpWeight (lb) ▲ 3,186 lb3,130 lb Loader Lift (lb) ▲ 1,830 lb1,634 lb 3-Pt Lift (24 in) (lb) 1,720 lb ▲ 2,646 lbLift Height (in) 92 in ▲ 101.4 inBreakout Force (lbf) ▲ 2,777 lbf2,696 lbf Hydraulic Flow (gpm) 11.1 gpm ▲ 11.7 gpmTravel Speed (mph) 13.6 mph n/a
Overview Loader Work PTO Work
The headline numbers at a glance.
Mahindra 1640 Shuttle Mahindra 2538
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Mahindra 1640 Shuttle Mahindra 2538
▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model CE-38 Not Published Engine Type Four-stroke, naturally aspirated, direct injection, water cooled diesel Four stroke, naturally aspirated, common rail, direct injection, water-cooled diesel No. of Cylinders 4 4 Displacement 166.7 in³ 167 in³ Rated Engine Speed 2400 rpm 2400 rpm Engine Power (Gross) 38.7 hp 37.4 hp PTO Power 29.9 hp 31 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water-cooled Air Cleaner Not Published Not Published Fuel System Direct injection Common rail direct injection (mCRD) Alternator 90 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 7.7 gpm 7.6 gpm Steering Flow 3.4 gpm 4.1 gpm Total Hydraulic Flow 11.1 gpm 11.7 gpm (7.6 + 4.1, computed) Overall Hydraulic Pump Flow 11.1 gpm Not Published Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 1 or 2 ▶ Fluid CapacityFuel Tank Capacity 7.7 gal 9.0 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm @ 2376 rpm 540 rpm @ 2400 rpm Mid-PTO Availability Optional; 2000 rpm @ 2526 rpm Not Published Category, 3-Point Hitch CAT I with Telescoping Stabilizers & Flex Links CAT I with check chains (2538 HST); CAT I with telescoping stabilizers and flex link ends (2538 HST Cab) Hitch Lift Capacity 2646 lb 2646 lb Hitch Lift Capacity (at 24”) 1720 lb Not Published Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Constant mesh on gearshift and synchromesh on F-R shuttle HST, 3 range No. of Speeds 8F / 8R Infinite, 3 ranges Max Travel Speed (Forward) 13.6 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry-Single Multiple wet disc Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic power steering, tilt Brakes Wet Disc Wet disc Seat Suspension & Adjustability mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt Adjustable suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 127.8 in 119.3 in (2538 HST); 121.2 in (2538 HST Cab) Overall Width 62 in 59.8 in Wheelbase 76.9 in Not Published Ground Clearance 12.8 in Not Published Min. Turn Radius without Brakes 9.2 ft (with brake applied) 7.87 ft Height to Top of ROPS 91.5 in 94.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 92.5 in ▶ WeightTractor Weight (Base) 3,186 lb 3130 lb (2538 HST); 3351 lb (2538 HST Cab) Weight with ROPS and Loader 3809 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agriculture, R3 Turf, R4 Industrial Ag, Industrial R1 Agricultural - Front 7 x 16 7-16 R1 Agricultural - Rear 11.2 x 24 11.2-24 R3 Turf - Front 27 x 10.5-15 Not Published R3 Turf - Rear 41 x 14-20 Not Published R4 Industrial - Front 28 x 8.5-15 10-16.5 R4 Industrial - Rear 43 x 16-20 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System Front loader with skid-steer couplers for superfast hookups Not Published Loader Model 1640L (64 in bucket) 2538L Loader Lift Height 1640L: 92 in 2538L: 101.4 in Loader Lift Capacity (Full Height) 1640L: 1,830 lb 2538L: 1,634 lb Loader Breakout Force 1640L: 2,777 lb 2538L: 2,696 lb ▶ WarrantyWarranty Length & Coverage 7-year/3,000-hour, $0 deductible limited powertrain warranty 5-year powertrain warranty
Mahindra 1640 Shuttle vs Mahindra 2538: Quick Answers
Which has more horsepower, the Mahindra 1640 Shuttle or the Mahindra 2538? The Mahindra 1640 Shuttle leads on engine hp at 38.7 hp hp, compared to 37.4 hp hp for the Mahindra 2538.
Which has more PTO horsepower, the Mahindra 1640 Shuttle or the Mahindra 2538? The Mahindra 2538 leads on pto hp at 31 hp hp, compared to 29.9 hp hp for the Mahindra 1640 Shuttle.
Which is heavier, the Mahindra 1640 Shuttle or the Mahindra 2538? The Mahindra 1640 Shuttle leads on weight at 3,186 lb lb, compared to 3,130 lb lb for the Mahindra 2538.
Which has more loader lift capacity, the Mahindra 1640 Shuttle or the Mahindra 2538? The Mahindra 1640 Shuttle leads on loader lift at 1,830 lb lb, compared to 1,634 lb lb for the Mahindra 2538.
Which has more three-point hitch lift capacity, the Mahindra 1640 Shuttle or the Mahindra 2538? The Mahindra 2538 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,720 lb lb for the Mahindra 1640 Shuttle. More Head-to-Heads
