Mahindra 1640 Shuttle vs Mahindra 4035

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 4035 leads 9 categories to 0. Machine pages: Mahindra 1640 Shuttle and Mahindra 4035.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1640 Shuttle	Mahindra 4035
Engine HP (hp)	38.7 hp	▲ 40 hp
PTO HP (hp)	29.9 hp	▲ 33 hp
Weight (lb)	3,186 lb	▲ 4,367 lb
Loader Lift (lb)	1,830 lb	▲ 2,400 lb
3-Pt Lift (24 in) (lb)	1,720 lb	▲ 3,090 lb
Lift Height (in)	92 in	▲ 106 in
Breakout Force (lbf)	2,777 lbf	▲ 3,900 lbf
Hydraulic Flow (gpm)	11.1 gpm	▲ 16 gpm
Travel Speed (mph)	13.6 mph	▲ 16.5 mph

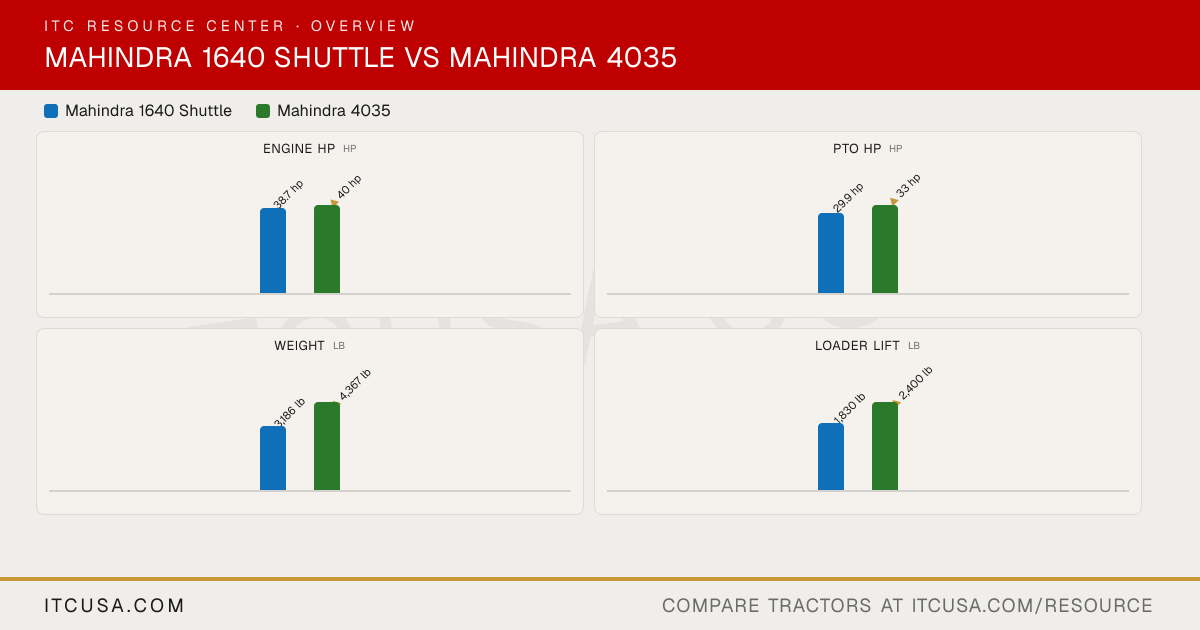

The headline numbers at a glance.

Mahindra 1640 ShuttleMahindra 4035

Engine HPhp

38.7 hp

▲40 hp

PTO HPhp

29.9 hp

▲33 hp

Weightlb

3,186 lb

▲4,367 lb

Loader Liftlb

1,830 lb

▲2,400 lb

3-Pt Lift (24 in)lb

1,720 lb

▲3,090 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1640 Shuttle	Mahindra4035


Engine Manufacturer	Mahindra	Mahindra
Engine Model	CE-38	CE 40
Engine Type	Four-stroke, naturally aspirated, direct injection, water cooled diesel	Naturally aspirated direct injection diesel
No. of Cylinders	4	3
Displacement	166.7 in³	115.4 in³
Rated Engine Speed	2400 rpm	2800 rpm
Engine Power (Gross)	38.7 hp	40 hp
PTO Power	29.9 hp	33 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry type with safety cartridge and automatic dust unloading
Fuel System	Direct injection	Direct injection
Alternator	90 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.7 gpm	11 gpm
Steering Flow	3.4 gpm	5 gpm
Total Hydraulic Flow	11.1 gpm	16 gpm (11 + 5, computed)
Overall Hydraulic Pump Flow	11.1 gpm	Not Published
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	1	Two-spool valve optional (dealer kit)

Fuel Tank Capacity	7.7 gal	11.3 gal
Coolant Capacity	Not Published	7.4 qt (4035 4WD HST)
Crankcase Capacity	Not Published	6.32 qt (4035 4WD HST)
Transmission / Hydraulic System Capacity	Not Published	10.03 gal (4035 4WD HST)
Front Axle Fluid Capacity	Not Published	8.96 qt (4035 4WD HST)

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2404 rpm
Mid-PTO Availability	Optional; 2000 rpm @ 2526 rpm	Not Published
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers & Flex Links	CAT I with telescopic lower links
Hitch Lift Capacity	2646 lb	3090 lb
Hitch Lift Capacity (at 24”)	1720 lb	Not Published
Lift Control Type	Position control	Position and draft control

Transmission Type	Constant mesh on gearshift and synchromesh on F-R shuttle	Forward/reverse synchro shuttle with full synchro mesh (4035 4WD Shuttle); Forward/reverse synchro shuttle with full synchro mesh (4035 4WD PST); HST, 3 ranges (4035 4WD HST)
No. of Speeds	8F / 8R	12F/12R (4035 4WD Shuttle); 12F/12R (4035 4WD PST); Infinite, 3 ranges (4035 4WD HST)
Max Travel Speed (Forward)	13.6 mph	16.5 mph (4035 4WD Shuttle); 16.5 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)
Max Travel Speed (Reverse)	Not Published	15.6 mph (4035 4WD Shuttle); 15.6 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)
Clutch	Dry-Single	Single plate dry (4035 4WD Shuttle); Wet (4035 4WD PST); N/A (4035 4WD HST)
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering, tilt
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt	Deluxe suspension seat with back angle and weight adjustment, retractable seat belt and arm rests
Front Axle Type	Not Published	Mechanical front wheel drive (MFWD) with bevel gear final reduction
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	127.8 in	123.8 in
Overall Width	62 in	73.7 in
Wheelbase	76.9 in	70.87 in (4035 4WD HST)
Ground Clearance	12.8 in	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	11.3 ft (4035 4WD HST)
Height to Top of ROPS	91.5 in	98.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,186 lb	4367 lb (4035 4WD Shuttle); 4367 lb (4035 4WD PST); 4817 lb (4035 4WD HST)
Weight with ROPS and Loader	3809 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	Ag, Industrial, Turf
R1 Agricultural - Front	7 x 16	9.5-16
R1 Agricultural - Rear	11.2 x 24	14.9-24
R3 Turf - Front	27 x 10.5-15	29x12.50-15
R3 Turf - Rear	41 x 14-20	44x18-20
R4 Industrial - Front	28 x 8.5-15	12-16.5
R4 Industrial - Rear	43 x 16-20	16.9-24

Quick Attach Loader System	Front loader with skid-steer couplers for superfast hookups	Not Published
Loader Model	1640L (64 in bucket)	ML120
Loader Lift Height	1640L: 92 in	ML120: 106 in
Loader Lift Capacity (Full Height)	1640L: 1,830 lb	ML120: 2,400 lb
Loader Breakout Force	1640L: 2,777 lb	ML120: 3,900 lb

Warranty Length & Coverage	7-year/3,000-hour, $0 deductible limited powertrain warranty	5-year limited warranty

Find a Mahindra dealer near you

Mahindra 1640 Shuttle vs Mahindra 4035: Quick Answers

Which has more horsepower, the Mahindra 1640 Shuttle or the Mahindra 4035?: The Mahindra 4035 leads on engine hp at 40 hp hp, compared to 38.7 hp hp for the Mahindra 1640 Shuttle.
Which has more PTO horsepower, the Mahindra 1640 Shuttle or the Mahindra 4035?: The Mahindra 4035 leads on pto hp at 33 hp hp, compared to 29.9 hp hp for the Mahindra 1640 Shuttle.
Which is heavier, the Mahindra 1640 Shuttle or the Mahindra 4035?: The Mahindra 4035 leads on weight at 4,367 lb lb, compared to 3,186 lb lb for the Mahindra 1640 Shuttle.
Which has more loader lift capacity, the Mahindra 1640 Shuttle or the Mahindra 4035?: The Mahindra 4035 leads on loader lift at 2,400 lb lb, compared to 1,830 lb lb for the Mahindra 1640 Shuttle.
Which has more three-point hitch lift capacity, the Mahindra 1640 Shuttle or the Mahindra 4035?: The Mahindra 4035 leads on 3-pt lift (24 in) at 3,090 lb lb, compared to 1,720 lb lb for the Mahindra 1640 Shuttle.

More Head-to-Heads

Category Verdict

Spec	Mahindra 1640 Shuttle	Mahindra 4035
Engine HP (hp)	38.7 hp	▲ 40 hp
PTO HP (hp)	29.9 hp	▲ 33 hp
Weight (lb)	3,186 lb	▲ 4,367 lb
Loader Lift (lb)	1,830 lb	▲ 2,400 lb
3-Pt Lift (24 in) (lb)	1,720 lb	▲ 3,090 lb
Lift Height (in)	92 in	▲ 106 in
Breakout Force (lbf)	2,777 lbf	▲ 3,900 lbf
Hydraulic Flow (gpm)	11.1 gpm	▲ 16 gpm
Travel Speed (mph)	13.6 mph	▲ 16.5 mph

The headline numbers at a glance.

Mahindra 1640 ShuttleMahindra 4035

Engine HPhp

38.7 hp

▲40 hp

PTO HPhp

29.9 hp

▲33 hp

Weightlb

3,186 lb

▲4,367 lb

Loader Liftlb

1,830 lb

▲2,400 lb

3-Pt Lift (24 in)lb

1,720 lb

▲3,090 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1640 Shuttle	Mahindra4035


Engine Manufacturer	Mahindra	Mahindra
Engine Model	CE-38	CE 40
Engine Type	Four-stroke, naturally aspirated, direct injection, water cooled diesel	Naturally aspirated direct injection diesel
No. of Cylinders	4	3
Displacement	166.7 in³	115.4 in³
Rated Engine Speed	2400 rpm	2800 rpm
Engine Power (Gross)	38.7 hp	40 hp
PTO Power	29.9 hp	33 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry type with safety cartridge and automatic dust unloading
Fuel System	Direct injection	Direct injection
Alternator	90 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.7 gpm	11 gpm
Steering Flow	3.4 gpm	5 gpm
Total Hydraulic Flow	11.1 gpm	16 gpm (11 + 5, computed)
Overall Hydraulic Pump Flow	11.1 gpm	Not Published
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	1	Two-spool valve optional (dealer kit)

Fuel Tank Capacity	7.7 gal	11.3 gal
Coolant Capacity	Not Published	7.4 qt (4035 4WD HST)
Crankcase Capacity	Not Published	6.32 qt (4035 4WD HST)
Transmission / Hydraulic System Capacity	Not Published	10.03 gal (4035 4WD HST)
Front Axle Fluid Capacity	Not Published	8.96 qt (4035 4WD HST)

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2404 rpm
Mid-PTO Availability	Optional; 2000 rpm @ 2526 rpm	Not Published
Category, 3-Point Hitch	CAT I with Telescoping Stabilizers & Flex Links	CAT I with telescopic lower links
Hitch Lift Capacity	2646 lb	3090 lb
Hitch Lift Capacity (at 24”)	1720 lb	Not Published
Lift Control Type	Position control	Position and draft control

Transmission Type	Constant mesh on gearshift and synchromesh on F-R shuttle	Forward/reverse synchro shuttle with full synchro mesh (4035 4WD Shuttle); Forward/reverse synchro shuttle with full synchro mesh (4035 4WD PST); HST, 3 ranges (4035 4WD HST)
No. of Speeds	8F / 8R	12F/12R (4035 4WD Shuttle); 12F/12R (4035 4WD PST); Infinite, 3 ranges (4035 4WD HST)
Max Travel Speed (Forward)	13.6 mph	16.5 mph (4035 4WD Shuttle); 16.5 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)
Max Travel Speed (Reverse)	Not Published	15.6 mph (4035 4WD Shuttle); 15.6 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)
Clutch	Dry-Single	Single plate dry (4035 4WD Shuttle); Wet (4035 4WD PST); N/A (4035 4WD HST)
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering, tilt
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt	Deluxe suspension seat with back angle and weight adjustment, retractable seat belt and arm rests
Front Axle Type	Not Published	Mechanical front wheel drive (MFWD) with bevel gear final reduction
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	127.8 in	123.8 in
Overall Width	62 in	73.7 in
Wheelbase	76.9 in	70.87 in (4035 4WD HST)
Ground Clearance	12.8 in	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	11.3 ft (4035 4WD HST)
Height to Top of ROPS	91.5 in	98.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,186 lb	4367 lb (4035 4WD Shuttle); 4367 lb (4035 4WD PST); 4817 lb (4035 4WD HST)
Weight with ROPS and Loader	3809 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	Ag, Industrial, Turf
R1 Agricultural - Front	7 x 16	9.5-16
R1 Agricultural - Rear	11.2 x 24	14.9-24
R3 Turf - Front	27 x 10.5-15	29x12.50-15
R3 Turf - Rear	41 x 14-20	44x18-20
R4 Industrial - Front	28 x 8.5-15	12-16.5
R4 Industrial - Rear	43 x 16-20	16.9-24

Quick Attach Loader System	Front loader with skid-steer couplers for superfast hookups	Not Published
Loader Model	1640L (64 in bucket)	ML120
Loader Lift Height	1640L: 92 in	ML120: 106 in
Loader Lift Capacity (Full Height)	1640L: 1,830 lb	ML120: 2,400 lb
Loader Breakout Force	1640L: 2,777 lb	ML120: 3,900 lb

Warranty Length & Coverage	7-year/3,000-hour, $0 deductible limited powertrain warranty	5-year limited warranty

Find a Mahindra dealer near you

Mahindra 1640 Shuttle vs Mahindra 4035: Quick Answers

Which has more horsepower, the Mahindra 1640 Shuttle or the Mahindra 4035?

The Mahindra 4035 leads on engine hp at 40 hp hp, compared to 38.7 hp hp for the Mahindra 1640 Shuttle.

Which has more PTO horsepower, the Mahindra 1640 Shuttle or the Mahindra 4035?

The Mahindra 4035 leads on pto hp at 33 hp hp, compared to 29.9 hp hp for the Mahindra 1640 Shuttle.

Which is heavier, the Mahindra 1640 Shuttle or the Mahindra 4035?

The Mahindra 4035 leads on weight at 4,367 lb lb, compared to 3,186 lb lb for the Mahindra 1640 Shuttle.

Which has more loader lift capacity, the Mahindra 1640 Shuttle or the Mahindra 4035?

The Mahindra 4035 leads on loader lift at 2,400 lb lb, compared to 1,830 lb lb for the Mahindra 1640 Shuttle.

Which has more three-point hitch lift capacity, the Mahindra 1640 Shuttle or the Mahindra 4035?

The Mahindra 4035 leads on 3-pt lift (24 in) at 3,090 lb lb, compared to 1,720 lb lb for the Mahindra 1640 Shuttle.
