Mahindra 2123 vs Mahindra Max 25XL

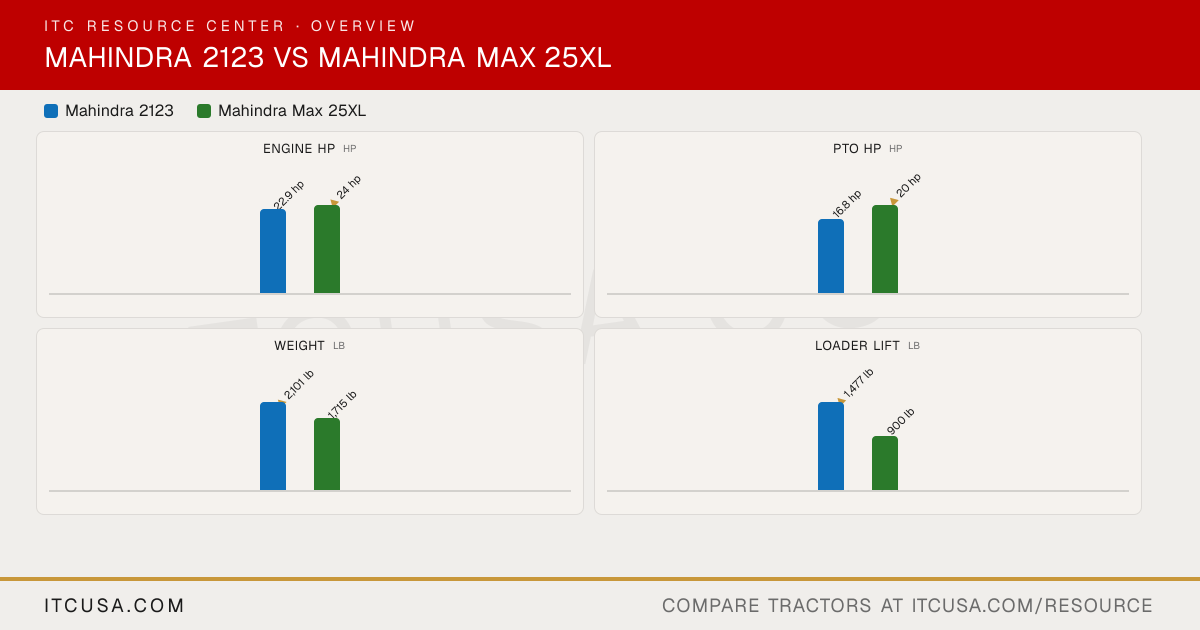

Across 8 measurable specs, the Mahindra 2123 leads 6 categories to 2. Machine pages: Mahindra 2123 and Mahindra Max 25XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra2123	MahindraMax 25XL

▶Engine
Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	MVS3L2	S3L2
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	22.9 hp	24 hp
PTO Power	16.8 hp	20 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water Cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Indirect Injection
Alternator	55 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	6.3 gpm	4.6 gpm
Steering Flow	5.0 gpm	Not Published
Total Hydraulic Flow	11.2 gpm	7.3 gpm
Overall Hydraulic Pump Flow	11.2 gpm	7.3 gpm
Hydraulic System Type	Open center, full-live hydraulic with position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1 or 2 (single or dual)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	6.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Live	Live
PTO Rear	540 rpm @ 2376 rpm	540 @ 2376 rpm
Mid-PTO Availability	Available; 2500 @ 2500	Standard; 2000 @ 2556 rpm
Category, 3-Point Hitch	CAT I with Telescoping stabilizers	CAT I
Hitch Lift Capacity	Not Published	1354 lb
Hitch Lift Capacity (at 24”)	1760 lb	Not Published
Lift Control Type	Position Control	Not Published
▶Transmission & Drivetrain
Transmission Type	HST	HST - 2 ranges
No. of Speeds	Infinite / 3 Ranges	Infinite
Max Travel Speed (Forward)	11.2 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dry - Single
Differential Lock & Limited Slip Options	Not Published	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Not Published
Brakes	Two Pedal	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	2425 lb	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	112.7 in	106.1 in
Overall Width	54.4 in	50.7 in
Wheelbase	61.4 in	58.2 in
Ground Clearance	13.4 in	7.2 in
Min. Turn Radius without Brakes	8.2 ft	7.2 ft
Height to Top of ROPS	93.6 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.4 in	Not Published
▶Weight
Tractor Weight (Base)	2101 lb (open station); 2607 lb (cab)	1715 lb
Weight with ROPS and Loader	2557 lb	Not Published
Weight with Cab and Loader	3063 lb	Not Published
▶Tire Options
Tire Size & Options	R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	Not Published	6x12
R1 Agricultural - Rear	Not Published	9.5x16
R3 Turf - Front	8.5x14	20x8-10
R3 Turf - Rear	13.5-16	29x12.5-15
R4 Industrial - Front	8.5x14	20x8-10
R4 Industrial - Rear	12.4-16	27x12.5-15
▶Loader & Attachments
Quick Attach Loader System	L21: Skid-steer couplers for superfast hookups	Not Published
Loader Model	L21 (55 in bucket)	MXL25L
Loader Lift Height	L21: 77 in	MXL25L: 75 in
Loader Lift Capacity (Full Height)	L21: 1,477 lb	MXL25L: 900 lb (at pivot pin)
Loader Breakout Force	L21: 2,160 lb	MXL25L: 2000 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
▶ITC Company Accessories
Accessories that fit	None tagged yet	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99

Find a Mahindra dealer near you→

Mahindra 2123 vs Mahindra Max 25XL: Quick Answers

Which has more horsepower, the Mahindra 2123 or the Mahindra Max 25XL?

The Mahindra Max 25XL leads on engine hp at 24 hp hp, compared to 22.9 hp hp for the Mahindra 2123.

Which has more PTO horsepower, the Mahindra 2123 or the Mahindra Max 25XL?

The Mahindra Max 25XL leads on pto hp at 20 hp hp, compared to 16.8 hp hp for the Mahindra 2123.

Which is heavier, the Mahindra 2123 or the Mahindra Max 25XL?

The Mahindra 2123 leads on weight at 2,101 lb lb, compared to 1,715 lb lb for the Mahindra Max 25XL.

Which has more loader lift capacity, the Mahindra 2123 or the Mahindra Max 25XL?

The Mahindra 2123 leads on loader lift at 1,477 lb lb, compared to 900 lb lb for the Mahindra Max 25XL.

Which has more three-point hitch lift capacity, the Mahindra 2123 or the Mahindra Max 25XL?

The Mahindra 2123 leads on 3-pt lift (24 in) at 1,760 lb lb, compared to 1,354 lb lb for the Mahindra Max 25XL.
