Mahindra 2545 vs Mahindra 4540

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 4540 leads 6 categories to 2. Machine pages: Mahindra 2545 and Mahindra 4540.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 2545	Mahindra 4540
Engine HP (hp)	▲ 44 hp	41 hp
PTO HP (hp)	▲ 39 hp	31 hp
Weight (lb)	3,285 lb	▲ 4,191 lb
Loader Lift (lb)	2,041 lb	▲ 2,866 lb
3-Pt Lift (24 in) (lb)	2,646 lb	▲ 3,525 lb
Lift Height (in)	101.9 in	▲ 116.6 in
Breakout Force (lbf)	3,430 lbf	▲ 4,978 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 8.7 gpm

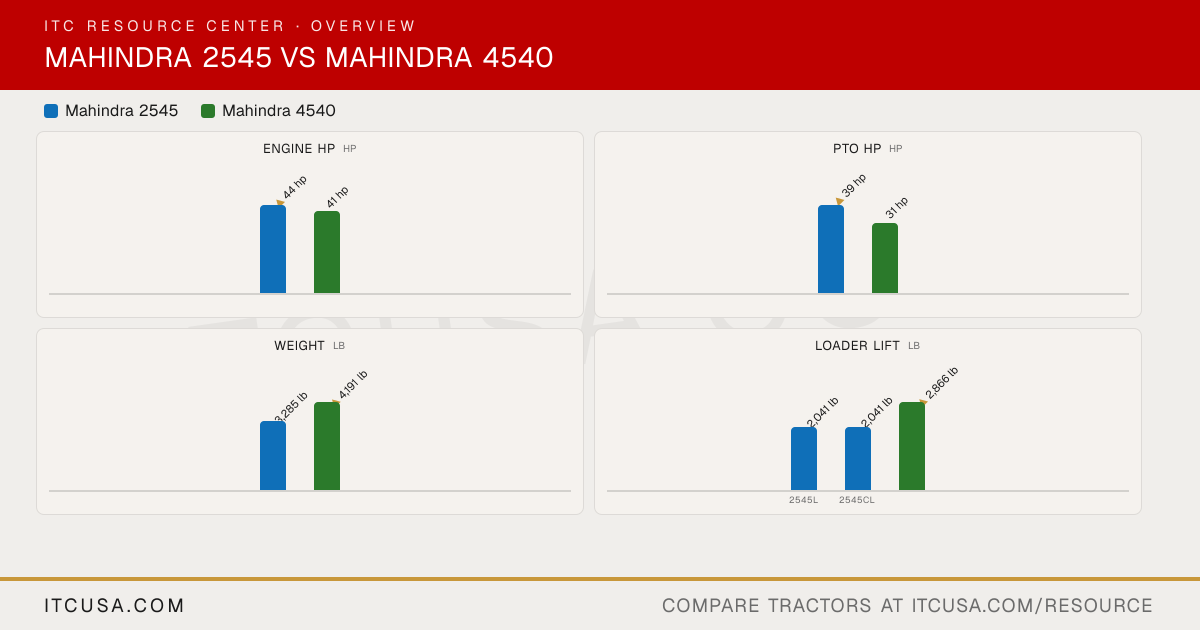

The headline numbers at a glance.

Mahindra 2545Mahindra 4540

Engine HPhp

▲44 hp

41 hp

PTO HPhp

▲39 hp

31 hp

Weightlb

3,285 lb

▲4,191 lb

Loader Liftlb

2,041 lb

▲2,866 lb

2545L2545CL

3-Pt Lift (24 in)lb

2,646 lb

▲3,525 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra2545	Mahindra4540


Engine Manufacturer	Mahindra	Mahindra
Engine Model	Not Published	Not Published
Engine Type	Naturally aspirated direct-injection diesel	Four-stroke, direct-injection water-cooled, diesel
No. of Cylinders	4	4
Displacement	166.7 in³	166.7 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	44 hp	41 hp
PTO Power	39 hp	31 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Direct injection
Alternator	OOS: 45 A, 12 V; Cab: 90 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.7 gpm
Steering Flow	OOS: 4.1 gpm; Cab: 4.5 gpm	5.8 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open Center with position control	Open center, full-live hydraulic, with position and draft control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None
No. of Optional Remote Valves	1 spool optional	1

Fuel Tank Capacity	9.0 gal	14.55 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm @ 2650 rpm	540 rpm @ 2058 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I with check chains	Category I & II adjustable, with telescopic stabilizers
Hitch Lift Capacity	2,646 lb	3,525 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Position & draft control

Transmission Type	Synchro shuttle with partial synchromesh	Sliding mesh
No. of Speeds	12F/12R	8F / 2R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single plate, dry	Dual
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering, tilt	Hydrostatic power steering
Brakes	Wet disc	Fully enclosed dry disc
Seat Suspension & Adjustability	Not Published	mComfort mechanical suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	63.2 in	69.4 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	7.87 ft	9.7 ft (with brake applied)
Height to Top of ROPS	94.4 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.4 in	Not Published
Overall Length	119.3 in	115.3 in

Tractor Weight (Base)	3,285 lb (2545 Shuttle, operating weight); 3,506 lb (2545 Shuttle Cab, operating weight)	4,191 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Ag
R1 Agricultural - Front	8.3x16	6X16
R1 Agricultural - Rear	12.4x24	12.4X28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Applicable
R4 Industrial - Rear	Not Published	Not Applicable

Quick Attach Loader System	Not Published	Skid-steer style quick-attach coupler
Loader Model	2545L (open station); 2545CL (cab)	4550-2L
Loader Lift Height	2545L: 101.9 in; 2545CL: 101.9 in	116.6 in
Loader Lift Capacity (Full Height)	2545L: 2,041 lb; 2545CL: 2,041 lb	2,866 lb at pivot pins to full height
Loader Breakout Force	2545L: 3,430 lb; 2545CL: 3,430 lb	4,978 lb at pivot pins

Warranty Length & Coverage	Not Published	7-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra 2545 vs Mahindra 4540: Quick Answers

Which has more horsepower, the Mahindra 2545 or the Mahindra 4540?: The Mahindra 2545 leads on engine hp at 44 hp hp, compared to 41 hp hp for the Mahindra 4540.
Which has more PTO horsepower, the Mahindra 2545 or the Mahindra 4540?: The Mahindra 2545 leads on pto hp at 39 hp hp, compared to 31 hp hp for the Mahindra 4540.
Which is heavier, the Mahindra 2545 or the Mahindra 4540?: The Mahindra 4540 leads on weight at 4,191 lb lb, compared to 3,285 lb lb for the Mahindra 2545.
Which has more loader lift capacity, the Mahindra 2545 or the Mahindra 4540?: The Mahindra 4540 leads on loader lift at 2,866 lb lb, compared to 2,041 lb lb for the Mahindra 2545.
Which has more three-point hitch lift capacity, the Mahindra 2545 or the Mahindra 4540?: The Mahindra 4540 leads on 3-pt lift (24 in) at 3,525 lb lb, compared to 2,646 lb lb for the Mahindra 2545.

More Head-to-Heads

Category Verdict

Spec	Mahindra 2545	Mahindra 4540
Engine HP (hp)	▲ 44 hp	41 hp
PTO HP (hp)	▲ 39 hp	31 hp
Weight (lb)	3,285 lb	▲ 4,191 lb
Loader Lift (lb)	2,041 lb	▲ 2,866 lb
3-Pt Lift (24 in) (lb)	2,646 lb	▲ 3,525 lb
Lift Height (in)	101.9 in	▲ 116.6 in
Breakout Force (lbf)	3,430 lbf	▲ 4,978 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 8.7 gpm

The headline numbers at a glance.

Mahindra 2545Mahindra 4540

Engine HPhp

▲44 hp

41 hp

PTO HPhp

▲39 hp

31 hp

Weightlb

3,285 lb

▲4,191 lb

Loader Liftlb

2,041 lb

▲2,866 lb

2545L2545CL

3-Pt Lift (24 in)lb

2,646 lb

▲3,525 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra2545	Mahindra4540


Engine Manufacturer	Mahindra	Mahindra
Engine Model	Not Published	Not Published
Engine Type	Naturally aspirated direct-injection diesel	Four-stroke, direct-injection water-cooled, diesel
No. of Cylinders	4	4
Displacement	166.7 in³	166.7 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	44 hp	41 hp
PTO Power	39 hp	31 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Direct injection
Alternator	OOS: 45 A, 12 V; Cab: 90 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.7 gpm
Steering Flow	OOS: 4.1 gpm; Cab: 4.5 gpm	5.8 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open Center with position control	Open center, full-live hydraulic, with position and draft control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None
No. of Optional Remote Valves	1 spool optional	1

Fuel Tank Capacity	9.0 gal	14.55 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm @ 2650 rpm	540 rpm @ 2058 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I with check chains	Category I & II adjustable, with telescopic stabilizers
Hitch Lift Capacity	2,646 lb	3,525 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Position & draft control

Transmission Type	Synchro shuttle with partial synchromesh	Sliding mesh
No. of Speeds	12F/12R	8F / 2R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single plate, dry	Dual
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering, tilt	Hydrostatic power steering
Brakes	Wet disc	Fully enclosed dry disc
Seat Suspension & Adjustability	Not Published	mComfort mechanical suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	63.2 in	69.4 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	7.87 ft	9.7 ft (with brake applied)
Height to Top of ROPS	94.4 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94.4 in	Not Published
Overall Length	119.3 in	115.3 in

Tractor Weight (Base)	3,285 lb (2545 Shuttle, operating weight); 3,506 lb (2545 Shuttle Cab, operating weight)	4,191 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Ag
R1 Agricultural - Front	8.3x16	6X16
R1 Agricultural - Rear	12.4x24	12.4X28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Applicable
R4 Industrial - Rear	Not Published	Not Applicable

Quick Attach Loader System	Not Published	Skid-steer style quick-attach coupler
Loader Model	2545L (open station); 2545CL (cab)	4550-2L
Loader Lift Height	2545L: 101.9 in; 2545CL: 101.9 in	116.6 in
Loader Lift Capacity (Full Height)	2545L: 2,041 lb; 2545CL: 2,041 lb	2,866 lb at pivot pins to full height
Loader Breakout Force	2545L: 3,430 lb; 2545CL: 3,430 lb	4,978 lb at pivot pins

Warranty Length & Coverage	Not Published	7-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra 2545 vs Mahindra 4540: Quick Answers

Which has more horsepower, the Mahindra 2545 or the Mahindra 4540?

The Mahindra 2545 leads on engine hp at 44 hp hp, compared to 41 hp hp for the Mahindra 4540.

Which has more PTO horsepower, the Mahindra 2545 or the Mahindra 4540?

The Mahindra 2545 leads on pto hp at 39 hp hp, compared to 31 hp hp for the Mahindra 4540.

Which is heavier, the Mahindra 2545 or the Mahindra 4540?

The Mahindra 4540 leads on weight at 4,191 lb lb, compared to 3,285 lb lb for the Mahindra 2545.

Which has more loader lift capacity, the Mahindra 2545 or the Mahindra 4540?

The Mahindra 4540 leads on loader lift at 2,866 lb lb, compared to 2,041 lb lb for the Mahindra 2545.

Which has more three-point hitch lift capacity, the Mahindra 2545 or the Mahindra 4540?

The Mahindra 4540 leads on 3-pt lift (24 in) at 3,525 lb lb, compared to 2,646 lb lb for the Mahindra 2545.
