Across 8 measurable specs, the Mahindra 6530 leads 6 categories to 1 (1 tied). Machine pages: Mahindra 2565 and Mahindra 6530.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 2565 | Mahindra 6530 |
|---|
| Engine HP (hp) | 65 hp | 65 hp |
| PTO HP (hp) | 50 hp | ▲ 57 hp |
| Weight (lb) | 5,070 lb | ▲ 6,360 lb |
| Loader Lift (lb) | 3,122 lb | ▲ 4,205 lb |
| 3-Pt Lift (24 in) (lb) | 3,527 lb | ▲ 3,968 lb |
| Lift Height (in) | 115.4 in | ▲ 126 in |
| Breakout Force (lbf) | 5,225 lbf | ▲ 6,807 lbf |
| Hydraulic Flow (gpm) | ▲ 16.4 gpm | 11.4 gpm |

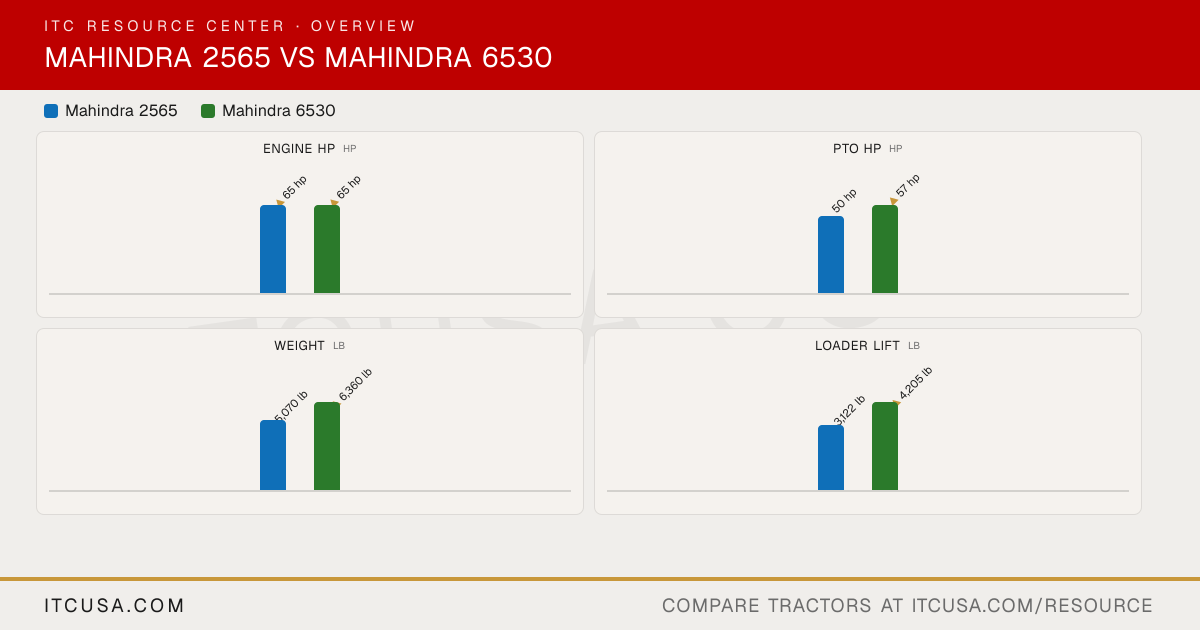

The headline numbers at a glance.
Mahindra 2565Mahindra 6530
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra2565 | Mahindra6530 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | Not Published | Not Published |
|---|
| Engine Type | Four stroke, direct injection, turbo-charged and intercooled diesel | Four stroke, direct injection, water-cooled, diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 161.5 in³ | 215.5 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 65 hp | 65 hp |
|---|
| PTO Power | 50 hp | 57 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Direct injection, turbocharged and intercooled (mCRD common rail) | Direct injection |
|---|
| Alternator | 90 A, 12 V | 36 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 11 gpm | 11.4 gpm |
|---|
| Steering Flow | 5.4 gpm | 4.8 gpm |
|---|
| Total Hydraulic Flow | 16.4 gpm (11 + 5.4, computed) | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open centre, full-live hydraulic with position and draft controls |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | 2 standard |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 16 gal | 17.1 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm @ 2300 rpm | 540 rpm @ 2058 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | CAT II with telescoping stabilizers and flex link ends | Category 1 & 2 with telescopic check chains |
|---|
| Hitch Lift Capacity | 3527 lb | 3968 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | Not Published |
|---|
| Lift Control Type | Position and draft control | Position and draft control |
|---|
|
|---|
| Transmission Type | Synchro shuttle with partial synchromesh | Forward-reverse synchro-shuttle with full synchromesh gearshift |
|---|
| No. of Speeds | 12F/12R | 8F/8R |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Single plate, dry | Dual |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering, tilt | Hydrostatic power |
|---|
| Brakes | Wet disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Adjustable suspension seat | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 142 in | 145 in |
|---|
| Overall Width | 71.5 in | 81 in |
|---|
| Wheelbase | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | 12.5 ft | 13.75 ft |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 99.2 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 5070 lb (2565 Shuttle Cab) | 6360 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Ag, Industrial, Turf | Not Published |
|---|
| R1 Agricultural - Front | 9.5x20 | Not Published |
|---|
| R1 Agricultural - Rear | 14.9x28 | Not Published |
|---|
| R3 Turf - Front | LSW305-521 | Not Published |
|---|
| R3 Turf - Rear | LSW570-648 | Not Published |
|---|
| R4 Industrial - Front | 10.5/80x18 | 12.5/80x18 |
|---|
| R4 Industrial - Rear | 18.4x24 | 19.5Lx24 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | 2565CL | ML3070 |
|---|
| Loader Lift Height | 2565CL: 115.4 in | ML3070: 126 in |
|---|
| Loader Lift Capacity (Full Height) | 2565CL: 3,122 lb | ML3070: 4205 lb |
|---|
| Loader Breakout Force | 2565CL: 5,225 lb | ML3070: 6807 lb |
|---|
|
|---|
| Warranty Length & Coverage | 5-year powertrain warranty | Not Published |
|---|
Mahindra 2565 vs Mahindra 6530: Quick Answers
- Which has more horsepower, the Mahindra 2565 or the Mahindra 6530?
- They are effectively tied: both machines are rated at 65 hp hp for engine hp.
- Which has more PTO horsepower, the Mahindra 2565 or the Mahindra 6530?
- The Mahindra 6530 leads on pto hp at 57 hp hp, compared to 50 hp hp for the Mahindra 2565.
- Which is heavier, the Mahindra 2565 or the Mahindra 6530?
- The Mahindra 6530 leads on weight at 6,360 lb lb, compared to 5,070 lb lb for the Mahindra 2565.
- Which has more loader lift capacity, the Mahindra 2565 or the Mahindra 6530?
- The Mahindra 6530 leads on loader lift at 4,205 lb lb, compared to 3,122 lb lb for the Mahindra 2565.
- Which has more three-point hitch lift capacity, the Mahindra 2565 or the Mahindra 6530?
- The Mahindra 6530 leads on 3-pt lift (24 in) at 3,968 lb lb, compared to 3,527 lb lb for the Mahindra 2565.
