Mahindra 4035 vs Mahindra 4540 4WD

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 4540 4WD leads 7 categories to 2. Machine pages: Mahindra 4035 and Mahindra 4540 4WD.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 4035	Mahindra 4540 4WD
Engine HP (hp)	40 hp	▲ 41 hp
PTO HP (hp)	▲ 33 hp	31 hp
Weight (lb)	4,367 lb	▲ 5,192 lb
Loader Lift (lb)	2,400 lb	▲ 2,866 lb
3-Pt Lift (24 in) (lb)	3,090 lb	▲ 3,527 lb
Lift Height (in)	106 in	▲ 116.6 in
Breakout Force (lbf)	3,900 lbf	▲ 4,978 lbf
Hydraulic Flow (gpm)	▲ 16 gpm	8.7 gpm
Travel Speed (mph)	16.5 mph	▲ 17.6 mph

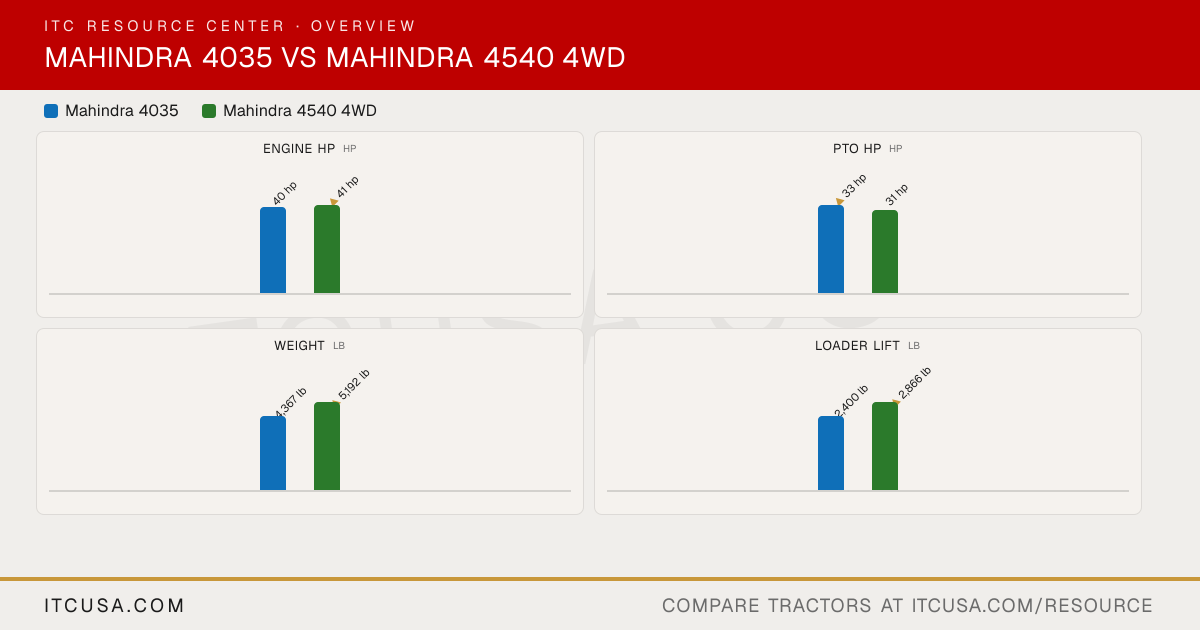

The headline numbers at a glance.

Mahindra 4035Mahindra 4540 4WD

Engine HPhp

40 hp

▲41 hp

PTO HPhp

▲33 hp

31 hp

Weightlb

4,367 lb

▲5,192 lb

Loader Liftlb

2,400 lb

▲2,866 lb

3-Pt Lift (24 in)lb

3,090 lb

▲3,527 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra4035	Mahindra4540 4WD


Engine Manufacturer	Mahindra	Mahindra
Engine Model	CE 40	MDI 2700 R2
Engine Type	Naturally aspirated direct injection diesel	Four-stroke, direct-injection water-cooled, diesel
No. of Cylinders	3	4
Displacement	115.4 in³	166.7 in³
Rated Engine Speed	2800 rpm	2300 rpm
Engine Power (Gross)	40 hp	41 hp
PTO Power	33 hp	31 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type with safety cartridge and automatic dust unloading	Dry type with safety cartridge and dust unloader valve
Fuel System	Direct injection	Direct injection
Alternator	45 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	11 gpm	8.7 gpm
Steering Flow	5 gpm	5.8 gpm
Total Hydraulic Flow	16 gpm (11 + 5, computed)	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	None standard (1 spool optional)
No. of Optional Remote Valves	Two-spool valve optional (dealer kit)	1 spool

Fuel Tank Capacity	11.3 gal	14.55 gal
Coolant Capacity	7.4 qt (4035 4WD HST)	2.25 gal
Crankcase Capacity	6.32 qt (4035 4WD HST)	2.14 gal
Transmission / Hydraulic System Capacity	10.03 gal (4035 4WD HST)	10.57 gal
Front Axle Fluid Capacity	8.96 qt (4035 4WD HST)	2.24 gal

PTO Type	Independent	Live
PTO Rear	540 rpm @ 2404 rpm	540 rpm @ 2058 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I with telescopic lower links	Category I & II adjustable, with telescopic stabilizers
Hitch Lift Capacity	3090 lb	3527 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position and draft control	Position & draft control

Transmission Type	Forward/reverse synchro shuttle with full synchro mesh (4035 4WD Shuttle); Forward/reverse synchro shuttle with full synchro mesh (4035 4WD PST); HST, 3 ranges (4035 4WD HST)	Full constant mesh
No. of Speeds	12F/12R (4035 4WD Shuttle); 12F/12R (4035 4WD PST); Infinite, 3 ranges (4035 4WD HST)	8F / 2R
Max Travel Speed (Forward)	16.5 mph (4035 4WD Shuttle); 16.5 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)	17.6 mph
Max Travel Speed (Reverse)	15.6 mph (4035 4WD Shuttle); 15.6 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)	7.53 mph
Clutch	Single plate dry (4035 4WD Shuttle); Wet (4035 4WD PST); N/A (4035 4WD HST)	Dual
Differential Lock & Limited Slip Options	Not Published	Foot-operated differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering, tilt	Hydrostatic power steering
Brakes	Wet disc	Fully enclosed dry disc
Seat Suspension & Adjustability	Deluxe suspension seat with back angle and weight adjustment, retractable seat belt and arm rests	mComfort mechanical suspension seat
Front Axle Type	Mechanical front wheel drive (MFWD) with bevel gear final reduction	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	123.8 in	128.9 in
Overall Width	73.7 in	82.6 in
Wheelbase	70.87 in (4035 4WD HST)	76.7 in
Ground Clearance	Not Published	8.7 in
Min. Turn Radius without Brakes	11.3 ft (4035 4WD HST)	147.63 in
Height to Top of ROPS	98.1 in	92.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	4367 lb (4035 4WD Shuttle); 4367 lb (4035 4WD PST); 4817 lb (4035 4WD HST)	5192 lb
Weight with ROPS and Loader	Not Published	6746 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	R4 Industrial (standard); R1 Agricultural (optional)
R1 Agricultural - Front	9.5-16	9.5X16
R1 Agricultural - Rear	14.9-24	12.4X28
R3 Turf - Front	29x12.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	12-16.5	12X16.5
R4 Industrial - Rear	16.9-24	16.9X24

Quick Attach Loader System	Not Published	Skid-steer style quick-attach coupler
Loader Model	ML120	4550-4L
Loader Lift Height	ML120: 106 in	4550-4L: 116.6 in
Loader Lift Capacity (Full Height)	ML120: 2,400 lb	4550-4L: 2,866 lb at pivot pins to full height
Loader Breakout Force	ML120: 3,900 lb	4550-4L: 4,978 lb at pivot pins

Warranty Length & Coverage	5-year limited warranty	7-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra 4035 vs Mahindra 4540 4WD: Quick Answers

Which has more horsepower, the Mahindra 4035 or the Mahindra 4540 4WD?: The Mahindra 4540 4WD leads on engine hp at 41 hp hp, compared to 40 hp hp for the Mahindra 4035.
Which has more PTO horsepower, the Mahindra 4035 or the Mahindra 4540 4WD?: The Mahindra 4035 leads on pto hp at 33 hp hp, compared to 31 hp hp for the Mahindra 4540 4WD.
Which is heavier, the Mahindra 4035 or the Mahindra 4540 4WD?: The Mahindra 4540 4WD leads on weight at 5,192 lb lb, compared to 4,367 lb lb for the Mahindra 4035.
Which has more loader lift capacity, the Mahindra 4035 or the Mahindra 4540 4WD?: The Mahindra 4540 4WD leads on loader lift at 2,866 lb lb, compared to 2,400 lb lb for the Mahindra 4035.
Which has more three-point hitch lift capacity, the Mahindra 4035 or the Mahindra 4540 4WD?: The Mahindra 4540 4WD leads on 3-pt lift (24 in) at 3,527 lb lb, compared to 3,090 lb lb for the Mahindra 4035.

More Head-to-Heads

Category Verdict

Spec	Mahindra 4035	Mahindra 4540 4WD
Engine HP (hp)	40 hp	▲ 41 hp
PTO HP (hp)	▲ 33 hp	31 hp
Weight (lb)	4,367 lb	▲ 5,192 lb
Loader Lift (lb)	2,400 lb	▲ 2,866 lb
3-Pt Lift (24 in) (lb)	3,090 lb	▲ 3,527 lb
Lift Height (in)	106 in	▲ 116.6 in
Breakout Force (lbf)	3,900 lbf	▲ 4,978 lbf
Hydraulic Flow (gpm)	▲ 16 gpm	8.7 gpm
Travel Speed (mph)	16.5 mph	▲ 17.6 mph

The headline numbers at a glance.

Mahindra 4035Mahindra 4540 4WD

Engine HPhp

40 hp

▲41 hp

PTO HPhp

▲33 hp

31 hp

Weightlb

4,367 lb

▲5,192 lb

Loader Liftlb

2,400 lb

▲2,866 lb

3-Pt Lift (24 in)lb

3,090 lb

▲3,527 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra4035	Mahindra4540 4WD


Engine Manufacturer	Mahindra	Mahindra
Engine Model	CE 40	MDI 2700 R2
Engine Type	Naturally aspirated direct injection diesel	Four-stroke, direct-injection water-cooled, diesel
No. of Cylinders	3	4
Displacement	115.4 in³	166.7 in³
Rated Engine Speed	2800 rpm	2300 rpm
Engine Power (Gross)	40 hp	41 hp
PTO Power	33 hp	31 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type with safety cartridge and automatic dust unloading	Dry type with safety cartridge and dust unloader valve
Fuel System	Direct injection	Direct injection
Alternator	45 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	11 gpm	8.7 gpm
Steering Flow	5 gpm	5.8 gpm
Total Hydraulic Flow	16 gpm (11 + 5, computed)	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	None standard (1 spool optional)
No. of Optional Remote Valves	Two-spool valve optional (dealer kit)	1 spool

Fuel Tank Capacity	11.3 gal	14.55 gal
Coolant Capacity	7.4 qt (4035 4WD HST)	2.25 gal
Crankcase Capacity	6.32 qt (4035 4WD HST)	2.14 gal
Transmission / Hydraulic System Capacity	10.03 gal (4035 4WD HST)	10.57 gal
Front Axle Fluid Capacity	8.96 qt (4035 4WD HST)	2.24 gal

PTO Type	Independent	Live
PTO Rear	540 rpm @ 2404 rpm	540 rpm @ 2058 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I with telescopic lower links	Category I & II adjustable, with telescopic stabilizers
Hitch Lift Capacity	3090 lb	3527 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position and draft control	Position & draft control

Transmission Type	Forward/reverse synchro shuttle with full synchro mesh (4035 4WD Shuttle); Forward/reverse synchro shuttle with full synchro mesh (4035 4WD PST); HST, 3 ranges (4035 4WD HST)	Full constant mesh
No. of Speeds	12F/12R (4035 4WD Shuttle); 12F/12R (4035 4WD PST); Infinite, 3 ranges (4035 4WD HST)	8F / 2R
Max Travel Speed (Forward)	16.5 mph (4035 4WD Shuttle); 16.5 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)	17.6 mph
Max Travel Speed (Reverse)	15.6 mph (4035 4WD Shuttle); 15.6 mph (4035 4WD PST); 15.5 mph (4035 4WD HST)	7.53 mph
Clutch	Single plate dry (4035 4WD Shuttle); Wet (4035 4WD PST); N/A (4035 4WD HST)	Dual
Differential Lock & Limited Slip Options	Not Published	Foot-operated differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering, tilt	Hydrostatic power steering
Brakes	Wet disc	Fully enclosed dry disc
Seat Suspension & Adjustability	Deluxe suspension seat with back angle and weight adjustment, retractable seat belt and arm rests	mComfort mechanical suspension seat
Front Axle Type	Mechanical front wheel drive (MFWD) with bevel gear final reduction	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	123.8 in	128.9 in
Overall Width	73.7 in	82.6 in
Wheelbase	70.87 in (4035 4WD HST)	76.7 in
Ground Clearance	Not Published	8.7 in
Min. Turn Radius without Brakes	11.3 ft (4035 4WD HST)	147.63 in
Height to Top of ROPS	98.1 in	92.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	4367 lb (4035 4WD Shuttle); 4367 lb (4035 4WD PST); 4817 lb (4035 4WD HST)	5192 lb
Weight with ROPS and Loader	Not Published	6746 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	R4 Industrial (standard); R1 Agricultural (optional)
R1 Agricultural - Front	9.5-16	9.5X16
R1 Agricultural - Rear	14.9-24	12.4X28
R3 Turf - Front	29x12.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	12-16.5	12X16.5
R4 Industrial - Rear	16.9-24	16.9X24

Quick Attach Loader System	Not Published	Skid-steer style quick-attach coupler
Loader Model	ML120	4550-4L
Loader Lift Height	ML120: 106 in	4550-4L: 116.6 in
Loader Lift Capacity (Full Height)	ML120: 2,400 lb	4550-4L: 2,866 lb at pivot pins to full height
Loader Breakout Force	ML120: 3,900 lb	4550-4L: 4,978 lb at pivot pins

Warranty Length & Coverage	5-year limited warranty	7-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra 4035 vs Mahindra 4540 4WD: Quick Answers

Which has more horsepower, the Mahindra 4035 or the Mahindra 4540 4WD?

The Mahindra 4540 4WD leads on engine hp at 41 hp hp, compared to 40 hp hp for the Mahindra 4035.

Which has more PTO horsepower, the Mahindra 4035 or the Mahindra 4540 4WD?

The Mahindra 4035 leads on pto hp at 33 hp hp, compared to 31 hp hp for the Mahindra 4540 4WD.

Which is heavier, the Mahindra 4035 or the Mahindra 4540 4WD?

The Mahindra 4540 4WD leads on weight at 5,192 lb lb, compared to 4,367 lb lb for the Mahindra 4035.

Which has more loader lift capacity, the Mahindra 4035 or the Mahindra 4540 4WD?

The Mahindra 4540 4WD leads on loader lift at 2,866 lb lb, compared to 2,400 lb lb for the Mahindra 4035.

Which has more three-point hitch lift capacity, the Mahindra 4035 or the Mahindra 4540 4WD?

The Mahindra 4540 4WD leads on 3-pt lift (24 in) at 3,527 lb lb, compared to 3,090 lb lb for the Mahindra 4035.
