Across 8 measurable specs, the Mahindra 4500 leads 4 categories to 2 (2 tied). Machine pages: Mahindra 4500 and Mahindra 4530.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 4500 | Mahindra 4530 |
|---|
| Engine HP (hp) | 42 hp | ▲ 42.5 hp |
| PTO HP (hp) | ▲ 35 hp | 34 hp |
| Weight (lb) | ▲ 5,742 lb | 5,720 lb |
| Loader Lift (lb) | 2,500 lb | ▲ 2,745 lb |
| 3-Pt Lift (24 in) (lb) | 3,968 lb | 3,968 lb |
| Lift Height (in) | ▲ 117.4 in | 116.4 in |
| Breakout Force (lbf) | ▲ 5,000 lbf | 4,076 lbf |
| Hydraulic Flow (gpm) | 11 gpm | 11 gpm |

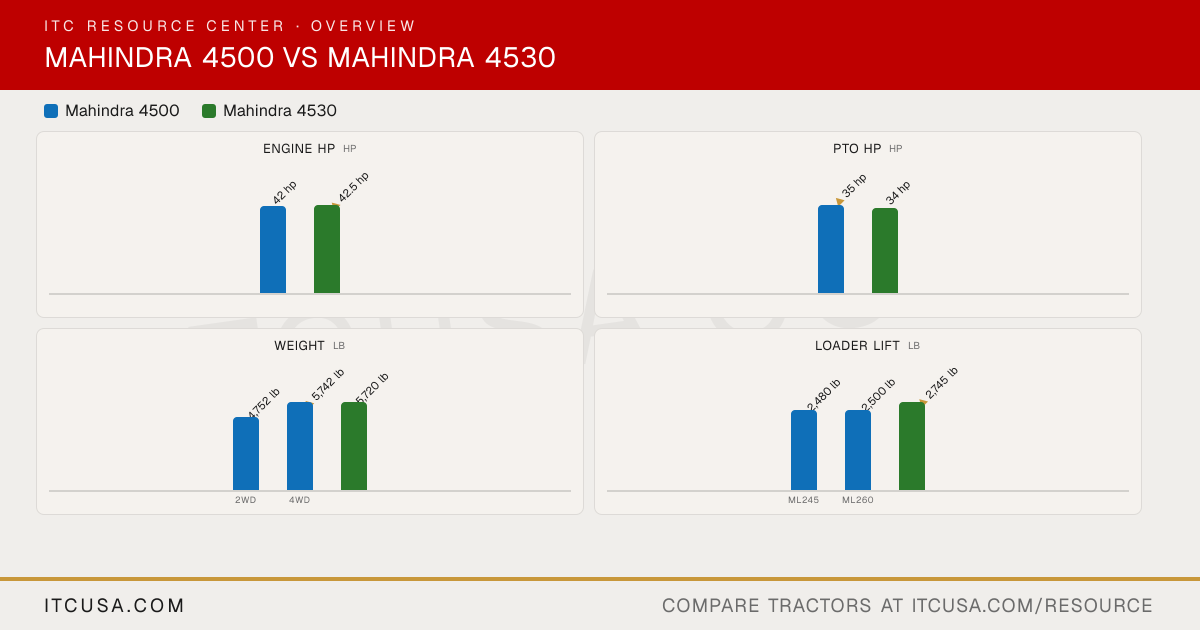

The headline numbers at a glance.
Mahindra 4500Mahindra 4530
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
4,752 lb
▲5,742 lb
5,720 lb
2WD4WD
Loader Liftlb
2,480 lb
2,500 lb
▲2,745 lb
ML245ML260
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra4500 | Mahindra4530 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | NE342 | NE342 |
|---|
| Engine Type | Not Published | Four stroke, direct injection, water-cooled, diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 146 in³ | 146 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2100 rpm |
|---|
| Engine Power (Gross) | 42 hp | 42.5 hp |
|---|
| PTO Power | 35 hp | 34 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Direct injection | Direct injection |
|---|
| Alternator | Not Published | 36 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 11 gpm | 11 gpm |
|---|
| Steering Flow | Not Published | 4.5 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open centre, full-live hydraulic with position and draft controls |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Optional (1) |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | Not Published |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | 2WD: Continuous; 4WD: Independent | Independent |
|---|
| PTO Rear | 540/1000 rpm | 540 rpm @ 2100 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Rear Type II/I | Category 1 & 2 with telescopic check chains |
|---|
| Hitch Lift Capacity | 3968 lb | 3968 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | Not Published |
|---|
| Lift Control Type | Position and draft control | Position and draft control |
|---|
|
|---|
| Transmission Type | 2WD: constant mesh; 4WD: synchromesh shuttle | Forward-reverse synchro-shuttle with full synchromesh gearshift |
|---|
| No. of Speeds | 2WD: 8F/2R; 4WD: 8F/8R | 8F/8R |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Dual with cerametallic lining |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Two-post folding ROPS | Not Published |
|---|
| Steering | Power steering | Hydrostatic power |
|---|
| Brakes | 2WD: dry disc; 4WD: wet disc | Dry disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145.4 in | 133.9 in |
|---|
| Overall Width | 67.3 in | 73 in |
|---|
| Wheelbase | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | 10.9 ft |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2WD: 4752 lb; 4WD: 5742 lb | 5720 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | 2WD: 6-16; 4WD: 9.5-20 | 9.5x20 |
|---|
| R1 Agricultural - Rear | 2WD: 13.6-28; 4WD: 14.9-26 | 13.6x28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | 10.5/80x18 |
|---|
| R4 Industrial - Rear | Not Published | 16.9Lx24 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | 4WD: ML245; 2WD: ML260 | ML445 (named by Mahindra literature; a US listing calls the same loader the ML245) |
|---|
| Loader Lift Height | ML245: 117.4 in; ML260: 107.5 in | ML445: 116.4 in |
|---|
| Loader Lift Capacity (Full Height) | ML245: 2480 lb; ML260: 2500 lb | ML445: 2745 lb |
|---|
| Loader Breakout Force | ML245: 4400 lb; ML260: 5000 lb | ML445: 4076 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Mahindra 4500 vs Mahindra 4530: Quick Answers
- Which has more horsepower, the Mahindra 4500 or the Mahindra 4530?
- The Mahindra 4530 leads on engine hp at 42.5 hp hp, compared to 42 hp hp for the Mahindra 4500.
- Which has more PTO horsepower, the Mahindra 4500 or the Mahindra 4530?
- The Mahindra 4500 leads on pto hp at 35 hp hp, compared to 34 hp hp for the Mahindra 4530.
- Which is heavier, the Mahindra 4500 or the Mahindra 4530?
- The Mahindra 4500 leads on weight at 5,742 lb lb, compared to 5,720 lb lb for the Mahindra 4530.
- Which has more loader lift capacity, the Mahindra 4500 or the Mahindra 4530?
- The Mahindra 4530 leads on loader lift at 2,745 lb lb, compared to 2,500 lb lb for the Mahindra 4500.
- Which has more three-point hitch lift capacity, the Mahindra 4500 or the Mahindra 4530?
- They are effectively tied: both machines are rated at 3,968 lb lb for 3-pt lift (24 in).
