Across 8 measurable specs, the Mahindra 4500 leads 7 categories to 1. Machine pages: Mahindra 4500 and Mahindra 4540 4WD.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 4500 | Mahindra 4540 4WD |
|---|
| Engine HP (hp) | ▲ 42 hp | 41 hp |
| PTO HP (hp) | ▲ 35 hp | 31 hp |
| Weight (lb) | ▲ 5,742 lb | 5,192 lb |
| Loader Lift (lb) | 2,500 lb | ▲ 2,866 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 3,968 lb | 3,527 lb |
| Lift Height (in) | ▲ 117.4 in | 116.6 in |
| Breakout Force (lbf) | ▲ 5,000 lbf | 4,978 lbf |
| Hydraulic Flow (gpm) | ▲ 11 gpm | 8.7 gpm |
| Travel Speed (mph) | n/a | 17.6 mph |

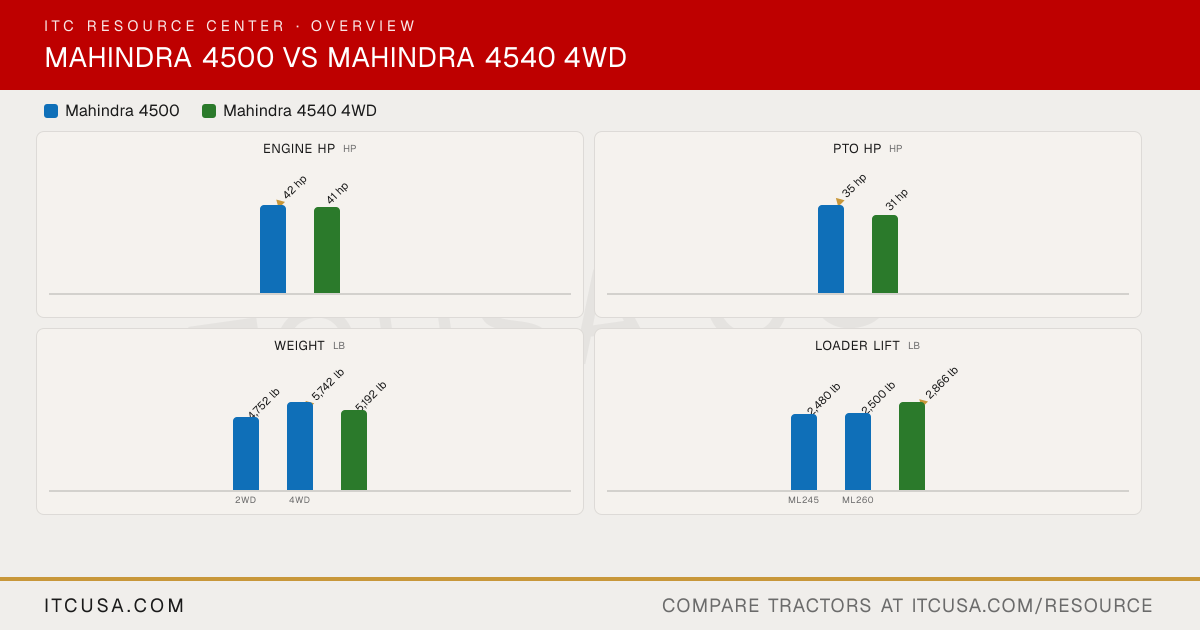

The headline numbers at a glance.
Mahindra 4500Mahindra 4540 4WD
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
4,752 lb
▲5,742 lb
5,192 lb
2WD4WD
Loader Liftlb
2,480 lb
2,500 lb
▲2,866 lb
ML245ML260
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra4500 | Mahindra4540 4WD |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | NE342 | MDI 2700 R2 |
|---|
| Engine Type | Not Published | Four-stroke, direct-injection water-cooled, diesel |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 146 in³ | 166.7 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 42 hp | 41 hp |
|---|
| PTO Power | 35 hp | 31 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Water-cooled |
|---|
| Air Cleaner | Not Published | Dry type with safety cartridge and dust unloader valve |
|---|
| Fuel System | Direct injection | Direct injection |
|---|
| Alternator | Not Published | 45 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 11 gpm | 8.7 gpm |
|---|
| Steering Flow | Not Published | 5.8 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center, full-live hydraulic with position and draft controls |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 | None standard (1 spool optional) |
|---|
| No. of Optional Remote Valves | Not Published | 1 spool |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | 14.55 gal |
|---|
| Coolant Capacity | Not Published | 2.25 gal |
|---|
| Crankcase Capacity | Not Published | 2.14 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 10.57 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 2.24 gal |
|---|
|
|---|
| PTO Type | 2WD: Continuous; 4WD: Independent | Live |
|---|
| PTO Rear | 540/1000 rpm | 540 rpm @ 2058 engine rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Rear Type II/I | Category I & II adjustable, with telescopic stabilizers |
|---|
| Hitch Lift Capacity | 3968 lb | 3527 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | Not Published |
|---|
| Lift Control Type | Position and draft control | Position & draft control |
|---|
|
|---|
| Transmission Type | 2WD: constant mesh; 4WD: synchromesh shuttle | Full constant mesh |
|---|
| No. of Speeds | 2WD: 8F/2R; 4WD: 8F/8R | 8F / 2R |
|---|
| Max Travel Speed (Forward) | Not Published | 17.6 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 7.53 mph |
|---|
| Clutch | Not Published | Dual |
|---|
| Differential Lock & Limited Slip Options | Not Published | Foot-operated differential lock |
|---|
|
|---|
| Frame Type | Two-post folding ROPS | Not Published |
|---|
| Steering | Power steering | Hydrostatic power steering |
|---|
| Brakes | 2WD: dry disc; 4WD: wet disc | Fully enclosed dry disc |
|---|
| Seat Suspension & Adjustability | Not Published | mComfort mechanical suspension seat |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145.4 in | 128.9 in |
|---|
| Overall Width | 67.3 in | 82.6 in |
|---|
| Wheelbase | Not Published | 76.7 in |
|---|
| Ground Clearance | Not Published | 8.7 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 147.63 in |
|---|
| Height to Top of ROPS | Not Published | 92.6 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2WD: 4752 lb; 4WD: 5742 lb | 5192 lb |
|---|
| Weight with ROPS and Loader | Not Published | 6746 lb |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | R4 Industrial (standard); R1 Agricultural (optional) |
|---|
| R1 Agricultural - Front | 2WD: 6-16; 4WD: 9.5-20 | 9.5X16 |
|---|
| R1 Agricultural - Rear | 2WD: 13.6-28; 4WD: 14.9-26 | 12.4X28 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | 12X16.5 |
|---|
| R4 Industrial - Rear | Not Published | 16.9X24 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Skid-steer style quick-attach coupler |
|---|
| Loader Model | 4WD: ML245; 2WD: ML260 | 4550-4L |
|---|
| Loader Lift Height | ML245: 117.4 in; ML260: 107.5 in | 4550-4L: 116.6 in |
|---|
| Loader Lift Capacity (Full Height) | ML245: 2480 lb; ML260: 2500 lb | 4550-4L: 2,866 lb at pivot pins to full height |
|---|
| Loader Breakout Force | ML245: 4400 lb; ML260: 5000 lb | 4550-4L: 4,978 lb at pivot pins |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 7-Year Limited Powertrain Warranty |
|---|
Mahindra 4500 vs Mahindra 4540 4WD: Quick Answers
- Which has more horsepower, the Mahindra 4500 or the Mahindra 4540 4WD?
- The Mahindra 4500 leads on engine hp at 42 hp hp, compared to 41 hp hp for the Mahindra 4540 4WD.
- Which has more PTO horsepower, the Mahindra 4500 or the Mahindra 4540 4WD?
- The Mahindra 4500 leads on pto hp at 35 hp hp, compared to 31 hp hp for the Mahindra 4540 4WD.
- Which is heavier, the Mahindra 4500 or the Mahindra 4540 4WD?
- The Mahindra 4500 leads on weight at 5,742 lb lb, compared to 5,192 lb lb for the Mahindra 4540 4WD.
- Which has more loader lift capacity, the Mahindra 4500 or the Mahindra 4540 4WD?
- The Mahindra 4540 4WD leads on loader lift at 2,866 lb lb, compared to 2,500 lb lb for the Mahindra 4500.
- Which has more three-point hitch lift capacity, the Mahindra 4500 or the Mahindra 4540 4WD?
- The Mahindra 4500 leads on 3-pt lift (24 in) at 3,968 lb lb, compared to 3,527 lb lb for the Mahindra 4540 4WD.
