Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Mahindra 4500, 4 to the Mahindra 5545. Machine pages: Mahindra 4500 and Mahindra 5545 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Mahindra 4500 Mahindra 5545 Engine HP (hp) 42 hp ▲ 43 hpPTO HP (hp) ▲ 35 hp34.9 hp Weight (lb) ▲ 5,742 lb5,567 lb Loader Lift (lb) 2,500 lb ▲ 2,950 lb3-Pt Lift (24 in) (lb) 3,968 lb ▲ 3,969 lbLift Height (in) 117.4 in ▲ 120 inBreakout Force (lbf) ▲ 5,000 lbf4,950 lbf Hydraulic Flow (gpm) ▲ 11 gpm10.9 gpm
Overview Loader Work PTO Work

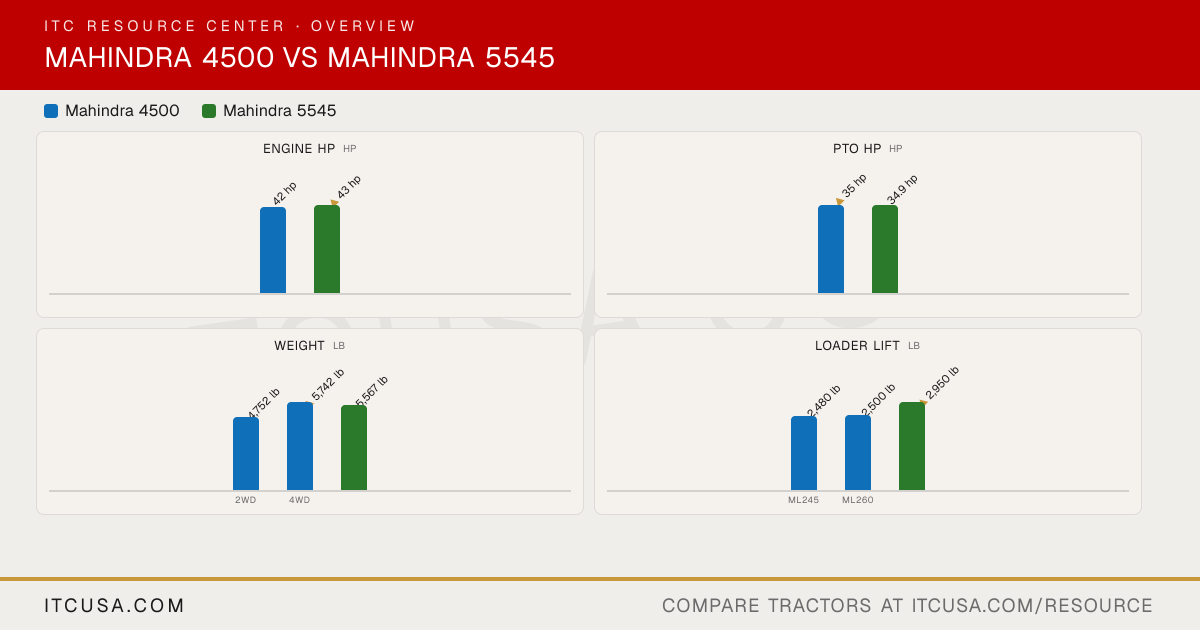

The headline numbers at a glance.
Mahindra 4500 Mahindra 5545
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
4,752 lb
▲ 5,742 lb
5,567 lb
2WD 4WD
Loader Lift lb
2,480 lb
2,500 lb
▲ 2,950 lb
ML245 ML260
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Mahindra 4500 Mahindra 5545
▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model NE342 Not Published Engine Type Not Published Four stroke, direct injection, water-cooled diesel No. of Cylinders 3 3 Displacement 146 in³ 161.7 in³ Rated Engine Speed 2100 rpm 2300 rpm Engine Power (Gross) 42 hp 43 hp PTO Power 35 hp 34.9 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Direct injection Not Published Alternator Not Published 45 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11 gpm 10.9 gpm Steering Flow Not Published 5 gpm Total Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center, full-live hydraulic with position and draft controls Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves Not Published 1 (optional) ▶ Fluid CapacityFuel Tank Capacity Not Published 12 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type 2WD: Continuous; 4WD: Independent Independent PTO Rear 540/1000 rpm 540 rpm @ 2058 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Rear Type II/I Category 1 and 2 with telescopic stabilizers Hitch Lift Capacity 3968 lb 3969 lb Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Position and draft control Position and draft control ▶ Transmission & DrivetrainTransmission Type 2WD: constant mesh; 4WD: synchromesh shuttle Forward/reverse synchro shuttle with synchro speeds and constant mesh range No. of Speeds 2WD: 8F/2R; 4WD: 8F/8R 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Dual dry with cerametallic lining Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Two-post folding ROPS Not Published Steering Power steering Hydrostatic power Brakes 2WD: dry disc; 4WD: wet disc Dry disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.4 in 134 in Overall Width 67.3 in 72.5 in Wheelbase Not Published Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 10.8 ft Height to Top of ROPS Not Published 93.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2WD: 4752 lb; 4WD: 5742 lb 5567 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front 2WD: 6-16; 4WD: 9.5-20 9.5x20 R1 Agricultural - Rear 2WD: 13.6-28; 4WD: 14.9-26 13.6x28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 10.5/80x18 R4 Industrial - Rear Not Published 16.9x24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 4WD: ML245; 2WD: ML260 5545L Loader Lift Height ML245: 117.4 in; ML260: 107.5 in 5545L: 120 in Loader Lift Capacity (Full Height) ML245: 2480 lb; ML260: 2500 lb 5545L: 2950 lb Loader Breakout Force ML245: 4400 lb; ML260: 5000 lb 5545L: 4950 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
Mahindra 4500 vs Mahindra 5545: Quick Answers
Which has more horsepower, the Mahindra 4500 or the Mahindra 5545? The Mahindra 5545 leads on engine hp at 43 hp hp, compared to 42 hp hp for the Mahindra 4500.
Which has more PTO horsepower, the Mahindra 4500 or the Mahindra 5545? The Mahindra 4500 leads on pto hp at 35 hp hp, compared to 34.9 hp hp for the Mahindra 5545.
Which is heavier, the Mahindra 4500 or the Mahindra 5545? The Mahindra 4500 leads on weight at 5,742 lb lb, compared to 5,567 lb lb for the Mahindra 5545.
Which has more loader lift capacity, the Mahindra 4500 or the Mahindra 5545? The Mahindra 5545 leads on loader lift at 2,950 lb lb, compared to 2,500 lb lb for the Mahindra 4500.
Which has more three-point hitch lift capacity, the Mahindra 4500 or the Mahindra 5545? The Mahindra 5545 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 3,968 lb lb for the Mahindra 4500.
