Mahindra 4540 vs Mahindra 5545

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5545 leads 7 categories to 1. Machine pages: Mahindra 4540 and Mahindra 5545.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 4540	Mahindra 5545
Engine HP (hp)	41 hp	▲ 43 hp
PTO HP (hp)	31 hp	▲ 34.9 hp
Weight (lb)	4,191 lb	▲ 5,567 lb
Loader Lift (lb)	2,866 lb	▲ 2,950 lb
3-Pt Lift (24 in) (lb)	3,525 lb	▲ 3,969 lb
Lift Height (in)	116.6 in	▲ 120 in
Breakout Force (lbf)	▲ 4,978 lbf	4,950 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 10.9 gpm

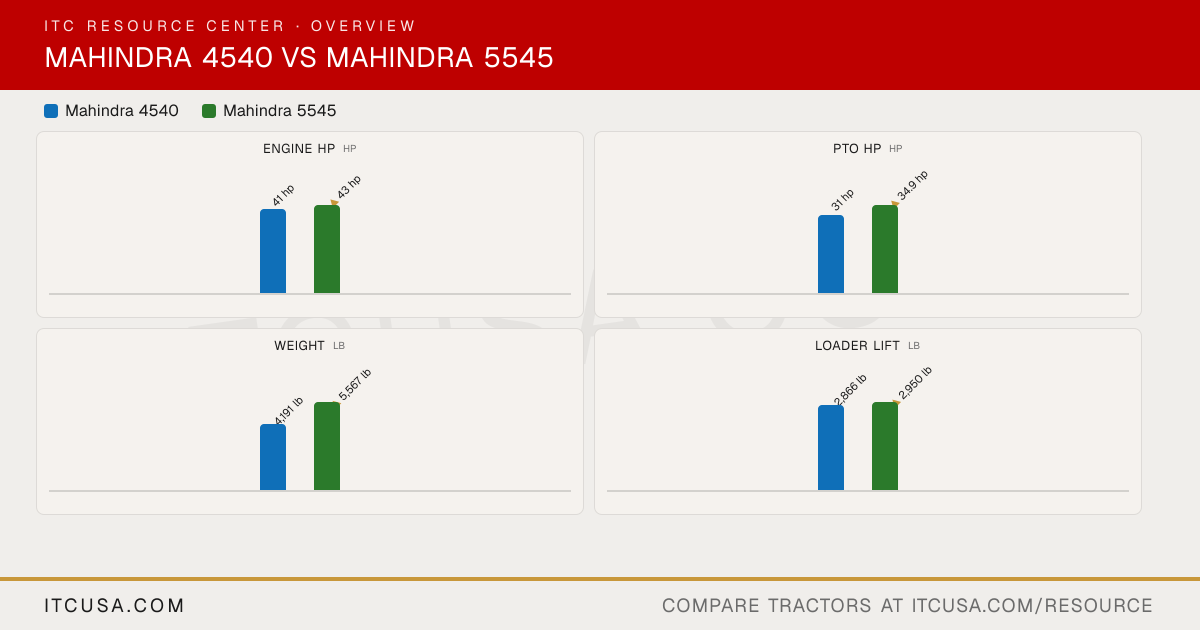

The headline numbers at a glance.

Mahindra 4540Mahindra 5545

Engine HPhp

41 hp

▲43 hp

PTO HPhp

31 hp

▲34.9 hp

Weightlb

4,191 lb

▲5,567 lb

Loader Liftlb

2,866 lb

▲2,950 lb

3-Pt Lift (24 in)lb

3,525 lb

▲3,969 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra4540	Mahindra5545


Engine Manufacturer	Mahindra	Mahindra
Engine Model	MDI 2700 R2	Not Published
Engine Type	Four-stroke, direct-injection water-cooled, diesel	Four stroke, direct injection, water-cooled diesel
No. of Cylinders	4	3
Displacement	166.7 in³	161.7 in³
Rated Engine Speed	2300 rpm	2300 rpm
Engine Power (Gross)	41 hp	43 hp
PTO Power	31 hp	34.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Not Published
Alternator	45 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	8.7 gpm	10.9 gpm
Steering Flow	5.8 gpm	5 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center, full-live hydraulic with position and draft controls	Open center, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (1 spool optional)	1
No. of Optional Remote Valves	1 spool	1 (optional)

Fuel Tank Capacity	14.55 gal	12 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Live	Independent
PTO Rear	540 rpm @ 2058 engine rpm	540 rpm @ 2058 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I & II adjustable, with telescopic stabilizers	Category 1 and 2 with telescopic stabilizers
Hitch Lift Capacity	3525 lb	3969 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position & draft control	Position and draft control

Transmission Type	Sliding mesh	Forward/reverse synchro shuttle with synchro speeds and constant mesh range
No. of Speeds	8F / 2R	8F/8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power
Brakes	Fully enclosed dry disc	Dry disc
Seat Suspension & Adjustability	mComfort mechanical suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	115.3 in	134 in
Overall Width	69.4 in	72.5 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.7 ft (with brake applied)	10.8 ft
Height to Top of ROPS	88 in	93.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	4191 lb	5567 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural	Not Published
R1 Agricultural - Front	6X16	9.5x20
R1 Agricultural - Rear	12.4X28	13.6x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	10.5/80x18
R4 Industrial - Rear	Not Published	16.9x24

Quick Attach Loader System	Skid-steer style quick-attach coupler	Not Published
Loader Model	4550-2L	5545L
Loader Lift Height	4550-2L: 116.6 in	5545L: 120 in
Loader Lift Capacity (Full Height)	4550-2L: 2,866 lb at pivot pins to full height	5545L: 2950 lb
Loader Breakout Force	4550-2L: 4,978 lb at pivot pins	5545L: 4950 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Not Published

Find a Mahindra dealer near you

Mahindra 4540 vs Mahindra 5545: Quick Answers

Which has more horsepower, the Mahindra 4540 or the Mahindra 5545?: The Mahindra 5545 leads on engine hp at 43 hp hp, compared to 41 hp hp for the Mahindra 4540.
Which has more PTO horsepower, the Mahindra 4540 or the Mahindra 5545?: The Mahindra 5545 leads on pto hp at 34.9 hp hp, compared to 31 hp hp for the Mahindra 4540.
Which is heavier, the Mahindra 4540 or the Mahindra 5545?: The Mahindra 5545 leads on weight at 5,567 lb lb, compared to 4,191 lb lb for the Mahindra 4540.
Which has more loader lift capacity, the Mahindra 4540 or the Mahindra 5545?: The Mahindra 5545 leads on loader lift at 2,950 lb lb, compared to 2,866 lb lb for the Mahindra 4540.
Which has more three-point hitch lift capacity, the Mahindra 4540 or the Mahindra 5545?: The Mahindra 5545 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 3,525 lb lb for the Mahindra 4540.

More Head-to-Heads

Category Verdict

Spec	Mahindra 4540	Mahindra 5545
Engine HP (hp)	41 hp	▲ 43 hp
PTO HP (hp)	31 hp	▲ 34.9 hp
Weight (lb)	4,191 lb	▲ 5,567 lb
Loader Lift (lb)	2,866 lb	▲ 2,950 lb
3-Pt Lift (24 in) (lb)	3,525 lb	▲ 3,969 lb
Lift Height (in)	116.6 in	▲ 120 in
Breakout Force (lbf)	▲ 4,978 lbf	4,950 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 10.9 gpm

The headline numbers at a glance.

Mahindra 4540Mahindra 5545

Engine HPhp

41 hp

▲43 hp

PTO HPhp

31 hp

▲34.9 hp

Weightlb

4,191 lb

▲5,567 lb

Loader Liftlb

2,866 lb

▲2,950 lb

3-Pt Lift (24 in)lb

3,525 lb

▲3,969 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra4540	Mahindra5545


Engine Manufacturer	Mahindra	Mahindra
Engine Model	MDI 2700 R2	Not Published
Engine Type	Four-stroke, direct-injection water-cooled, diesel	Four stroke, direct injection, water-cooled diesel
No. of Cylinders	4	3
Displacement	166.7 in³	161.7 in³
Rated Engine Speed	2300 rpm	2300 rpm
Engine Power (Gross)	41 hp	43 hp
PTO Power	31 hp	34.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Direct injection	Not Published
Alternator	45 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	8.7 gpm	10.9 gpm
Steering Flow	5.8 gpm	5 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center, full-live hydraulic with position and draft controls	Open center, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (1 spool optional)	1
No. of Optional Remote Valves	1 spool	1 (optional)

Fuel Tank Capacity	14.55 gal	12 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Live	Independent
PTO Rear	540 rpm @ 2058 engine rpm	540 rpm @ 2058 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I & II adjustable, with telescopic stabilizers	Category 1 and 2 with telescopic stabilizers
Hitch Lift Capacity	3525 lb	3969 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position & draft control	Position and draft control

Transmission Type	Sliding mesh	Forward/reverse synchro shuttle with synchro speeds and constant mesh range
No. of Speeds	8F / 2R	8F/8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power
Brakes	Fully enclosed dry disc	Dry disc
Seat Suspension & Adjustability	mComfort mechanical suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	115.3 in	134 in
Overall Width	69.4 in	72.5 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.7 ft (with brake applied)	10.8 ft
Height to Top of ROPS	88 in	93.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	4191 lb	5567 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural	Not Published
R1 Agricultural - Front	6X16	9.5x20
R1 Agricultural - Rear	12.4X28	13.6x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	10.5/80x18
R4 Industrial - Rear	Not Published	16.9x24

Quick Attach Loader System	Skid-steer style quick-attach coupler	Not Published
Loader Model	4550-2L	5545L
Loader Lift Height	4550-2L: 116.6 in	5545L: 120 in
Loader Lift Capacity (Full Height)	4550-2L: 2,866 lb at pivot pins to full height	5545L: 2950 lb
Loader Breakout Force	4550-2L: 4,978 lb at pivot pins	5545L: 4950 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Not Published

Find a Mahindra dealer near you

Mahindra 4540 vs Mahindra 5545: Quick Answers

Which has more horsepower, the Mahindra 4540 or the Mahindra 5545?

The Mahindra 5545 leads on engine hp at 43 hp hp, compared to 41 hp hp for the Mahindra 4540.

Which has more PTO horsepower, the Mahindra 4540 or the Mahindra 5545?

The Mahindra 5545 leads on pto hp at 34.9 hp hp, compared to 31 hp hp for the Mahindra 4540.

Which is heavier, the Mahindra 4540 or the Mahindra 5545?

The Mahindra 5545 leads on weight at 5,567 lb lb, compared to 4,191 lb lb for the Mahindra 4540.

Which has more loader lift capacity, the Mahindra 4540 or the Mahindra 5545?

The Mahindra 5545 leads on loader lift at 2,950 lb lb, compared to 2,866 lb lb for the Mahindra 4540.

Which has more three-point hitch lift capacity, the Mahindra 4540 or the Mahindra 5545?

The Mahindra 5545 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 3,525 lb lb for the Mahindra 4540.
