Mahindra 4540 vs TYM 4215C

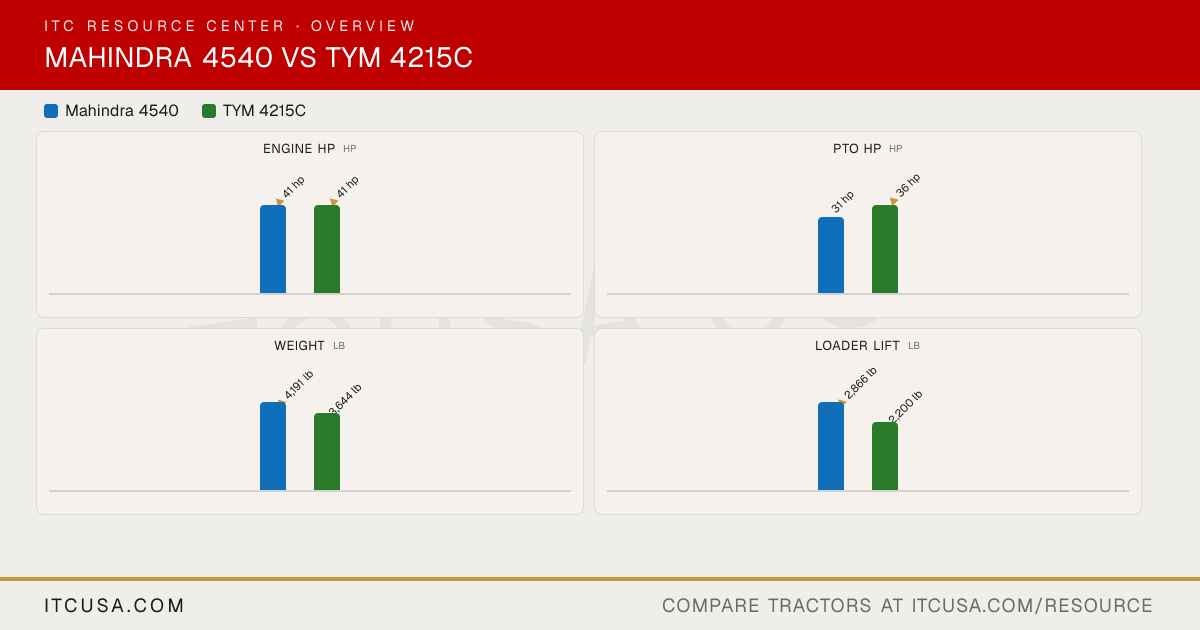

Across 8 measurable specs, the Mahindra 4540 leads 5 categories to 2 (1 tied). Machine pages: Mahindra 4540 and TYM 4215C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra4540	TYM4215C

▶Engine
Engine Manufacturer	Mahindra	TYM
Engine Model	Not Published	T2000N2
Engine Type	Four-stroke, direct-injection water-cooled, diesel	4-cylinder, naturally aspirated diesel
No. of Cylinders	4	4
Displacement	166.7 in³	139.5 in³
Rated Engine Speed	2300 rpm	2600 rpm
Engine Power (Gross)	41 hp	41 hp
PTO Power	31 hp	36 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry element
Fuel System	Direct injection	IDI
Alternator	45 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	8.7 gpm	11.4 gpm
Steering Flow	5.8 gpm	5.2 gpm
Total Hydraulic Flow	Not Published	16.5 gpm
Overall Hydraulic Pump Flow	Not Published	16.5 gpm
Hydraulic System Type	Open center, full-live hydraulic with position and draft controls	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (1 spool optional)	Rear: 0 (loader: 2)
No. of Optional Remote Valves	1 spool	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	14.55 gal	7.1 gal
Coolant Capacity	Not Published	5.8 qt
Crankcase Capacity	Not Published	4.8 qt
Transmission / Hydraulic System Capacity	Not Published	9.8 gal
Front Axle Fluid Capacity	Not Published	6.8 qt
▶PTO & Hitch
PTO Type	Live	Independent
PTO Rear	540 rpm @ 2058 engine rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I & II adjustable, with telescopic stabilizers	Category I
Hitch Lift Capacity	3525 lb	3,306 lb
Hitch Lift Capacity (at 24”)	Not Published	2,425 lb
Lift Control Type	Position & draft control	Position control
▶Transmission & Drivetrain
Transmission Type	Sliding mesh	HST (hydrostatic)
No. of Speeds	8F / 2R	3-range hydrostatic
Max Travel Speed (Forward)	Not Published	18 mph
Max Travel Speed (Reverse)	Not Published	17.95 mph
Clutch	Dual	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Fully enclosed dry disc	Wet, multi-disc
Seat Suspension & Adjustability	mComfort mechanical suspension seat	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	115.3 in	120.9 in
Overall Width	69.4 in	55.6 in
Wheelbase	Not Published	65.7 in
Ground Clearance	Not Published	13.1 in
Min. Turn Radius without Brakes	9.7 ft (with brake applied)	124.8 in (left); 121.3 in (right)
Height to Top of ROPS	88 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	89.3 in
▶Weight
Tractor Weight (Base)	4191 lb	3,644 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	4,652 lb
▶Tire Options
Tire Size & Options	R1 Agricultural	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6X16	7-16
R1 Agricultural - Rear	12.4X28	11.2-24
R3 Turf - Front	Not Published	27x8.5-15, 6PR
R3 Turf - Rear	Not Published	41x14.00, 4PR
R4 Industrial - Front	Not Published	25x8.5-14, 6PR
R4 Industrial - Rear	Not Published	380/70-19.5, 6PR (standard); 15-19.5 (option)
▶Loader & Attachments
Quick Attach Loader System	Skid-steer style quick-attach coupler	BL150C: quick attachment assembly
Loader Model	4550-2L	BL150C
Loader Lift Height	4550-2L: 116.6 in	BL150C: 104.9 in
Loader Lift Capacity (Full Height)	4550-2L: 2,866 lb at pivot pins to full height	BL150C: 2,200 lb
Loader Breakout Force	4550-2L: 4,978 lb at pivot pins	BL150C: 3,422 lb
▶Warranty
Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Find a Mahindra dealer near you→Find a TYM dealer near you→

Mahindra 4540 vs TYM 4215C: Quick Answers

Which has more horsepower, the Mahindra 4540 or the TYM 4215C?

They are effectively tied: both machines are rated at 41 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 4540 or the TYM 4215C?

The TYM 4215C leads on pto hp at 36 hp hp, compared to 31 hp hp for the Mahindra 4540.

Which is heavier, the Mahindra 4540 or the TYM 4215C?

The Mahindra 4540 leads on weight at 4,191 lb lb, compared to 3,644 lb lb for the TYM 4215C.

Which has more loader lift capacity, the Mahindra 4540 or the TYM 4215C?

The Mahindra 4540 leads on loader lift at 2,866 lb lb, compared to 2,200 lb lb for the TYM 4215C.

Which has more three-point hitch lift capacity, the Mahindra 4540 or the TYM 4215C?

The Mahindra 4540 leads on 3-pt lift (24 in) at 3,525 lb lb, compared to 2,425 lb lb for the TYM 4215C.
