Mahindra 5100 vs Mahindra 5545

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5100 leads 5 categories to 3. Machine pages: Mahindra 5100 and Mahindra 5545.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 5100	Mahindra 5545
Engine HP (hp)	▲ 45 hp	43 hp
PTO HP (hp)	▲ 38 hp	34.9 hp
Weight (lb)	5,390 lb	▲ 5,567 lb
Loader Lift (lb)	▲ 3,100 lb	2,950 lb
3-Pt Lift (24 in) (lb)	3,748 lb	▲ 3,969 lb
Lift Height (in)	▲ 122 in	120 in
Breakout Force (lbf)	▲ 5,200 lbf	4,950 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 10.9 gpm

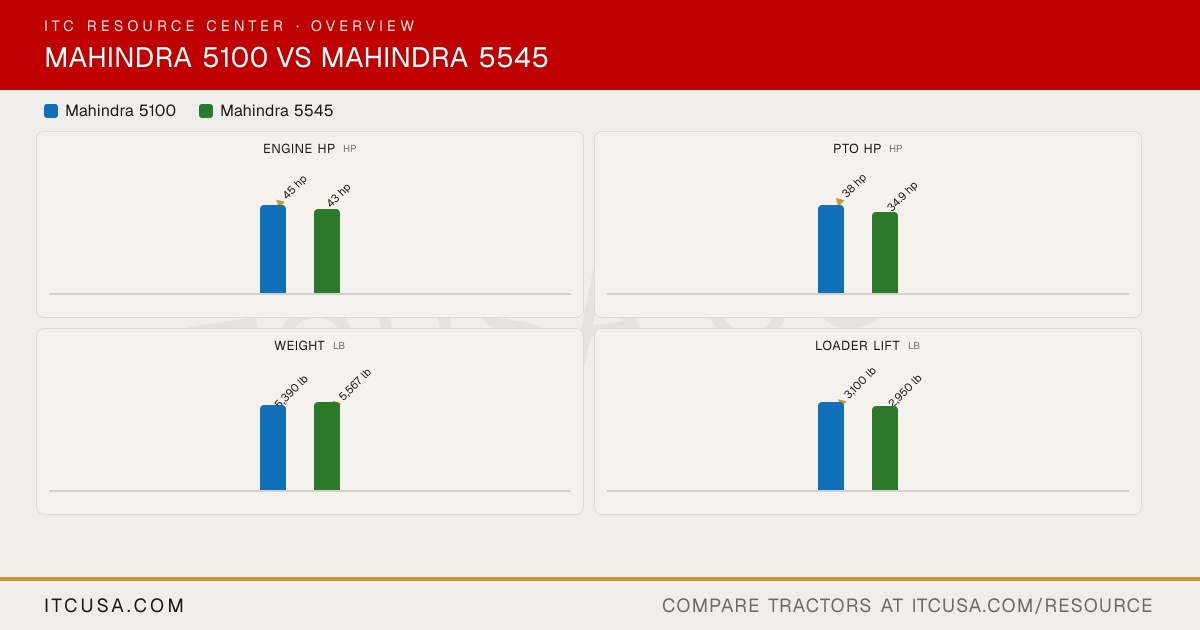

The headline numbers at a glance.

Mahindra 5100Mahindra 5545

Engine HPhp

▲45 hp

43 hp

PTO HPhp

▲38 hp

34.9 hp

Weightlb

5,390 lb

▲5,567 lb

Loader Liftlb

▲3,100 lb

2,950 lb

3-Pt Lift (24 in)lb

3,748 lb

▲3,969 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5100	Mahindra5545


Engine Manufacturer	Mahindra	Mahindra
Engine Model	Not Published	Not Published
Engine Type	5145: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine; 5155: Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine	Four stroke, direct injection, water-cooled diesel
No. of Cylinders	4	3
Displacement	166.2 in³	161.7 in³
Rated Engine Speed	2300 rpm	2300 rpm
Engine Power (Gross)	45 hp	43 hp
PTO Power	38 hp	34.9 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	55 A, 12 V	45 A, 12 V

Pump Type	Open center; adjustable lower links with stabilizer	Not Published
Implement Flow	8.71 gpm	10.9 gpm
Steering Flow	4.62 gpm	5 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	1 (optional second rear valve)	1 (optional)

Fuel Tank Capacity	17.1 gal	12 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2300 rpm; 540E @ 1725 rpm	540 rpm @ 2058 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I & II w/ Telescopic Stabilizers & Flex Links	Category 1 and 2 with telescopic stabilizers
Hitch Lift Capacity	3748 lb	3969 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Position and draft control

Transmission Type	Full Synchromesh with forward/reverse synchro shuttle & constant mesh range	Forward/reverse synchro shuttle with synchro speeds and constant mesh range
No. of Speeds	12F / 12R	8F/8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual Dry with Cerametallic Lining	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Tilt, power-assisted steering	Hydrostatic power
Brakes	Fully-enclosed, 7-in Diameter, Dry Disc	Dry disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	134 in
Overall Width	Not Published	72.5 in
Wheelbase	77.9 in	Not Published
Ground Clearance	5145: 15.2 in; 5155: 16.4 in	Not Published
Min. Turn Radius without Brakes	10.8 ft	10.8 ft
Height to Top of ROPS	60.6 in	93.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	5390 lb	5567 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	9.5 x 20	9.5x20
R1 Agricultural - Rear	14.9 x 28	13.6x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	10.5/80x18	10.5/80x18
R4 Industrial - Rear	16.9 x 24	16.9x24

Quick Attach Loader System	Not Published	Not Published
Loader Model	5155-4L	5545L
Loader Lift Height	5155-4L: 122 in	5545L: 120 in
Loader Lift Capacity (Full Height)	5155-4L: 3100 lb	5545L: 2950 lb
Loader Breakout Force	5155-4L: 5200 lb	5545L: 4950 lb

Warranty Length & Coverage	5-year, 3000-hour limited powertrain warranty	Not Published

Find a Mahindra dealer near you

Mahindra 5100 vs Mahindra 5545: Quick Answers

Which has more horsepower, the Mahindra 5100 or the Mahindra 5545?: The Mahindra 5100 leads on engine hp at 45 hp hp, compared to 43 hp hp for the Mahindra 5545.
Which has more PTO horsepower, the Mahindra 5100 or the Mahindra 5545?: The Mahindra 5100 leads on pto hp at 38 hp hp, compared to 34.9 hp hp for the Mahindra 5545.
Which is heavier, the Mahindra 5100 or the Mahindra 5545?: The Mahindra 5545 leads on weight at 5,567 lb lb, compared to 5,390 lb lb for the Mahindra 5100.
Which has more loader lift capacity, the Mahindra 5100 or the Mahindra 5545?: The Mahindra 5100 leads on loader lift at 3,100 lb lb, compared to 2,950 lb lb for the Mahindra 5545.
Which has more three-point hitch lift capacity, the Mahindra 5100 or the Mahindra 5545?: The Mahindra 5545 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 3,748 lb lb for the Mahindra 5100.

Category Verdict

Spec	Mahindra 5100	Mahindra 5545
Engine HP (hp)	▲ 45 hp	43 hp
PTO HP (hp)	▲ 38 hp	34.9 hp
Weight (lb)	5,390 lb	▲ 5,567 lb
Loader Lift (lb)	▲ 3,100 lb	2,950 lb
3-Pt Lift (24 in) (lb)	3,748 lb	▲ 3,969 lb
Lift Height (in)	▲ 122 in	120 in
Breakout Force (lbf)	▲ 5,200 lbf	4,950 lbf
Hydraulic Flow (gpm)	8.7 gpm	▲ 10.9 gpm

The headline numbers at a glance.

Mahindra 5100Mahindra 5545

Engine HPhp

▲45 hp

43 hp

PTO HPhp

▲38 hp

34.9 hp

Weightlb

5,390 lb

▲5,567 lb

Loader Liftlb

▲3,100 lb

2,950 lb

3-Pt Lift (24 in)lb

3,748 lb

▲3,969 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5100	Mahindra5545


Engine Manufacturer	Mahindra	Mahindra
Engine Model	Not Published	Not Published
Engine Type	5145: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine; 5155: Four-stroke, Turbocharged, Direct Injection, Water Cooled Diesel Engine	Four stroke, direct injection, water-cooled diesel
No. of Cylinders	4	3
Displacement	166.2 in³	161.7 in³
Rated Engine Speed	2300 rpm	2300 rpm
Engine Power (Gross)	45 hp	43 hp
PTO Power	38 hp	34.9 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	55 A, 12 V	45 A, 12 V

Pump Type	Open center; adjustable lower links with stabilizer	Not Published
Implement Flow	8.71 gpm	10.9 gpm
Steering Flow	4.62 gpm	5 gpm
Total Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center, full-live hydraulic with position and draft controls
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	1 (optional second rear valve)	1 (optional)

Fuel Tank Capacity	17.1 gal	12 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm @ 2300 rpm; 540E @ 1725 rpm	540 rpm @ 2058 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I & II w/ Telescopic Stabilizers & Flex Links	Category 1 and 2 with telescopic stabilizers
Hitch Lift Capacity	3748 lb	3969 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Position and draft control

Transmission Type	Full Synchromesh with forward/reverse synchro shuttle & constant mesh range	Forward/reverse synchro shuttle with synchro speeds and constant mesh range
No. of Speeds	12F / 12R	8F/8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dual Dry with Cerametallic Lining	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Tilt, power-assisted steering	Hydrostatic power
Brakes	Fully-enclosed, 7-in Diameter, Dry Disc	Dry disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	134 in
Overall Width	Not Published	72.5 in
Wheelbase	77.9 in	Not Published
Ground Clearance	5145: 15.2 in; 5155: 16.4 in	Not Published
Min. Turn Radius without Brakes	10.8 ft	10.8 ft
Height to Top of ROPS	60.6 in	93.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	5390 lb	5567 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	9.5 x 20	9.5x20
R1 Agricultural - Rear	14.9 x 28	13.6x28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	10.5/80x18	10.5/80x18
R4 Industrial - Rear	16.9 x 24	16.9x24

Quick Attach Loader System	Not Published	Not Published
Loader Model	5155-4L	5545L
Loader Lift Height	5155-4L: 122 in	5545L: 120 in
Loader Lift Capacity (Full Height)	5155-4L: 3100 lb	5545L: 2950 lb
Loader Breakout Force	5155-4L: 5200 lb	5545L: 4950 lb

Warranty Length & Coverage	5-year, 3000-hour limited powertrain warranty	Not Published

Find a Mahindra dealer near you

Mahindra 5100 vs Mahindra 5545: Quick Answers

Which has more horsepower, the Mahindra 5100 or the Mahindra 5545?

The Mahindra 5100 leads on engine hp at 45 hp hp, compared to 43 hp hp for the Mahindra 5545.

Which has more PTO horsepower, the Mahindra 5100 or the Mahindra 5545?

The Mahindra 5100 leads on pto hp at 38 hp hp, compared to 34.9 hp hp for the Mahindra 5545.

Which is heavier, the Mahindra 5100 or the Mahindra 5545?

The Mahindra 5545 leads on weight at 5,567 lb lb, compared to 5,390 lb lb for the Mahindra 5100.

Which has more loader lift capacity, the Mahindra 5100 or the Mahindra 5545?

The Mahindra 5100 leads on loader lift at 3,100 lb lb, compared to 2,950 lb lb for the Mahindra 5545.

Which has more three-point hitch lift capacity, the Mahindra 5100 or the Mahindra 5545?

The Mahindra 5545 leads on 3-pt lift (24 in) at 3,969 lb lb, compared to 3,748 lb lb for the Mahindra 5100.
