Mahindra 5570 vs Mahindra 8560
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

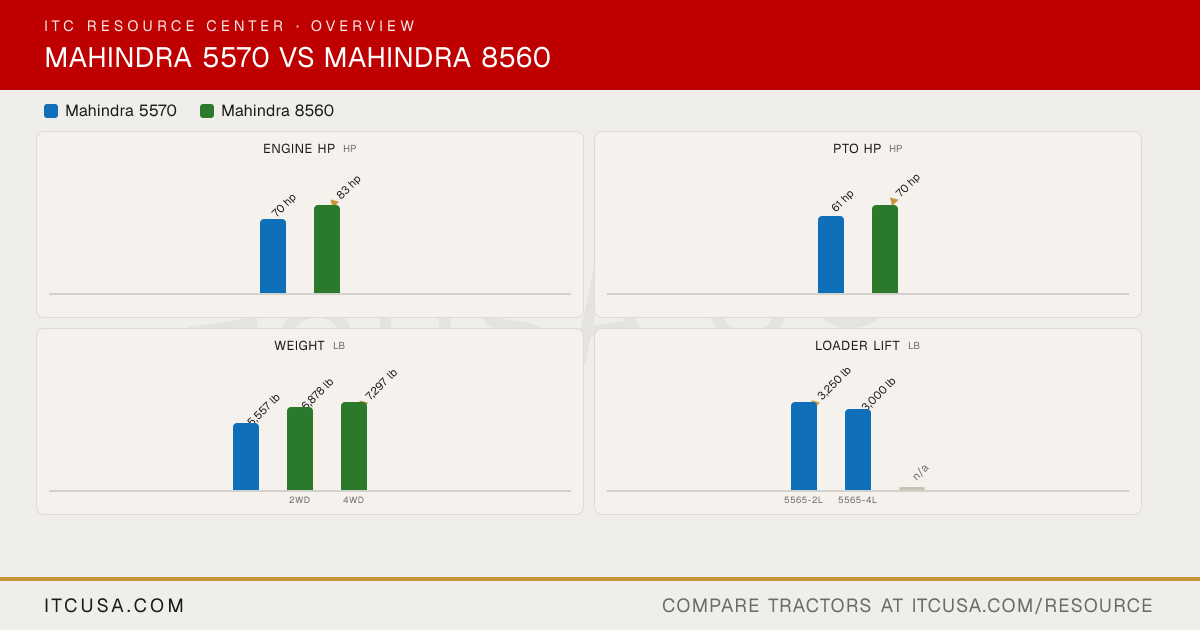

Across 5 measurable specs, the Mahindra 8560 leads 4 categories to 1. Machine pages: Mahindra 5570 and Mahindra 8560.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 5570 | Mahindra 8560 |
|---|---|---|
| Engine HP (hp) | 70 hp | ▲ 83 hp |
| PTO HP (hp) | 61 hp | ▲ 70 hp |
| Weight (lb) | 5,557 lb | ▲ 7,297 lb |
| Loader Lift (lb) | 3,250 lb | n/a |
| 3-Pt Lift (24 in) (lb) | ▲ 3,968 lb | 3,850 lb |
| Lift Height (in) | 128 in | n/a |
| Breakout Force (lbf) | 5,300 lbf | n/a |
| Hydraulic Flow (gpm) | 15.8 gpm | ▲ 22.3 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra5570 | Mahindra8560 |
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|---|---|
| Engine Model | Not Published | NE 479 TCI |
| Engine Type | Four stroke, direct injection, turbo-charged and intercooled diesel | Four Stroke, Turbo Charged, Intercooled, Direct Injection, Water Cooled Diesel Engine |
| No. of Cylinders | 3 | 4 |
| Displacement | 161.5 in³ | 203.2 in³ |
| Rated Engine Speed | 2100 rpm | 2300 rpm |
| Engine Power (Gross) | 70 hp | 83 hp |
| PTO Power | 61 hp | 70 hp |
| Engine Emissions Constraints | Tier 4 | Tier 3 |
| Cooling System Type | Liquid-cooled | Not Published |
| Air Cleaner | Not Published | Dry type with safety cartridge & dust unloader valve |
| Fuel System | Direct injection, turbocharged and intercooled (mCRD common rail) | Rotary FIP with KSB Unit MICO (BOSCH) |
| Alternator | 55 A, 12 V | 55 A, 12 V |
Mahindra 5570 vs Mahindra 8560: Quick Answers
- Which has more horsepower, the Mahindra 5570 or the Mahindra 8560?
- The Mahindra 8560 leads on engine hp at 83 hp hp, compared to 70 hp hp for the Mahindra 5570.
- Which has more PTO horsepower, the Mahindra 5570 or the Mahindra 8560?
- The Mahindra 8560 leads on pto hp at 70 hp hp, compared to 61 hp hp for the Mahindra 5570.
- Which is heavier, the Mahindra 5570 or the Mahindra 8560?
- The Mahindra 8560 leads on weight at 7,297 lb lb, compared to 5,557 lb lb for the Mahindra 5570.
- Which has more three-point hitch lift capacity, the Mahindra 5570 or the Mahindra 8560?
- The Mahindra 5570 leads on 3-pt lift (24 in) at 3,968 lb lb, compared to 3,850 lb lb for the Mahindra 8560.
