| Engine Manufacturer | Mahindra | AGCO Power |
|---|
| Engine Model | VNEM 373 | 33 AWIC |
|---|
| Engine Type | Turbocharged and intercooled, common-rail, liquid-cooled diesel (Tier 4 Final) | 3-cylinder, intercooled turbocharged diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 161.7 in³ | 201.4 in³ |
|---|
| Rated Engine Speed | 2100 rpm | 2200 rpm |
|---|

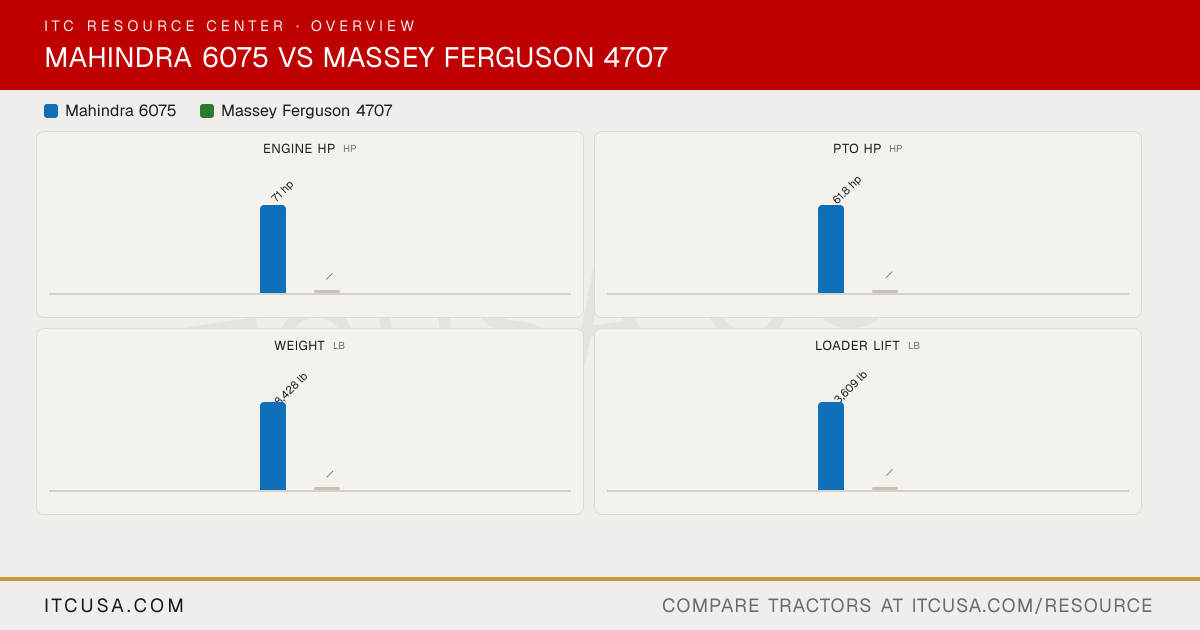

| Engine Power (Gross) | 71 hp | 75 hp |
|---|
| PTO Power | 61 hp | 60 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Liquid cooled |
|---|
| Air Cleaner | Not Published | Dual element (primary and secondary) |
|---|
| Fuel System | Common rail direct injection | High-pressure common rail direct fuel injection |
|---|
| Alternator | Power Shuttle: 55 A; Power Shuttle Cab: 140 A | 80 A |
|---|
|
|---|
| Pump Type | Not Published | Two-stage pump |
|---|
| Implement Flow | 11.1 gpm | Not Published |
|---|
| Steering Flow | 4.6 gpm | Not Published |
|---|
| Total Hydraulic Flow | 15.7 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 15.7 gpm | Not Published |
|---|
| Hydraulic System Type | Open center, position and draft control, telescoping stabilizers and flex links | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 17.2 gpm |
|---|
| No. of Standard Remote Valves | Double auxiliary valves | 2 |
|---|
| No. of Optional Remote Valves | 3rd valve | 1 |
|---|
|
|---|
| Fuel Tank Capacity | 23.8 gal | 33 gal |
|---|
| Coolant Capacity | Not Published | 4.2 gal |
|---|
| Crankcase Capacity | Not Published | 3.3 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive |
|---|
|
|---|
| PTO Type | 2 speed independent push button type 1 PTO (wet clutch) | Independent, electrohydraulic engagement |
|---|
| PTO Rear | 540 @ 1993 rpm and 540E @ 1469 rpm | 540/540E standard; 540/1000 optional |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | CAT I & II | Category II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 5,952 lb | 4,850 lb |
|---|
| Lift Control Type | Position and draft control | Not Published |
|---|
|
|---|
| Transmission Type | Full synchro mesh speed and constant mesh range | 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift |
|---|
| No. of Speeds | 15F / 15R | 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 |
|---|
| Max Travel Speed (Forward) | 21.4 mph | 2WD: 18 mph; 4WD: 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Power shuttle with wet clutch and torsional damper | Wet clutch with easy shift knob and electrohydraulic power shuttle lever |
|---|
| Differential Lock & Limited Slip Options | Not Published | Hydraulic, electronically controlled; rear axle engaged via electrohydraulic rocker switch; 4WD front axle: hydraulic differential lock |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering with tiltable steering column | Cab: tilt and telescopic steering column; Platform: tilt steering column |
|---|
| Brakes | Oil immersed brakes, lever actuated parking brake | Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals |
|---|
| Seat Suspension & Adjustability | mComfort seat with contoured cushions, armrests and adjustable legroom; air-ride suspension seat in cab | Cab: mechanical swiveling seat with armrests, air-suspension swivel seat optional; Platform: mechanical spring-suspension seat with armrests |
|---|
| Front Axle Type | Not Published | Heavy-duty 2WD or 4WD front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 82 in | 60.3 in (minimum, with std. 420/85R30 rear tires) |
|---|
| Wheelbase | 87.4 in | 88.5 in |
|---|
| Ground Clearance | 15.5 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 12.5 ft (3.8 m) | Not Published |
|---|
| Height to Top of ROPS | 106 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 115 in | Not Published |
|---|
| Overall Length | 152.7 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 6,548 lb (6075 Power Shuttle); 7,495 lb (6075 Power Shuttle Cab) | 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb |
|---|
| Weight with ROPS and Loader | 8,428 lb (6,548 + 1,880, computed; 1,604.8 gal loader shipping weight) | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Agricultural, Industrial | Rear: 420/85R30 standard |
|---|
| R1 Agricultural - Front | 11.2 x 24 | 2WD: 9.5L-15; 4WD: 320/85R24 |
|---|
| R1 Agricultural - Rear | 16.9 x 30 | 420/85R30 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 43 x 16-20 | Not Published |
|---|
| R4 Industrial - Rear | 18.4-28 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid steer tool carrier system for ultra-fast attachments hookup | 931X and 936X: universal skid steer type quick release |
|---|
| Loader Model | 6075L | FL.3522, FL.3615, 931X, 936X |
|---|
| Loader Lift Height | Loader 6075L: 133 in | FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | Loader 6075L: 3,609 lb (at pivot pin) | FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) |
|---|
| Loader Breakout Force | Loader 6075L: 5,000 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 5-year limited powertrain warranty | Not Published |
|---|
