Across 5 measurable specs, the Mahindra 8560 leads 4 categories to 1. Machine pages: Mahindra 6530 and Mahindra 8560.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 6530 | Mahindra 8560 |
|---|
| Engine HP (hp) | 65 hp | ▲ 83 hp |
| PTO HP (hp) | 57 hp | ▲ 70 hp |
| Weight (lb) | 6,360 lb | ▲ 7,297 lb |
| Loader Lift (lb) | 4,205 lb | n/a |
| 3-Pt Lift (24 in) (lb) | ▲ 3,968 lb | 3,850 lb |
| Lift Height (in) | 126 in | n/a |
| Breakout Force (lbf) | 6,807 lbf | n/a |
| Hydraulic Flow (gpm) | 11.4 gpm | ▲ 22.3 gpm |

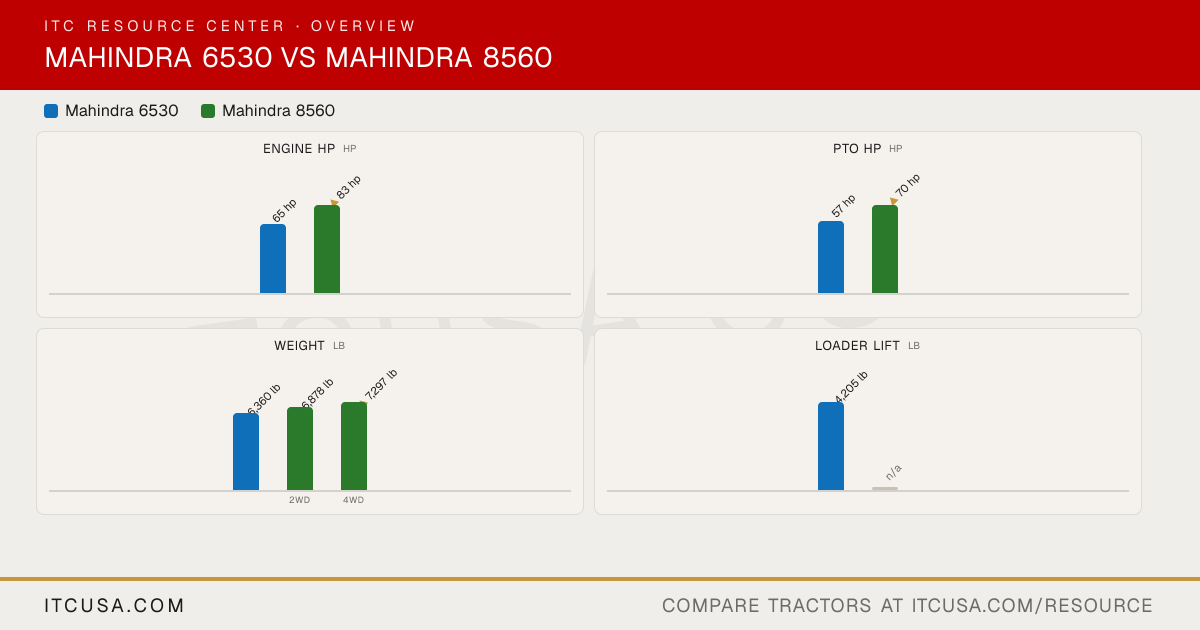

The headline numbers at a glance.
Mahindra 6530Mahindra 8560
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
6,360 lb
6,878 lb
▲7,297 lb
2WD4WD
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra6530 | Mahindra8560 |
|---|
|
|---|
| Engine Manufacturer | Mahindra | Mahindra |
|---|
| Engine Model | Not Published | NE 479 TCI |
|---|
| Engine Type | Four stroke, direct injection, water-cooled, diesel | Four Stroke, Turbo Charged, Intercooled, Direct Injection, Water Cooled Diesel Engine |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 215.5 in³ | 203.2 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2300 rpm |
|---|
| Engine Power (Gross) | 65 hp | 83 hp |
|---|
| PTO Power | 57 hp | 70 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 3 |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Dry type with safety cartridge & dust unloader valve |
|---|
| Fuel System | Direct injection | Rotary FIP with KSB Unit MICO (BOSCH) |
|---|
| Alternator | 36 A, 12 V | 55 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Independent fully 'live' hydraulic pump |
|---|
| Implement Flow | 11.4 gpm | 17 gpm |
|---|
| Steering Flow | 4.8 gpm | 5.3 gpm |
|---|
| Total Hydraulic Flow | Not Published | 22.3 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open centre, full-live hydraulic with position and draft controls | Independent fully live hydraulic pump with Vary-Touch draft and position controls |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 standard | 2 |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 17.1 gal | 19.28 gal |
|---|
| Coolant Capacity | Not Published | 2.58 gal |
|---|
| Crankcase Capacity | Not Published | 9.48 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 8.59 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 1.79 gal |
|---|
|
|---|
| PTO Type | Independent | Rear independent PTO shaft |
|---|
| PTO Rear | 540 rpm @ 2058 rpm | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category 1 & 2 with telescopic check chains | Category II ball joints with adjustable outside lateral stabilizer |
|---|
| Hitch Lift Capacity | 3968 lb | 5500 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | 3850 lb |
|---|
| Lift Control Type | Position and draft control | Position and draft control |
|---|
|
|---|
| Transmission Type | Forward-reverse synchro-shuttle with full synchromesh gearshift | Not Published |
|---|
| No. of Speeds | 8F/8R | 12F / 12R |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dual | Dry Dual Clutch (normally disengaged PTO clutch) |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power | Hydrostatic (Power Steering) |
|---|
| Brakes | Wet disc | Oil immersed, foot operated, independent with interlock for simultaneous operation; hand brake for parking |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145 in | 162.04 in |
|---|
| Overall Width | 81 in | 77.3 in |
|---|
| Wheelbase | Not Published | 2WD: 85.31 in; 4WD: 85.8 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | 13.75 ft | 2WD: 157 in; 4WD: 180 in |
|---|
| Height to Top of ROPS | Not Published | 2WD: 89.5 in; 4WD: 94.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 6360 lb | 2WD: 6878 lb; 4WD: 7297 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | 12.5/80x18 | Not Published |
|---|
| R4 Industrial - Rear | 19.5Lx24 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | ML3070 | Not Published |
|---|
| Loader Lift Height | ML3070: 126 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | ML3070: 4205 lb | Not Published |
|---|
| Loader Breakout Force | ML3070: 6807 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Mahindra 6530 vs Mahindra 8560: Quick Answers
- Which has more horsepower, the Mahindra 6530 or the Mahindra 8560?
- The Mahindra 8560 leads on engine hp at 83 hp hp, compared to 65 hp hp for the Mahindra 6530.
- Which has more PTO horsepower, the Mahindra 6530 or the Mahindra 8560?
- The Mahindra 8560 leads on pto hp at 70 hp hp, compared to 57 hp hp for the Mahindra 6530.
- Which is heavier, the Mahindra 6530 or the Mahindra 8560?
- The Mahindra 8560 leads on weight at 7,297 lb lb, compared to 6,360 lb lb for the Mahindra 6530.
- Which has more three-point hitch lift capacity, the Mahindra 6530 or the Mahindra 8560?
- The Mahindra 6530 leads on 3-pt lift (24 in) at 3,968 lb lb, compared to 3,850 lb lb for the Mahindra 8560.
