Across 5 measurable specs, this matchup is a dead heat: 2 categories to the Mahindra 8090, 2 to the New Holland Workmaster 90 PLUS, 1 tied. Machine pages: Mahindra 8090 and New Holland Workmaster 90 PLUS .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

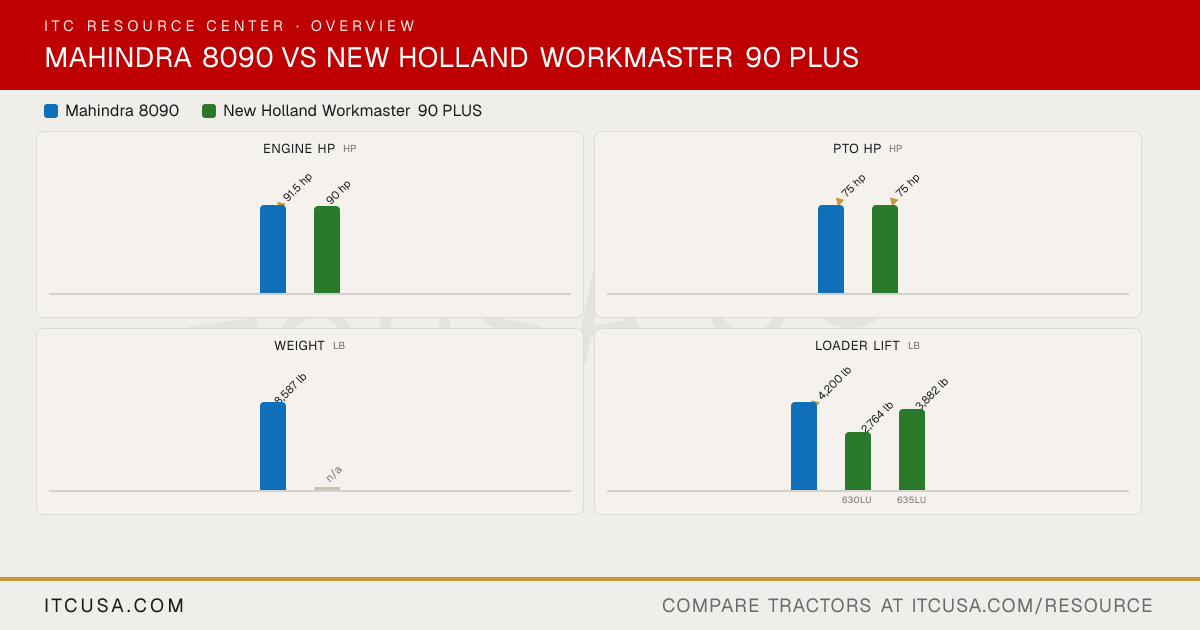

Category Verdict Spec Mahindra 8090 New Holland Workmaster 90 PLUS Engine HP (hp) ▲ 91.5 hp90 hp PTO HP (hp) 75 hp 75 hp Weight (lb) 8,587 lb n/a Loader Lift (lb) ▲ 4,200 lb3,882 lb 3-Pt Lift (24 in) (lb) 5,500 lb n/a Lift Height (in) 139 in ▲ 143.9 inBreakout Force (lbf) 6,050 lbf n/a Hydraulic Flow (gpm) 22.2 gpm ▲ 26.6 gpm
Overview Loader Work PTO Work
The headline numbers at a glance.
Mahindra 8090 New Holland Workmaster 90 PLUS
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Loader Lift lb
▲ 4,200 lb
2,764 lb
3,882 lb
630LU 635LU
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Mahindra 8090 New Holland Workmaster 90 PLUS
▶ EngineEngine Manufacturer Mahindra FPT Engine Model Not Published F36 Engine Type Four-stroke, turbocharged, direct injection, water-cooled diesel 4-cylinder No. of Cylinders 4 4 Displacement 215.4 in³ Not Published Rated Engine Speed 2300 rpm Not Published Engine Power (Gross) 91.5 hp 90 hp PTO Power 75 hp 75 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Not Published Air Cleaner Not Published Not Published Fuel System Common rail direct injection Not Published Alternator 140 A Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 17 gpm Not Published Steering Flow 5.2 gpm Not Published Total Hydraulic Flow 22.2 gpm 26.6 gpm Overall Hydraulic Pump Flow 22.2 gpm Not Published Hydraulic System Type Open center with position and draft control Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves 3rd valve optional Not Published ▶ Fluid CapacityFuel Tank Capacity 25.9 gal 34.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type 2-speed independent single lever PTO Not Published PTO Rear 540/1000 rpm Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT II with telescoping stabilizers & flex links Not Published Hitch Lift Capacity 5,500 lb Not Published Hitch Lift Capacity (at 24”) Not Published Not Published Lift Control Type Position and draft control Not Published ▶ Transmission & DrivetrainTransmission Type Full synchro mesh with forward/reverse power shuttle and constant-mesh range 12x12 electronic power shuttle No. of Speeds 12F / 12R 12 forward / 12 reverse Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Power shuttle with torsional damper (wet) Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Steel frame Not Published Steering Power steering Not Published Brakes Oil-immersed brakes, 7-in disc, mechanically actuated Not Published Seat Suspension & Adjustability Seat with integrated folding armrests, recline, and air-suspension standard Air ride seat (standard); instructor seat available Front Axle Type Not Published Class 1.0 HD heavy-duty front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 83 in Not Published Wheelbase 95.6 in Not Published Ground Clearance 14.1 in Not Published Min. Turn Radius without Brakes 15.5 ft Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 111.2 in Not Published Overall Length 176.6 in Not Published ▶ WeightTractor Weight (Base) 8,587 lb Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front 12.4 x 24 Not Published R1 Agricultural - Rear 18.4 x 30 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid steer style quick attach Not Published Loader Model 8100CL 630LU; 635LU Loader Lift Height 8100CL: 139 in 143.9 in (630LU and 635LU) Loader Lift Capacity (Full Height) 8100CL: 4,200 lb (at pivot pin) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, at 31.5 in) Loader Breakout Force 8100CL: 6,050 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
Mahindra 8090 vs New Holland Workmaster 90 PLUS: Quick Answers
Which has more horsepower, the Mahindra 8090 or the New Holland Workmaster 90 PLUS? The Mahindra 8090 leads on engine hp at 91.5 hp hp, compared to 90 hp hp for the New Holland Workmaster 90 PLUS.
Which has more PTO horsepower, the Mahindra 8090 or the New Holland Workmaster 90 PLUS? They are effectively tied: both machines are rated at 75 hp hp for pto hp.
Which has more loader lift capacity, the Mahindra 8090 or the New Holland Workmaster 90 PLUS? The Mahindra 8090 leads on loader lift at 4,200 lb lb, compared to 3,882 lb lb for the New Holland Workmaster 90 PLUS.
