Mahindra 8560 vs Mahindra mForce 105
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 5 measurable specs, the Mahindra mForce 105 leads 4 categories to 1. Machine pages: Mahindra 8560 and Mahindra mForce 105.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

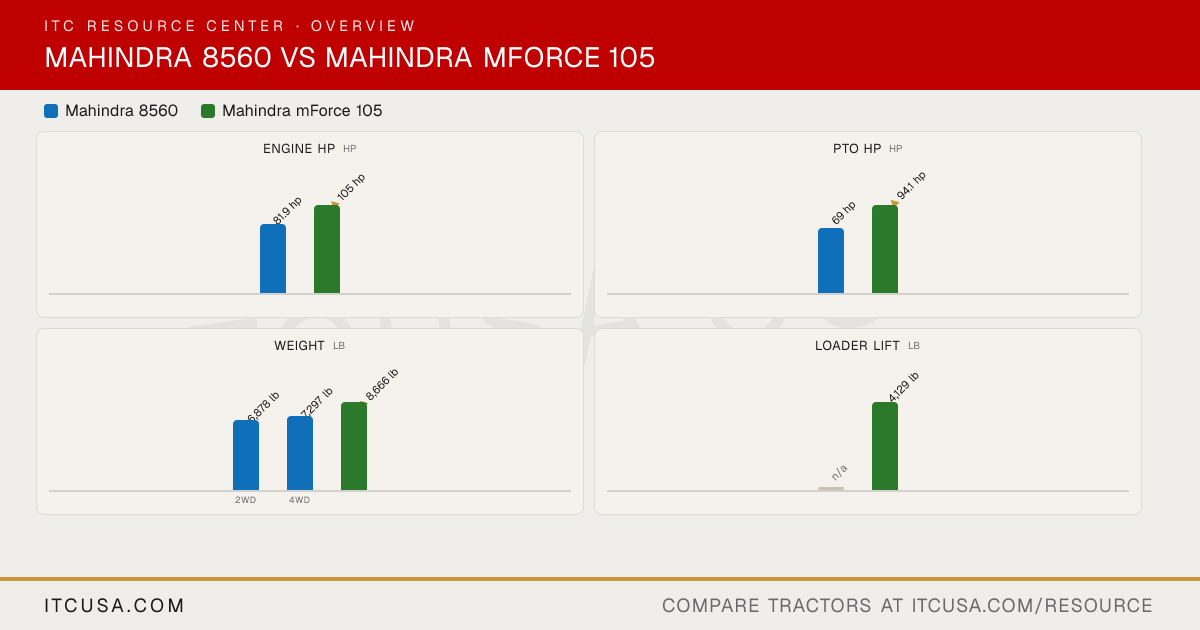

Category Verdict
| Spec | Mahindra 8560 | Mahindra mForce 105 |
|---|---|---|
| Engine HP (hp) | 81.9 hp | ▲ 105 hp |
| PTO HP (hp) | 69 hp | ▲ 94.1 hp |
| Weight (lb) | 7,297 lb | ▲ 8,666 lb |
| Loader Lift (lb) | n/a | 4,129 lb |
| 3-Pt Lift (24 in) (lb) | 3,850 lb | ▲ 6,860 lb |
| Lift Height (in) | n/a | 141.7 in |
| Breakout Force (lbf) | n/a | 6,025 lbf |
| Hydraulic Flow (gpm) | ▲ 22.3 gpm | 15.6 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra8560 | MahindramForce 105 |
|---|
| Engine Manufacturer | Mahindra | Doosan |
|---|---|---|
| Engine Model | NE 479 TCI | Not Published |
| Engine Type | Turbocharged and intercooled, direct injection, liquid-cooled diesel | Turbocharged and intercooled, direct injection diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 203.2 in³ | 208 in³ |
| Rated Engine Speed | 2300 rpm | 2300 rpm |
| Engine Power (Gross) | 81.9 hp | 105 hp |
| PTO Power | 69 hp | 94.1 hp |
| Engine Emissions Constraints | Tier 3 | Tier 4 |
| Cooling System Type | Not Published | Liquid-cooled |
| Air Cleaner | Dry type with safety cartridge & dust unloader valve | Not Published |
| Fuel System | Rotary FIP with KSB Unit MICO (BOSCH) | Direct injection |
| Alternator | 55 A, 12 V | 85 A |
Mahindra 8560 vs Mahindra mForce 105: Quick Answers
- Which has more horsepower, the Mahindra 8560 or the Mahindra mForce 105?
- The Mahindra mForce 105 leads on engine hp at 105 hp hp, compared to 81.9 hp hp for the Mahindra 8560.
- Which has more PTO horsepower, the Mahindra 8560 or the Mahindra mForce 105?
- The Mahindra mForce 105 leads on pto hp at 94.1 hp hp, compared to 69 hp hp for the Mahindra 8560.
- Which is heavier, the Mahindra 8560 or the Mahindra mForce 105?
- The Mahindra mForce 105 leads on weight at 8,666 lb lb, compared to 7,297 lb lb for the Mahindra 8560.
- Which has more three-point hitch lift capacity, the Mahindra 8560 or the Mahindra mForce 105?
- The Mahindra mForce 105 leads on 3-pt lift (24 in) at 6,860 lb lb, compared to 3,850 lb lb for the Mahindra 8560.
