| Engine Manufacturer | Mahindra | FPT |
|---|
| Engine Model | Not Published | NEF4 |
|---|
| Engine Type | 4-cylinder, liquid-cooled inline diesel | 4-cylinder diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 215.6 in³ | 273 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|

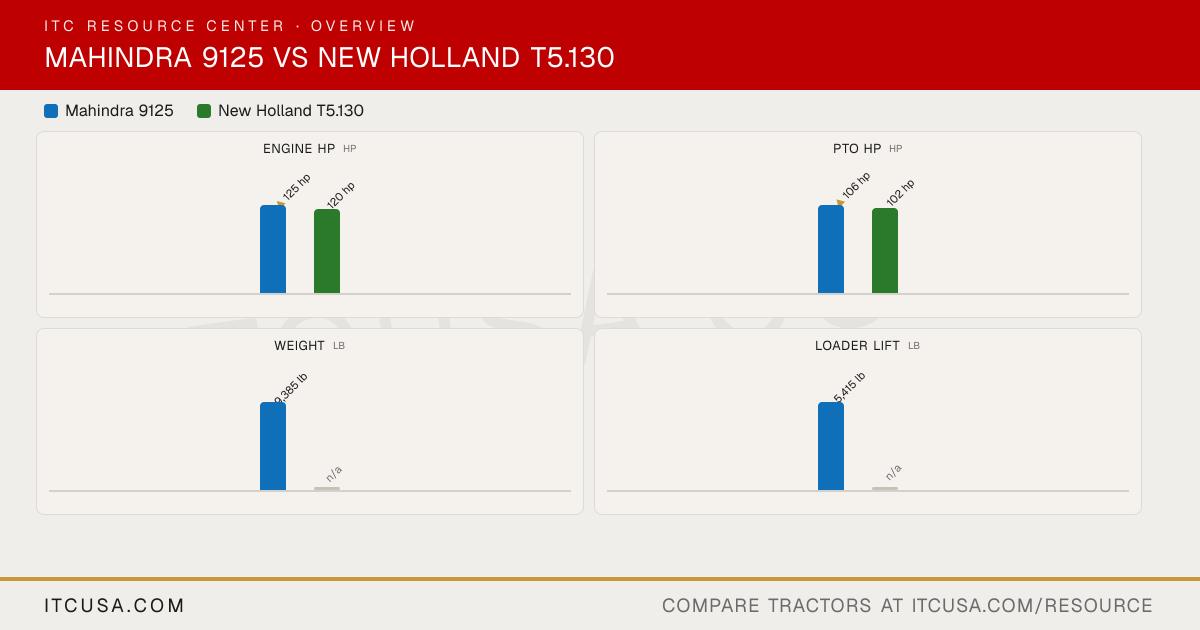

| Engine Power (Gross) | 125 hp | 120 hp |
|---|
| PTO Power | 106 hp | 102 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Stage V |
|---|
| Cooling System Type | Liquid-cooled | Liquid cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common Rail Diesel Technology (mCRD) | Not Published |
|---|
| Alternator | Not Published | 120 A |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 21.2 gpm | 21.1 gpm (29 gpm MegaFlow CCLS pump optional) |
|---|
| Steering Flow | 9.25 gpm | 9.6 gpm |
|---|
| Total Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center, position and draft control, telescoping stabilizers and flex links | Closed center load sensing (CCLS) |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 (9125 S); 3 (9125 P) | Not Published |
|---|
| No. of Optional Remote Valves | One (3rd outlet on S models; 4th outlet on P model) | Up to 4 rear (up to 3 mid-mount) |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | 47.5 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Direct-drive PTO with push-pull engagement and Soft Start |
|---|
| PTO Rear | 540 @ 2220 rpm, 1000 @ 2227 rpm (9125 S); 540 @ 2220 rpm, 750 @ 2208 rpm, 1000 @ 2227 rpm (9125 P) | 540/540E/1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with telescopic link ends | Category II |
|---|
| Hitch Lift Capacity | Not Published | 12,125 lb (at ball ends) |
|---|
| Hitch Lift Capacity (at 24”) | 5,787 lb (9125 S); 7,628 lb (9125 P) | 10,228 lb |
|---|
| Lift Control Type | Electronic draft control with fender switches | Electronic Draft Control (EDC) |
|---|
|
|---|
| Transmission Type | Power shuttle with synchromesh | Dynamic Command: 24x24 dual-clutch 8-step semi-powershift; Auto Command: continuously variable (CVT) |
|---|
| No. of Speeds | 12F / 12R (9125 S); 24F / 24R + 8 creepers (9125 P) | Dynamic Command: 24F/24R; Auto Command: continuously variable |
|---|
| Max Travel Speed (Forward) | Not Published | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Terralock automatic differential lock and automatic 4WD (standard) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Power steering |
|---|
| Brakes | Wet disc | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Seat with adjustable air-suspension, folding adjustable armrest, recline and adjustable headrest | Standard: low-frequency suspension seat; optional: heated seat with dynamic damping, or heated and ventilated semi-active-suspension seat |
|---|
| Front Axle Type | Not Published | Class 1.75 heavy-duty 4WD front axle; Terraglide suspension optional |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 91.3 in | 90 in standard (74 in minimum, narrow) |
|---|
| Wheelbase | Not Published | 98 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | 182 in |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 107 in | 106 in (low-profile roof, 540/65R34 tires) |
|---|
| Overall Length | 169.3 in | 173 in (max, weight carrier to rear linkage) |
|---|
|
|---|
| Tractor Weight (Base) | 9,385 lb | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid steer style quick attach couplers | Skid-steer style or European style attachment system |
|---|
| Loader Model | 9125L | 800TL Series wide-frame loader (NSL or MSL) |
|---|
| Loader Lift Height | 162 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 5,415 lb (at pivot pin) | Not Published |
|---|
| Loader Breakout Force | 6,874 lb (at pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
