| Engine Manufacturer | Mahindra | FPT |
|---|
| Engine Model | Not Published | NEF |
|---|
| Engine Type | 4-cylinder, liquid-cooled inline diesel | 4-cylinder, 16-valve, turbocharged, air-to-air intercooled diesel with high-pressure common rail |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 215.6 in³ | 274 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|

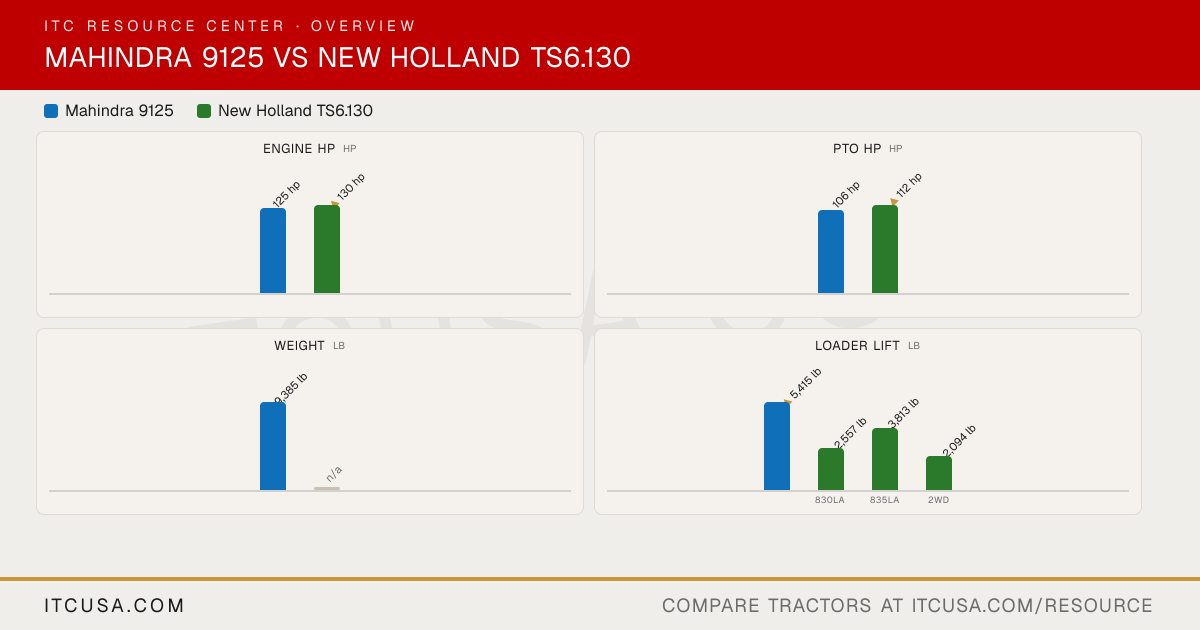

| Engine Power (Gross) | 125 hp | 130 hp |
|---|
| PTO Power | 106 hp | 112 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common rail direct injection | High-pressure common rail fuel injection |
|---|
| Alternator | Not Published | 120 A |
|---|
|
|---|
| Pump Type | Not Published | Fixed displacement pumps (steering, implement, auxiliary) with combining/diverter valve |
|---|
| Implement Flow | 21.2 gpm | 19 gpm (combined implement and auxiliary pump flow) |
|---|
| Steering Flow | 9.25 gpm | 9 gpm |
|---|
| Total Hydraulic Flow | Not Published | 28 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 28 gpm |
|---|
| Hydraulic System Type | Open center with position & draft control, telescoping stabilizers & flex links | Fixed displacement pumps with combining/diverter valve; deluxe closed-center rear remote valves with flow control |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 (9125 S); 3 (9125 P) | Not Published |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | 57.5 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Not Published |
|---|
| PTO Rear | 540 @ 2220 rpm, 1000 @ 2227 rpm (9125 S); 540 @ 2220 rpm, 750 @ 2208 rpm, 1000 @ 2227 rpm (9125 P) | 540/1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with telescopic link ends | Category II (flex link ends) |
|---|
| Hitch Lift Capacity | Not Published | 3,735 lb (ASAE); 5,499 lb with one optional auxiliary lift cylinder; 7,326 lb with two |
|---|
| Hitch Lift Capacity (at 24”) | 5,787 lb (9125 S); 7,628 lb (9125 P) | Not Published |
|---|
| Lift Control Type | Electronic draft control with fender switches | Not Published |
|---|
|
|---|
| Transmission Type | Power shuttle with synchromesh | 8x8 synchronized power shuttle (hydraulic, left-hand) standard; 16x8 Dual Power synchronized hydraulic shuttle with Hi-Lo (premium); 10:1 creeper optional |
|---|
| No. of Speeds | 12F / 12R (9125 S); 24F / 24R + 8 creepers (9125 P) | 8F/8R (base); 16F/8R (premium Dual Power with Hi-Lo) |
|---|
| Max Travel Speed (Forward) | Not Published | 19 mph or 25 mph (25 mph 4WD only) |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Not Published |
|---|
| Brakes | Wet disc | Not Published |
|---|
| Seat Suspension & Adjustability | mComfort seat with adjustable air ride suspension, foldable adjustable armrest, recline and adjustable headrest | Mechanical suspension seat standard; deluxe air suspension seat with swivel and full-size cushioned instructor seat optional (VisionView cab) |
|---|
| Front Axle Type | Not Published | Heavy-duty front axle, 2WD or 4WD (both optional, cab only) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 169.3 in | 184.7 in (4WD, with front weights); 184.5 in (2WD, with front weights) |
|---|
| Overall Width | 90.9 in | Not Published |
|---|
| Wheelbase | Not Published | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 107 in | 110.2 in |
|---|
|
|---|
| Tractor Weight (Base) | 9,385 lb | 11,200 lb (shipping, 4WD, cab, flange axle); 12,192 lb (4WD, cab, bar axle); 9,921 lb (2WD, cab) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | 18.4-38 R1 rear with 14.9-28 R1 front (4WD) or 10.00-16 front (2WD) |
|---|
| R1 Agricultural - Front | Not Published | 14.9-28 (4WD); 10.00-16 (2WD) |
|---|
| R1 Agricultural - Rear | Not Published | 18.4-38 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid steer style quick attach couplers | Skid steer (SSL) or Euro style attachment couplers |
|---|
| Loader Model | 9125L | 4WD: 830LA (NSL), 835LA (MSL); 2WD: 810LA (NSL) |
|---|
| Loader Lift Height | 9125L: 162 in | 830LA: 150.0 in; 835LA: 150.0 in; 810LA (2WD): 144.0 in (to pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | 9125L: 5,415 lb | 830LA: 2,557 lb; 835LA: 3,813 lb; 810LA (2WD): 2,094 lb (to maximum height, measured 31.5 in forward of the pivot pin) |
|---|
| Loader Breakout Force | 9125L: 6,874 lb | 830LA: 3,681 lb; 835LA: 3,968 lb; 810LA (2WD): 3,020 lb (measured 31.5 in forward of the pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
