Across 8 measurable specs, the TYM T130 leads 5 categories to 1 (2 tied). Machine pages: Mahindra 9125 and TYM T130.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 9125 | TYM T130 |
|---|
| Engine HP (hp) | 125 hp | ▲ 127 hp |
| PTO HP (hp) | 106 hp | ▲ 118 hp |
| Weight (lb) | 9,385 lb | ▲ 10,020 lb |
| Loader Lift (lb) | 5,415 lb | 5,415 lb |
| 3-Pt Lift (24 in) (lb) | 5,787 lb | ▲ 8,014 lb |
| Lift Height (in) | 162 in | 162 in |
| Breakout Force (lbf) | ▲ 6,874 lbf | 6,618 lbf |
| Hydraulic Flow (gpm) | 21.2 gpm | ▲ 29.2 gpm |
| Travel Speed (mph) | n/a | 23 mph |

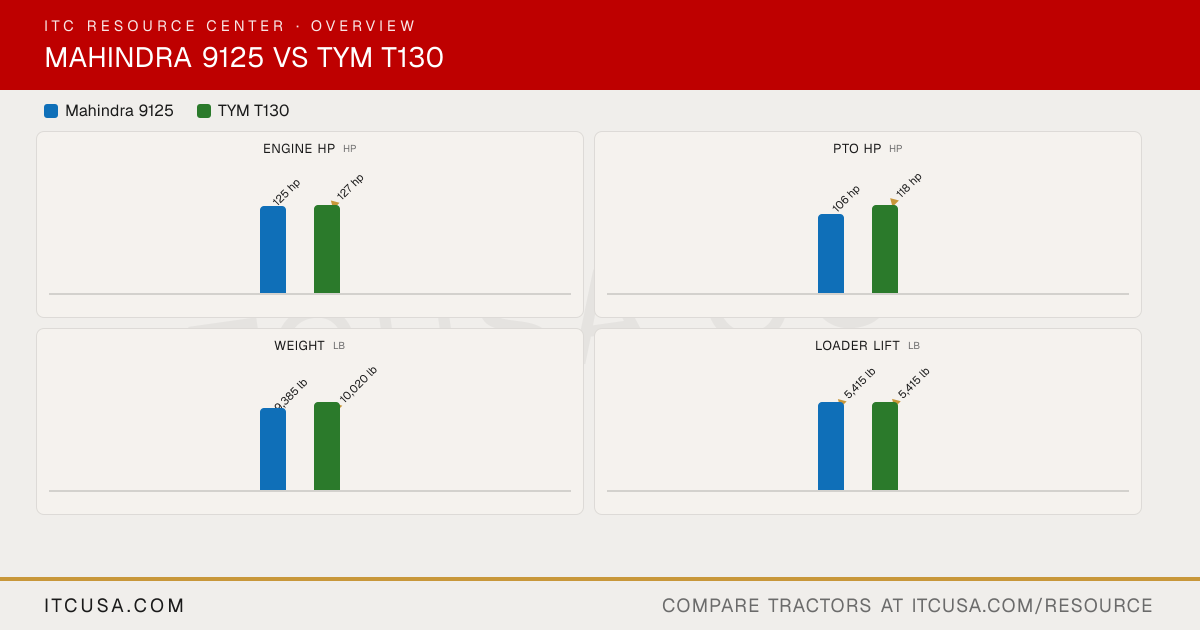

The headline numbers at a glance.
Mahindra 9125TYM T130
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
|
|---|
| Engine Manufacturer | Mahindra | Deutz |
|---|
| Engine Model | Not Published | TCD3.6L4 |
|---|
| Engine Type | 4-cylinder, liquid-cooled inline diesel | Water-cooled, 4-cylinder diesel engine |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 215.6 in³ | 221 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2200 rpm |
|---|
| Engine Power (Gross) | 125 hp | 127 hp |
|---|
| PTO Power | 106 hp | 118 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Water-cooled |
|---|
| Air Cleaner | Not Published | Dual dry |
|---|
| Fuel System | Common rail direct injection | CRDI |
|---|
| Alternator | Not Published | 120 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Dual gear pump |
|---|
| Implement Flow | 21.2 gpm | 20.1 gpm |
|---|
| Steering Flow | 9.25 gpm | 9.1 gpm |
|---|
| Total Hydraulic Flow | Not Published | 29.2 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 29.2 gpm |
|---|
| Hydraulic System Type | Open center, position and draft control, telescoping stabilizers and flex links | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 (9125 S); 3 (9125 P) | 6 |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | Not Published | 50.2 gal |
|---|
| Coolant Capacity | Not Published | 19.1 qt |
|---|
| Crankcase Capacity | Not Published | 8.5 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 26.9 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 6.3 qt |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 @ 2220 rpm, 1000 @ 2227 rpm (9125 S); 540 @ 2220 rpm, 750 @ 2208 rpm, 1000 @ 2227 rpm (9125 P) | 540/540E/1000 rpm (Reversible shaft) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II with telescopic link ends | Category II |
|---|
| Hitch Lift Capacity | Not Published | 8,261 lb |
|---|
| Hitch Lift Capacity (at 24”) | 5,787 lb (9125 S); 7,628 lb (9125 P) | 8,014 lb |
|---|
| Lift Control Type | Electronic draft control with fender switches | Position/Draft |
|---|
|
|---|
| Transmission Type | Power shuttle with synchromesh | Power shuttle & 6-speed shift APS |
|---|
| No. of Speeds | 12F / 12R (9125 S); 24F / 24R + 8 creepers (9125 P) | F36 x R36 w/Creep |
|---|
| Max Travel Speed (Forward) | Not Published | 23 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Wet Multi Plate |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Hydrostatic |
|---|
| Brakes | Wet disc | Wet, Multi disc |
|---|
| Seat Suspension & Adjustability | Seat with adjustable air-suspension, folding adjustable armrest, recline and adjustable headrest | Air-ride full suspension seat |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 169.3 in | 176.8 in |
|---|
| Overall Width | 90.9 in | 92.9 in |
|---|
| Wheelbase | Not Published | 102 in |
|---|
| Ground Clearance | Not Published | 16.1 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 186.6 in (left); 189 in (right) |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 107 in | 115.7 in |
|---|
|
|---|
| Tractor Weight (Base) | 9,385 lb | 10,020 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | Not Published | 380/85 R28 |
|---|
| R1 Agricultural - Rear | Not Published | 460/85 R38 (18.4R38) |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid steer style quick attach couplers | Not Published |
|---|
| Loader Model | 9125L | TL130SL |
|---|
| Loader Lift Height | 9125L: 162 in | TL130SL: 162 in |
|---|
| Loader Lift Capacity (Full Height) | 9125L: 5,415 lb | TL130SL: 5,415 lb |
|---|
| Loader Breakout Force | 9125L: 6,874 lb | TL130SL: 6,618 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months |
|---|
Mahindra 9125 vs TYM T130: Quick Answers
- Which has more horsepower, the Mahindra 9125 or the TYM T130?
- The TYM T130 leads on engine hp at 127 hp hp, compared to 125 hp hp for the Mahindra 9125.
- Which has more PTO horsepower, the Mahindra 9125 or the TYM T130?
- The TYM T130 leads on pto hp at 118 hp hp, compared to 106 hp hp for the Mahindra 9125.
- Which is heavier, the Mahindra 9125 or the TYM T130?
- The TYM T130 leads on weight at 10,020 lb lb, compared to 9,385 lb lb for the Mahindra 9125.
- Which has more loader lift capacity, the Mahindra 9125 or the TYM T130?
- They are effectively tied: both machines are rated at 5,415 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Mahindra 9125 or the TYM T130?
- The TYM T130 leads on 3-pt lift (24 in) at 8,014 lb lb, compared to 5,787 lb lb for the Mahindra 9125.
