Mahindra eMax 25L vs Mahindra Max 25XL

Across 8 measurable specs, the Mahindra Max 25XL leads 4 categories to 1 (3 tied). Machine pages: Mahindra eMax 25L and Mahindra Max 25XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

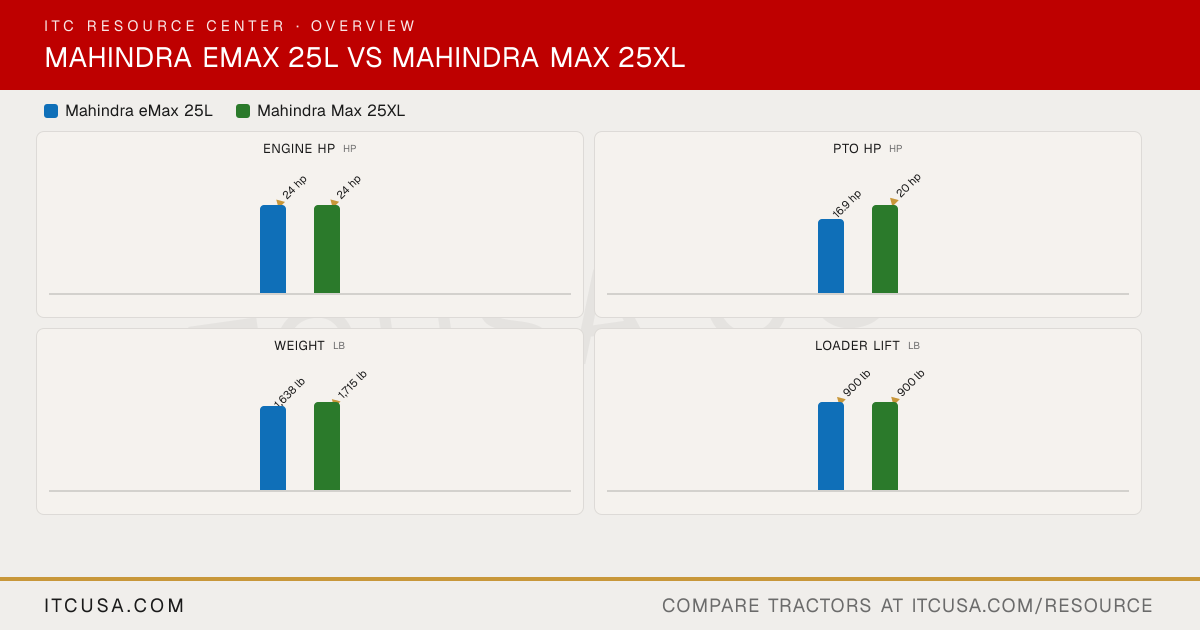

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 25L	MahindraMax 25XL

▶Engine
Engine Manufacturer	Kukje	Mitsubishi
Engine Model	A1100N2	S3L2
Engine Type	Naturally aspirated, indirect injection, liquid-cooled diesel	Naturally aspirated, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	80.4 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	16.9 hp	20 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water Cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Indirect Injection
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	4.5 gpm	4.6 gpm
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7.1 gpm	7.3 gpm
Overall Hydraulic Pump Flow	7.1 gpm	7.3 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	6.1 gal
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.3 qt	Not Published
Transmission / Hydraulic System Capacity	15.3 qt	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 @ 2550 rpm	540 @ 2376 rpm
Mid-PTO Availability	Available; 2000 @ 2550 rpm	Standard; 2000 @ 2556 rpm
Category, 3-Point Hitch	CAT I with Check Chains	CAT I
Hitch Lift Capacity	1,323 lb	1,354 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Not Published
▶Transmission & Drivetrain
Transmission Type	HST - 2 range	HST - 2 ranges
No. of Speeds	Infinite	Infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Dry - Single
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	100.5 in	106.1 in
Overall Width	45.8 in	50.7 in
Wheelbase	57.5 in	58.2 in
Ground Clearance	9.4 in	7.2 in
Min. Turn Radius without Brakes	7.2 ft	7.2 ft
Height to Top of ROPS	91.3 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	78.2 in	Not Published
▶Weight
Tractor Weight (Base)	1,638 lb	1,715 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,419 lb (1,870 + 549, computed; 25LSK loader shipping weight)	Not Published
▶Tire Options
Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	Not Published
R1 Agricultural - Front	6x12	6x12
R1 Agricultural - Rear	9.5x16	9.5x16
R3 Turf - Front	20x8-10	20x8-10
R3 Turf - Rear	29x12.5-15	29x12.5-15
R4 Industrial - Front	20x8-10	20x8-10
R4 Industrial - Rear	27x12.5-15	27x12.5-15
▶Loader & Attachments
Quick Attach Loader System	25LSK: Skid steer style quick coupler, standard	Not Published
Loader Model	25LSK	MXL25L
Loader Lift Height	25LSK: 75.3 in	MXL25L: 75 in
Loader Lift Capacity (Full Height)	25LSK: 900 lb	MXL25L: 900 lb (at pivot pin)
Loader Breakout Force	25LSK: 2,000 lb	MXL25L: 2,000 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Not Published
▶ITC Company Accessories
Accessories that fit	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99

Find a Mahindra dealer near you→

Mahindra eMax 25L vs Mahindra Max 25XL: Quick Answers

Which has more horsepower, the Mahindra eMax 25L or the Mahindra Max 25XL?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra eMax 25L or the Mahindra Max 25XL?

The Mahindra Max 25XL leads on pto hp at 20 hp hp, compared to 16.9 hp hp for the Mahindra eMax 25L.

Which is heavier, the Mahindra eMax 25L or the Mahindra Max 25XL?

The Mahindra Max 25XL leads on weight at 1,715 lb lb, compared to 1,638 lb lb for the Mahindra eMax 25L.

Which has more loader lift capacity, the Mahindra eMax 25L or the Mahindra Max 25XL?

They are effectively tied: both machines are rated at 900 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra eMax 25L or the Mahindra Max 25XL?

The Mahindra Max 25XL leads on 3-pt lift (24 in) at 1,354 lb lb, compared to 1,323 lb lb for the Mahindra eMax 25L.
