Mahindra eMax 25L vs Mahindra Max 26XL

Across 8 measurable specs, the Mahindra Max 26XL leads 8 categories to 0. Machine pages: Mahindra eMax 25L and Mahindra Max 26XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 25L	MahindraMax 26XL

▶Engine
PTO Power	16.9 hp	21.7 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
Fuel System	Indirect Injection	Indirect Injection
Displacement	71.7 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Kukje Machinery	Mitsubishi
Engine Power (Gross)	24 hp @ 600 rpm	25.9 hp @ 500 rpm
Engine Emissions Constraints	Complies with US TIER-4 Final Norms	No DPF
▶Weight
Weight with ROPS and Loader	Not Applicable	2600 lb
Weight with Cab and Loader	2419 lb	Not Applicable
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	2.6 gpm	2.7 gpm
Implement Flow	4.5 gpm	5.8 gpm
Total Hydraulic Flow	7.1 gpm	8.5 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	7.1 gpm	8.5 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 @ 2550 rpm	540 rpm @ 2376 rpm
PTO Type	Independent	Live
Lift Control Type	Position Control	Position Control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Available; 2000 @ 2550 rpm	Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch	CAT I with Check Chains	CAT I
Hitch Lift Capacity (at 24”)	1323 lb	2315 lb
▶Tire Options
R3 Turf - Rear	29X12.5-15	33X12.5-15
R3 Turf - Front	20X8-10	23X8.5-12
Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	27X12.5-15	12-16.5
R4 Industrial - Front	20X18-10	23X8.50-12
R1 Agricultural - Rear	9.5X16	9.5-16
R1 Agricultural - Front	6X12	7.0-12
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	5.8 gal	6.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Lift Height	75.3 in	82.7 in
Loader Breakout Force	2000 lb	2690 lb
Quick Attach Loader System	25LSK: Standard skid-steer style loader couplers (Quick Attach Couplers) for fast, easy front implement connection.	MXLT6.9 gal: Quick-Attach Adapter (included)
Loader Lift Capacity (Full Height)	900 lb (at pivot pin)	1402 lb
▶Transmission & Drivetrain
Clutch	Dry-Single	Dry-Single
No. of Speeds	Infinite / 2 ranges	Infinite / 2 Ranges
Transmission Type	HST	HST
Max Travel Speed (Forward)	Not Published	10.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published
▶Chassis, Steering & Controls
Brakes	Wet Disc	Wet Disc
Steering	Power Steering	Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	57.5 in	63.2 in
Overall Width	45.8 in	54.3 in
Ground Clearance	9.4 in	11.4 in
Height to Top of ROPS	Not Applicable	84.3 in
Height to Top of Cab Model	78.2 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	100.5 in	110 in
▶Warranty
Warranty Length & Coverage	7-Year Limited Powertrain Warranty	7-Year Limited Powertrain Warranty
▶ITC Company Accessories
Accessories that fit	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $250.00	None tagged yet

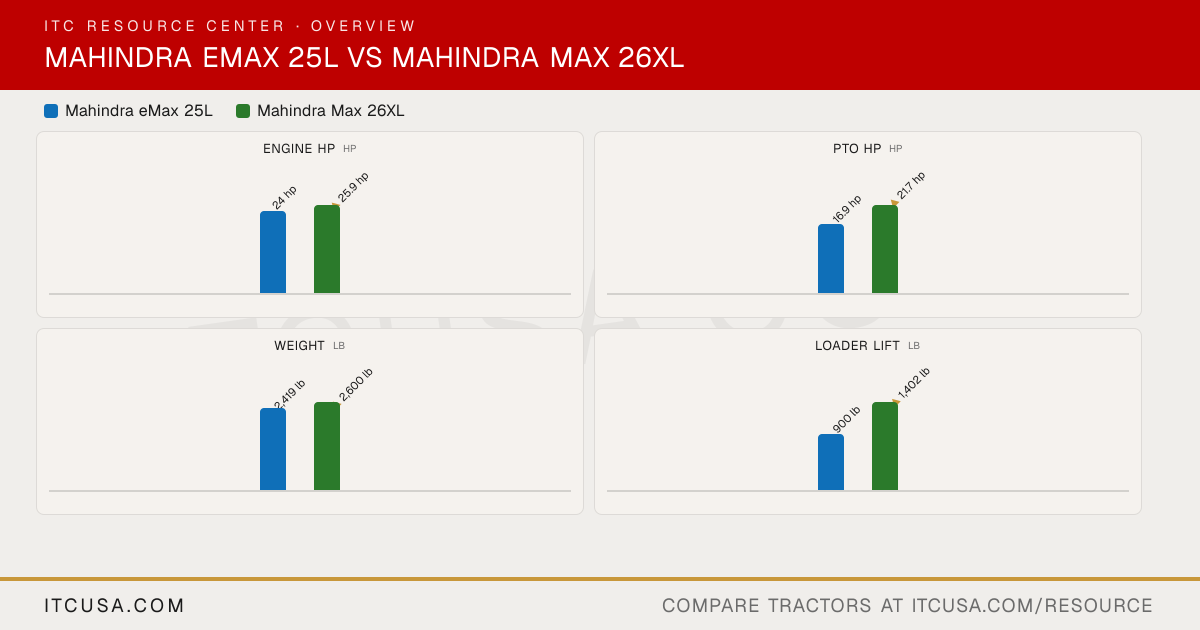

Mahindra eMax 25L vs Mahindra Max 26XL: Quick Answers

Which has more horsepower, the Mahindra eMax 25L or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on engine hp at 25.9 hp hp, compared to 24 hp hp for the Mahindra eMax 25L.

Which has more PTO horsepower, the Mahindra eMax 25L or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on pto hp at 21.7 hp hp, compared to 16.9 hp hp for the Mahindra eMax 25L.

Which is heavier, the Mahindra eMax 25L or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on weight at 2,600 lb lb, compared to 2,419 lb lb for the Mahindra eMax 25L.

Which has more loader lift capacity, the Mahindra eMax 25L or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on loader lift at 1,402 lb lb, compared to 900 lb lb for the Mahindra eMax 25L.

Which has more three-point hitch lift capacity, the Mahindra eMax 25L or the Mahindra Max 26XL?

The Mahindra Max 26XL leads on 3-pt lift (24 in) at 2,315 lb lb, compared to 1,323 lb lb for the Mahindra eMax 25L.
