Massey Ferguson 1726E vs Massey Ferguson 1726EHL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson 1726E leads 1 categories to 0 (7 tied). Machine pages: Massey Ferguson 1726E and Massey Ferguson 1726EHL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1726E	Massey Ferguson 1726EHL
Engine HP (hp)	24 hp	24 hp
PTO HP (hp)	▲ 20.4 hp	19.2 hp
Weight (lb)	2,657 lb	2,657 lb
Loader Lift (lb)	1,210 lb	1,210 lb
3-Pt Lift (24 in) (lb)	1,600 lb	1,600 lb
Lift Height (in)	95.7 in	95.7 in
Breakout Force (lbf)	1,460 lbf	1,460 lbf
Hydraulic Flow (gpm)	10.5 gpm	10.5 gpm

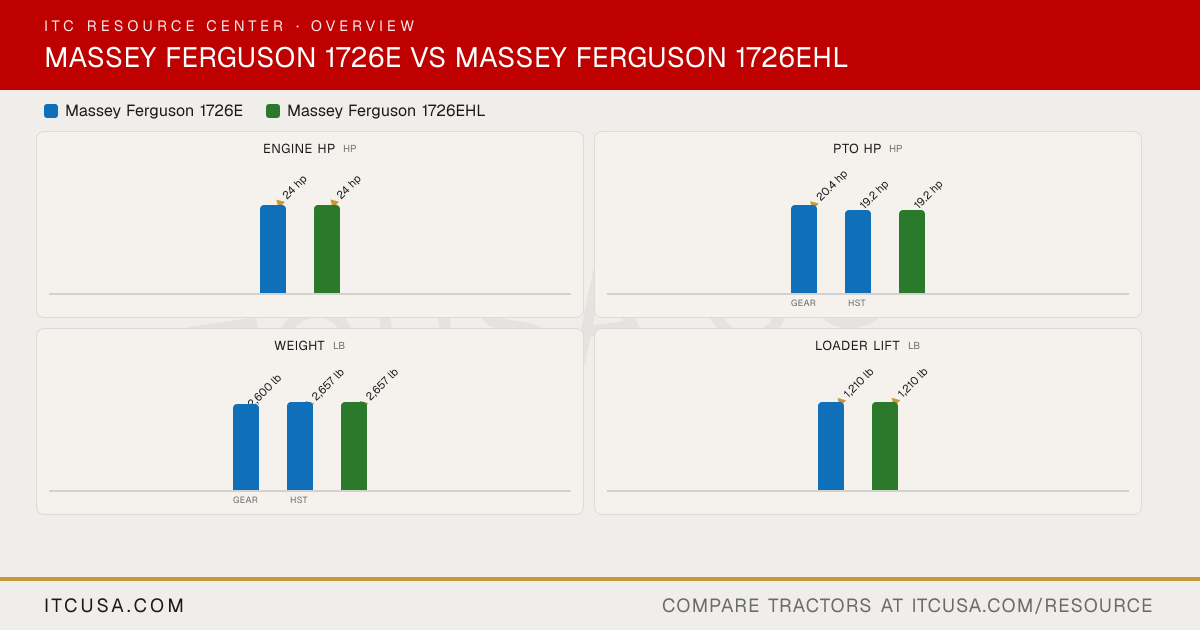

The headline numbers at a glance.

Massey Ferguson 1726EMassey Ferguson 1726EHL

Engine HPhp

▲24 hp

PTO HPhp

▲20.4 hp

19.2 hp

GearHST

Weightlb

2,600 lb

▲2,657 lb

GearHST

Loader Liftlb

▲1,210 lb

3-Pt Lift (24 in)lb

▲1,600 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1726E	Massey Ferguson1726EHL


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder diesel, liquid-cooled	3-cylinder diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.5 in³	91.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Gear: 20.4 hp; HST: 19.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect low-pressure injection	Indirect low-pressure injection
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Gear-type pump
Implement Flow	Not Published	Not Published
Steering Flow	3.8 gpm	3.8 gpm
Total Hydraulic Flow	10.5 gpm	10.5 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Up to 2

Fuel Tank Capacity	10.0 gal	10.0 gal
Coolant Capacity	1.32 gal	1.32 gal
Crankcase Capacity	1.22 gal	1.22 gal
Transmission / Hydraulic System Capacity	10.04 gal	10.04 gal
Front Axle Fluid Capacity	1.48 gal	1.48 gal

PTO Type	Transmission driven	Transmission driven
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1,600 lb	1,600 lb
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Gear: dry single disc
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical engagement via heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	52.4 in	52.4 in
Wheelbase	65.9 in	65.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	97.6 in
Height to Top of ROPS (folded)	63.8 in	63.8 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,600 lb; HST: 2,657 lb	HST: 2,657 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	L105E: skid steer or pin-type implement attachments
Loader Model	L105E	L105E
Loader Lift Height	L105E: 95.7 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	L105E: 1,210 lb
Loader Breakout Force	L105E: 1,460 lb	L105E: 1,460 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1726E vs Massey Ferguson 1726EHL: Quick Answers

Which has more horsepower, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?: They are effectively tied: both machines are rated at 24 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?: The Massey Ferguson 1726E leads on pto hp at 20.4 hp hp, compared to 19.2 hp hp for the Massey Ferguson 1726EHL.
Which is heavier, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?: They are effectively tied: both machines are rated at 2,657 lb lb for weight.
Which has more loader lift capacity, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?: They are effectively tied: both machines are rated at 1,210 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?: They are effectively tied: both machines are rated at 1,600 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1726E	Massey Ferguson 1726EHL
Engine HP (hp)	24 hp	24 hp
PTO HP (hp)	▲ 20.4 hp	19.2 hp
Weight (lb)	2,657 lb	2,657 lb
Loader Lift (lb)	1,210 lb	1,210 lb
3-Pt Lift (24 in) (lb)	1,600 lb	1,600 lb
Lift Height (in)	95.7 in	95.7 in
Breakout Force (lbf)	1,460 lbf	1,460 lbf
Hydraulic Flow (gpm)	10.5 gpm	10.5 gpm

The headline numbers at a glance.

Massey Ferguson 1726EMassey Ferguson 1726EHL

Engine HPhp

▲24 hp

PTO HPhp

▲20.4 hp

19.2 hp

GearHST

Weightlb

2,600 lb

▲2,657 lb

GearHST

Loader Liftlb

▲1,210 lb

3-Pt Lift (24 in)lb

▲1,600 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1726E	Massey Ferguson1726EHL


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder diesel, liquid-cooled	3-cylinder diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.5 in³	91.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Gear: 20.4 hp; HST: 19.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect low-pressure injection	Indirect low-pressure injection
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Gear-type pump
Implement Flow	Not Published	Not Published
Steering Flow	3.8 gpm	3.8 gpm
Total Hydraulic Flow	10.5 gpm	10.5 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	6.7 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Up to 2

Fuel Tank Capacity	10.0 gal	10.0 gal
Coolant Capacity	1.32 gal	1.32 gal
Crankcase Capacity	1.22 gal	1.22 gal
Transmission / Hydraulic System Capacity	10.04 gal	10.04 gal
Front Axle Fluid Capacity	1.48 gal	1.48 gal

PTO Type	Transmission driven	Transmission driven
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	2,205 lb
Hitch Lift Capacity (at 24”)	1,600 lb	1,600 lb
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Gear: 9F / 3R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Gear: dry single disc
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical engagement via heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Suspended vinyl seat with retractable seatbelt, fixed steering wheel
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	116.0 in (w/o 3-point linkage) (without 3-point hitch)
Overall Width	52.4 in	52.4 in
Wheelbase	65.9 in	65.9 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	97.6 in
Height to Top of ROPS (folded)	63.8 in	63.8 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,600 lb; HST: 2,657 lb	HST: 2,657 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	L105E: skid steer or pin-type implement attachments
Loader Model	L105E	L105E
Loader Lift Height	L105E: 95.7 in	L105E: 95.7 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	L105E: 1,210 lb
Loader Breakout Force	L105E: 1,460 lb	L105E: 1,460 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1726E vs Massey Ferguson 1726EHL: Quick Answers

Which has more horsepower, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?

The Massey Ferguson 1726E leads on pto hp at 20.4 hp hp, compared to 19.2 hp hp for the Massey Ferguson 1726EHL.

Which is heavier, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?

They are effectively tied: both machines are rated at 2,657 lb lb for weight.

Which has more loader lift capacity, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?

They are effectively tied: both machines are rated at 1,210 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Massey Ferguson 1726E or the Massey Ferguson 1726EHL?

They are effectively tied: both machines are rated at 1,600 lb lb for 3-pt lift (24 in).
