Massey Ferguson 1726EHL vs Massey Ferguson GC2300

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1726EHL leads 7 categories to 0. Machine pages: Massey Ferguson 1726EHL and Massey Ferguson GC2300.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1726EHL	Massey Ferguson GC2300
Engine HP (hp)	▲ 24 hp	22.5 hp
PTO HP (hp)	▲ 19.2 hp	18.7 hp
Weight (lb)	▲ 2,657 lb	1,367 lb
Loader Lift (lb)	1,210 lb	n/a
3-Pt Lift (24 in) (lb)	▲ 1,600 lb	1,190 lb
Lift Height (in)	▲ 95.7 in	73 in
Breakout Force (lbf)	▲ 1,460 lbf	678 lbf
Hydraulic Flow (gpm)	▲ 10.5 gpm	6.1 gpm

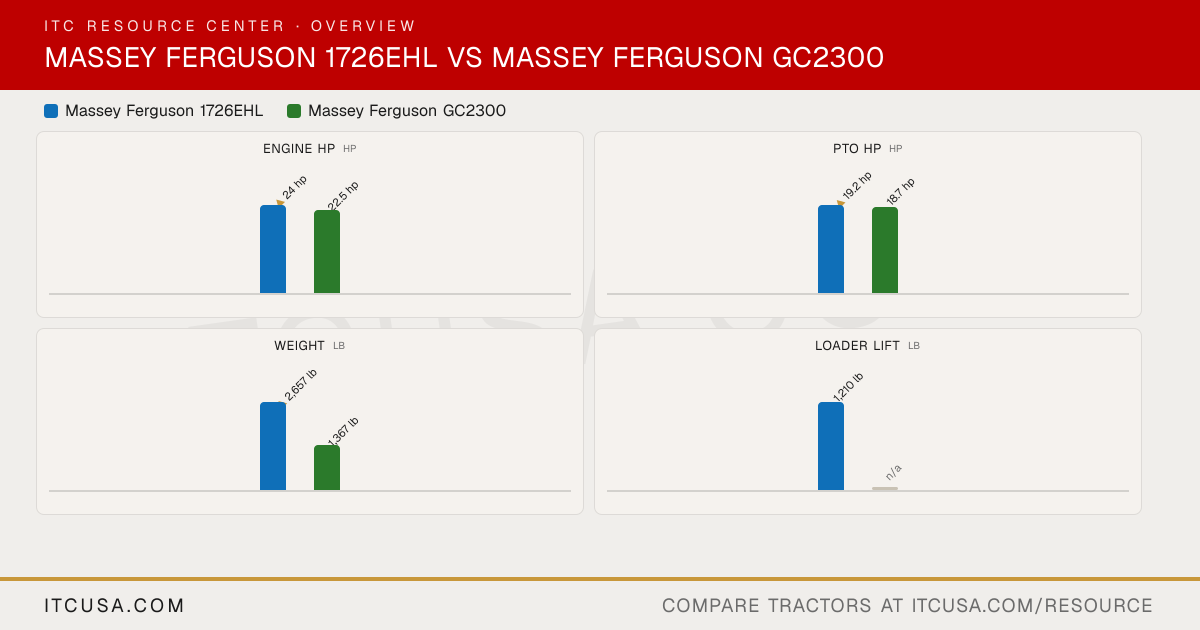

The headline numbers at a glance.

Massey Ferguson 1726EHLMassey Ferguson GC2300

Engine HPhp

▲24 hp

22.5 hp

PTO HPhp

▲19.2 hp

18.7 hp

Weightlb

▲2,657 lb

1,367 lb

Loader Liftlb

1,210 lb

n/a

3-Pt Lift (24 in)lb

▲1,600 lb

1,190 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1726EHL	Massey FergusonGC2300


Engine Manufacturer	Shibaura	Iseki
Engine Model	N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	22.5 hp
PTO Power	19.2 hp	18.7 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect low-pressure injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Not Published
Implement Flow	Not Published	4.1 gpm
Steering Flow	3.8 gpm	2 gpm
Total Hydraulic Flow	10.5 gpm	6.1 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	5.5 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Transmission driven	Independent
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm
Mid-PTO Availability	Not Published	Standard, independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	1,190 lb
Hitch Lift Capacity (at 24”)	1,600 lb	Not Published
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	2-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	97.6 in
Overall Width	52.4 in	45.8 in
Wheelbase	65.9 in	57.1 in
Ground Clearance	Not Published	6.9 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	72.8 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	HST: 2,657 lb	1,367 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	Not Published
Loader Model	L105E	2350
Loader Lift Height	L105E: 95.7 in	2350: 73 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	Not Published
Loader Breakout Force	L105E: 1,460 lb	2350: 678 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you

Massey Ferguson 1726EHL vs Massey Ferguson GC2300: Quick Answers

Which has more horsepower, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?: The Massey Ferguson 1726EHL leads on engine hp at 24 hp hp, compared to 22.5 hp hp for the Massey Ferguson GC2300.
Which has more PTO horsepower, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?: The Massey Ferguson 1726EHL leads on pto hp at 19.2 hp hp, compared to 18.7 hp hp for the Massey Ferguson GC2300.
Which is heavier, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?: The Massey Ferguson 1726EHL leads on weight at 2,657 lb lb, compared to 1,367 lb lb for the Massey Ferguson GC2300.
Which has more three-point hitch lift capacity, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?: The Massey Ferguson 1726EHL leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 1,190 lb lb for the Massey Ferguson GC2300.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1726EHL	Massey Ferguson GC2300
Engine HP (hp)	▲ 24 hp	22.5 hp
PTO HP (hp)	▲ 19.2 hp	18.7 hp
Weight (lb)	▲ 2,657 lb	1,367 lb
Loader Lift (lb)	1,210 lb	n/a
3-Pt Lift (24 in) (lb)	▲ 1,600 lb	1,190 lb
Lift Height (in)	▲ 95.7 in	73 in
Breakout Force (lbf)	▲ 1,460 lbf	678 lbf
Hydraulic Flow (gpm)	▲ 10.5 gpm	6.1 gpm

The headline numbers at a glance.

Massey Ferguson 1726EHLMassey Ferguson GC2300

Engine HPhp

▲24 hp

22.5 hp

PTO HPhp

▲19.2 hp

18.7 hp

Weightlb

▲2,657 lb

1,367 lb

Loader Liftlb

1,210 lb

n/a

3-Pt Lift (24 in)lb

▲1,600 lb

1,190 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1726EHL	Massey FergusonGC2300


Engine Manufacturer	Shibaura	Iseki
Engine Model	N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	22.5 hp
PTO Power	19.2 hp	18.7 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect low-pressure injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Not Published
Implement Flow	Not Published	4.1 gpm
Steering Flow	3.8 gpm	2 gpm
Total Hydraulic Flow	10.5 gpm	6.1 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	5.5 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Transmission driven	Independent
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm
Mid-PTO Availability	Not Published	Standard, independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	1,190 lb
Hitch Lift Capacity (at 24”)	1,600 lb	Not Published
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	2-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Infinite forward and reverse, 2 ranges
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	97.6 in
Overall Width	52.4 in	45.8 in
Wheelbase	65.9 in	57.1 in
Ground Clearance	Not Published	6.9 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	72.8 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	HST: 2,657 lb	1,367 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	Not Published
Loader Model	L105E	2350
Loader Lift Height	L105E: 95.7 in	2350: 73 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	Not Published
Loader Breakout Force	L105E: 1,460 lb	2350: 678 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you

Massey Ferguson 1726EHL vs Massey Ferguson GC2300: Quick Answers

Which has more horsepower, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?

The Massey Ferguson 1726EHL leads on engine hp at 24 hp hp, compared to 22.5 hp hp for the Massey Ferguson GC2300.

Which has more PTO horsepower, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?

The Massey Ferguson 1726EHL leads on pto hp at 19.2 hp hp, compared to 18.7 hp hp for the Massey Ferguson GC2300.

Which is heavier, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?

The Massey Ferguson 1726EHL leads on weight at 2,657 lb lb, compared to 1,367 lb lb for the Massey Ferguson GC2300.

Which has more three-point hitch lift capacity, the Massey Ferguson 1726EHL or the Massey Ferguson GC2300?

The Massey Ferguson 1726EHL leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 1,190 lb lb for the Massey Ferguson GC2300.
