| Engine Manufacturer | AGCO Power | AGCO Power |
|---|
| Engine Model | 33 AWIC | 33 AWI HD |
|---|
| Engine Type | 3-cylinder, intercooled turbocharged diesel | 3-cylinder turbocharged and intercooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 201 in³ | 201 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2200 rpm |
|---|

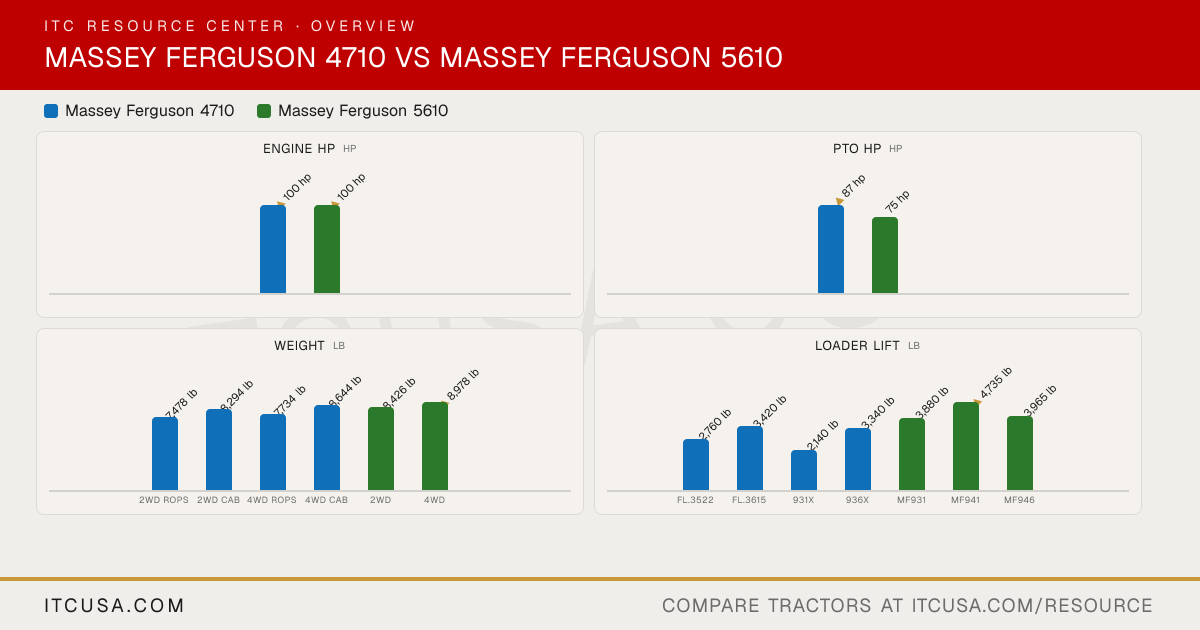

| Engine Power (Gross) | 100 hp | 100 hp |
|---|
| PTO Power | 87 hp | 75 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid cooled | Liquid-cooled (water-cooled) |
|---|
| Air Cleaner | Dual element (primary and secondary) | 2-stage dry |
|---|
| Fuel System | High-pressure common rail direct fuel injection | Common rail direct injection |
|---|
| Alternator | 80 A | 95 A |
|---|
|
|---|
| Pump Type | Two-stage pump | Single gear-type pump (tandem gear-type pumps with optional Twin Flow) |
|---|
| Implement Flow | Not Published | 15 gpm standard; 26 gpm with optional Twin Flow |
|---|
| Steering Flow | Not Published | Not Published |
|---|
| Total Hydraulic Flow | Not Published | 26 gpm (Twin Flow: 15 gpm to 3-point hitch plus 11 gpm to remotes, combinable) |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 17.2 gpm | 15 gpm standard; 26 gpm with optional Twin Flow |
|---|
| No. of Standard Remote Valves | 2 | 2 |
|---|
| No. of Optional Remote Valves | 1 | Up to 4 |
|---|
|
|---|
| Fuel Tank Capacity | 33 gal | 42 gal |
|---|
| Coolant Capacity | 4.2 gal | 15.3 qt |
|---|
| Crankcase Capacity | 3.3 gal | 13.7 qt |
|---|
| Transmission / Hydraulic System Capacity | Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal | 17.2 gal |
|---|
| Front Axle Fluid Capacity | Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive | 5.3 qt axle beam; 0.85 qt each final drive |
|---|
|
|---|
| PTO Type | Independent, electrohydraulic engagement | Independent, electro-hydraulic engagement and speed selection |
|---|
| PTO Rear | 540/540E standard; 540/1000 optional | 540/540E standard; 540/540E/1000 optional |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | Not Published | 9,480 lb |
|---|
| Hitch Lift Capacity (at 24”) | 4,850 lb | 7,100 lb |
|---|
| Lift Control Type | Not Published | Electronic linkage control (ELC), position and draft control, lower link draft sensing |
|---|
|
|---|
| Transmission Type | 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift | Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) |
|---|
| No. of Speeds | 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 | 16F / 16R |
|---|
| Max Travel Speed (Forward) | 25 mph | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever | Wet multi-disc, foot pedal and electronic control |
|---|
| Differential Lock & Limited Slip Options | Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock | Fully locking front and rear differentials, electro-hydraulically engaged |
|---|
|
|---|
| Frame Type | Not Published | Rigid structural chassis, solid cast steel flanged rear axle with internal planetary reduction |
|---|
| Steering | Cab: tilt and telescopic steering column; Platform: tilt steering column | Hydrostatic power steering, adjustable steering wheel |
|---|
| Brakes | Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals | Internal wet disc, hydraulic power assist, individual left and right foot pedals |
|---|
| Seat Suspension & Adjustability | Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests | Mechanical suspended swivel seat standard; manual or automatic air suspension optional |
|---|
| Front Axle Type | Heavy-duty 2WD or 4WD front axle | Adjustable 2WD or fixed cast steel 4WD, single piece with outboard planetary final drives |
|---|
| Front Axle Rating | Not Published | 2WD: 6,085 lb; 4WD: 10,500 lb |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | Not Published | 167.5 in |
|---|
| Overall Width | 60.3 in (minimum, with std. 420/85R30 rear tires) | 79.3 in |
|---|
| Wheelbase | 88.5 in | 97.1 in |
|---|
| Ground Clearance | Not Published | 17.6 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | 108.5 in |
|---|
|
|---|
| Tractor Weight (Base) | 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb | 2WD: 8,426 lb; 4WD: 8,978 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 2WD: 9.5L-15 front, 420/85R34 rear; 4WD: 340/85R24 front, 420/85R34 rear | R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) |
|---|
| R1 Agricultural - Front | 2WD: 9.5L-15; 4WD: 340/85R24 | Not Published |
|---|
| R1 Agricultural - Rear | 420/85R34 | 16.9R38 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | 931X and 936X: universal skid steer type quick release | MF931, MF941, MF946: Euro quick attach, single lever locking |
|---|
| Loader Model | FL.3522, FL.3615, 931X, 936X | MF931, MF941, MF946 |
|---|
| Loader Lift Height | FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) | MF931: 138 in; MF941: 148 in; MF946: 148 in |
|---|
| Loader Lift Capacity (Full Height) | FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) | MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 2-year/2,000-hour full coverage, all parts and labor |
|---|
