| Engine Manufacturer | AGCO Power | FPT Industrial |
|---|
| Engine Model | 33 AWIC | F5G |
|---|
| Engine Type | 3-cylinder, intercooled turbocharged diesel | 4-cylinder diesel, turbocharged and aftercooled |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 201 in³ | 207 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2300 rpm |
|---|

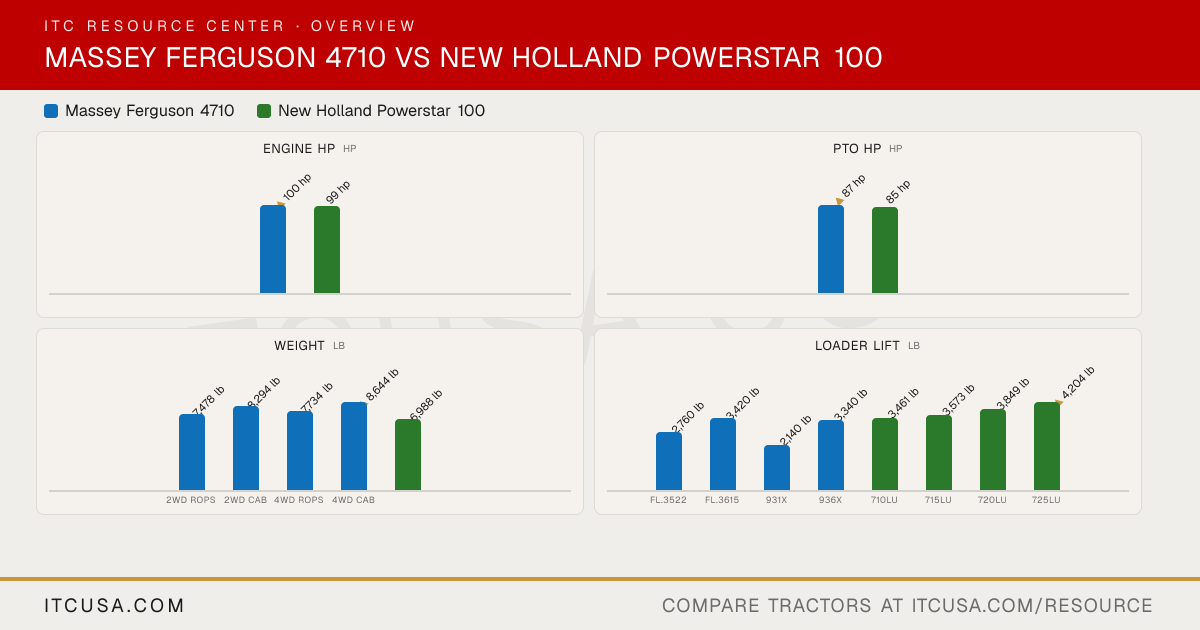

| Engine Power (Gross) | 100 hp | 99 hp |
|---|
| PTO Power | 87 hp | 85 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid cooled | Liquid-cooled |
|---|
| Air Cleaner | Dual element (primary and secondary) | Not Published |
|---|
| Fuel System | High-pressure common rail direct fuel injection | Electronic high-pressure common rail fuel injection |
|---|
| Alternator | 80 A | ROPS: 120 A; Cab: 150 A |
|---|
|
|---|
| Pump Type | Two-stage pump | Open-center; dual pumps (implement pump plus dedicated steering pump) |
|---|
| Implement Flow | Not Published | 16.9 gpm |
|---|
| Steering Flow | Not Published | 9.7 gpm |
|---|
| Total Hydraulic Flow | Not Published | 26.6 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 26.6 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 17.2 gpm | Not Published |
|---|
| No. of Standard Remote Valves | 2 | 2 rear remotes (open center with detent) |
|---|
| No. of Optional Remote Valves | 1 | 1 (third rear remote, DIA kit) |
|---|
|
|---|
| Fuel Tank Capacity | 33 gal | 30.3 gal |
|---|
| Coolant Capacity | 4.2 gal | Not Published |
|---|
| Crankcase Capacity | 3.3 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal | Not Published |
|---|
| Front Axle Fluid Capacity | Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive | Not Published |
|---|
|
|---|
| PTO Type | Independent, electrohydraulic engagement | Fully independent hydraulic PTO |
|---|
| PTO Rear | 540/540E standard; 540/1000 optional | 540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,850 lb | 5,620 lb |
|---|
| Lift Control Type | Not Published | Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard) |
|---|
|
|---|
| Transmission Type | 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift | 12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional) |
|---|
| No. of Speeds | 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 | 12F/12R (standard); 20F/20R with creeper (optional) |
|---|
| Max Travel Speed (Forward) | 25 mph | 27 mph (4WD front axle); 20 mph (2WD front axle) |
|---|
| Max Travel Speed (Reverse) | Not Published | 27.25 mph (12x12, 4WD front axle, 18R34 tires) |
|---|
| Clutch | Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever | Not Published |
|---|
| Differential Lock & Limited Slip Options | Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock | Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Cab: tilt and telescopic steering column; Platform: tilt steering column | Power steering |
|---|
| Brakes | Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests | Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests |
|---|
| Front Axle Type | Heavy-duty 2WD or 4WD front axle | Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional) |
|---|
| Front Axle Rating | Not Published | 9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle) |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | Not Published | 163.1 in (2WD); 160.9 in (4WD) |
|---|
| Overall Width | 60.3 in (minimum, with std. 420/85R30 rear tires) | 75.7 in |
|---|
| Wheelbase | 88.5 in | 92.2 in (2WD); 89.9 in (4WD) |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | 134 in (optional 2WD front axle, w/o brakes) |
|---|
| Height to Top of ROPS | Not Published | 106.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | 102.1 in |
|---|
|
|---|
| Tractor Weight (Base) | 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb | 6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 2WD: 9.5L-15 front, 420/85R34 rear; 4WD: 340/85R24 front, 420/85R34 rear | 2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions |
|---|
| R1 Agricultural - Front | 2WD: 9.5L-15; 4WD: 340/85R24 | 2WD: 10.00-16; 4WD: 12.4-24 |
|---|
| R1 Agricultural - Rear | 420/85R34 | 18.4R34 (reference tire for OEM weights and dimensions) |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | 931X and 936X: universal skid steer type quick release | Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders) |
|---|
| Loader Model | FL.3522, FL.3615, 931X, 936X | 710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL) |
|---|
| Loader Lift Height | FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) | 710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in |
|---|
| Loader Lift Capacity (Full Height) | FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) | 710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb |
|---|
| Loader Breakout Force | Not Published | 710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
