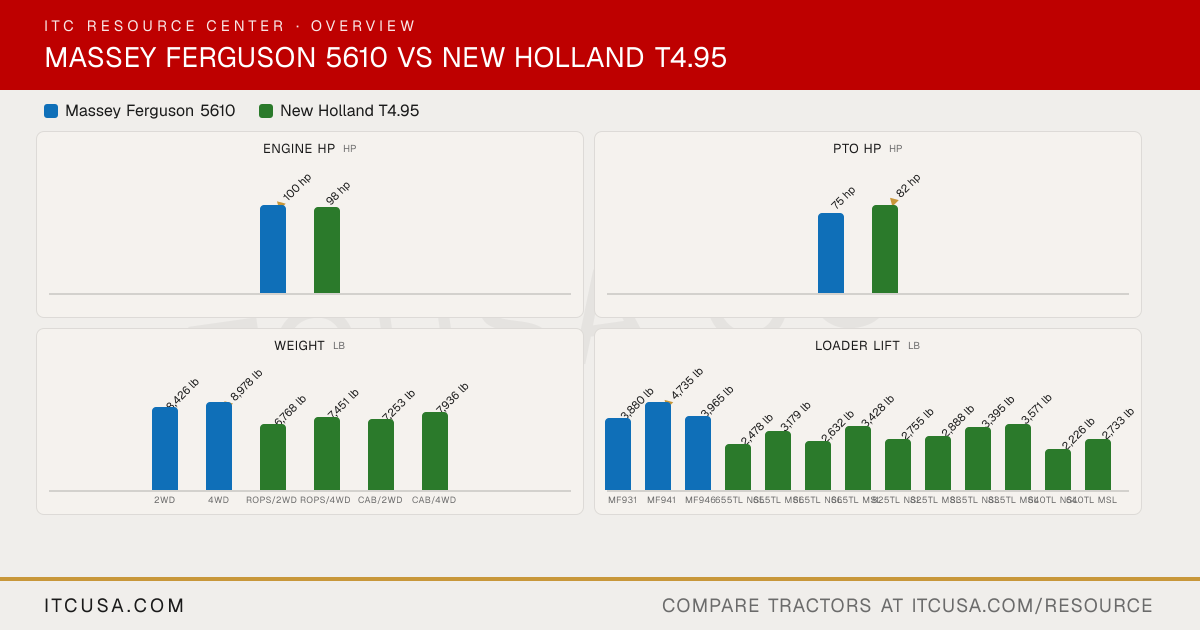

▶ EngineEngine Manufacturer AGCO Power FPT Engine Model 33 AWI HD F5D Engine Type 3-cylinder turbocharged and intercooled diesel 4-cylinder diesel No. of Cylinders 3 4 Displacement 201 in³ 207 in³ Rated Engine Speed 2200 rpm Not Published Engine Power (Gross) 100 hp 98 hp PTO Power 75 hp 82 hp Engine Emissions Constraints Tier 4i Tier 4A with Cooled Exhaust Gas Recirculation (CEGR) and a Diesel Particulate Filter (DPF) Cooling System Type Water-cooled Liquid-cooled Air Cleaner 2-stage dry Not Published Fuel System Common rail direct injection Common rail fuel injection Alternator 120 A Not Published ▶ HydraulicsPump Type Single gear pump; tandem gear pumps optional Not Published Implement Flow 15 gpm standard; 26 gpm with optional Twin Flow 16.9 gpm Steering Flow Not Published 9.7 gpm Total Hydraulic Flow 26 gpm (tandem pumps: 15 gpm to the 3-point hitch plus 11 gpm to remotes, combinable) 26.6 gpm (16.9 + 9.7) Overall Hydraulic Pump Flow Not Published 26.6 gpm (16.9 + 9.7) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 15 gpm standard; 26 gpm with optional Twin Flow Not Published No. of Standard Remote Valves 2 2 (3 DIA) No. of Optional Remote Valves Up to 4 Not Published ▶ Fluid CapacityFuel Tank Capacity 42 gal 30.3 gal Coolant Capacity 15.3 qt Not Published Crankcase Capacity 13.7 qt Not Published Transmission / Hydraulic System Capacity 17.2 gal Not Published Front Axle Fluid Capacity 5.3 qt axle beam; 0.85 qt each final drive Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement and speed selection Not Published PTO Rear 540/540E standard; 540/540E/1000 optional 540 (12x12 base); 540/540E or 540/1000 (12x12 optional); 540/540E (24x24 Dual Command base); 540/1000 (24x24 Dual Command optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 9,480 lb Not Published Hitch Lift Capacity (at 24”) 7,100 lb 5,620 lb (7,351 lb with optional ram) Lift Control Type Electronically operated, lower-link draft sensing Not Published ▶ Transmission & DrivetrainTransmission Type Dyna-4 16x16 power shift and power shuttle (AUTO-DRIVE optional, 14:1 creeper optional) 12x12 mechanical shuttle (standard); 12x12 power shuttle, 20x20 power shuttle with creeper, 24x24 Dual Command or 40x40 Dual Command with creeper (optional) No. of Speeds 16F / 16R 12F/12R (standard); 20F/20R, 24F/24R or 40F/40R (optional) Max Travel Speed (Forward) 25 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet multi-disc, foot pedal and electronic control Not Published Differential Lock & Limited Slip Options Fully locking front and rear axle differentials, electro-hydraulically engaged Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Rigid structural chassis; solid cast-steel flanged rear axle, internal planetary reduction Not Published Steering Hydrostatic power steering Not Published Brakes Internal wet disc, hydraulic power assist, individual left and right foot pedals Not Published Seat Suspension & Adjustability Mechanical suspended swivel seat, standard; manual or automatic air-suspension, optional Cab: fabric mechanical-suspension seat (standard) or fabric air-suspension seat with 15° swivel; full-size instructor seat available. ROPS: vinyl mechanical-suspension seat with armrests Front Axle Type Adjustable 2WD, or fixed cast-steel 4WD (single-piece), outboard planetary final drives Standard-duty, electronically engaged 4WD front axle (standard); optional: mechanically engaged standard-duty 4WD, electronically engaged heavy-duty 4WD, or 2WD front axle Front Axle Rating 2WD: 6,085 lb; 4WD: 10,500 lb 4,700 lb (standard-duty 4WD, in-action capacity); 5,100 lb (heavy-duty 4WD, in-action capacity) Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 79.3 in 75.7 in Wheelbase 97.1 in 2WD: 90.2 in; 4WD: 87.9 in Ground Clearance 17.6 in Not Published Min. Turn Radius without Brakes Not Published 132 in (2WD front axle) Height to Top of ROPS Not Published 106.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 111.3 in (16.9R38 rear tires) 102.1 in Overall Length 167.5 in 2WD: 161 in; 4WD: 158 in ▶ WeightTractor Weight (Base) 2WD: 8,426 lb; 4WD: 8,978 lb ROPS/2WD: 6,768 lb; ROPS/4WD: 7,451 lb; Cab/2WD: 7,253 lb; Cab/4WD: 7,936 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 radial agricultural tires only; 16.9R38 rear is the speed chart basis (16.9R34, 16.9R30, 18.4R30, 18.4R34, 13.6R38 listed) Not Published R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear 16.9R38 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System MF931, MF941, MF946: quick attachment, single lever locking system Skid-steer or Euro-style quick attach faceplate Loader Model MF931, MF941, MF946 655TL, 665TL (factory installed, NSL or MSL); 825TL, 835TL, 640TL (dealer installed, NSL or MSL) Loader Lift Height MF931: 138 in; MF941: 148 in; MF946: 148 in (at pivot pins) 655TL NSL: 126 in; 655TL MSL: 125 in; 665TL NSL: 134 in; 665TL MSL: 135 in; 825TL: 135 in; 835TL: 143 in; 640TL: 137 in Loader Lift Capacity (Full Height) MF931: 3,880 lb; MF941: 4,735 lb; MF946: 3,965 lb (at pivot) 655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 665TL NSL: 2,632 lb; 665TL MSL: 3,428 lb (at 31.5 in from pivot point); 825TL NSL: 2,755 lb; 825TL MSL: 2,888 lb; 835TL NSL: 3,395 lb; 835TL MSL: 3,571 lb; 640TL NSL: 2,226 lb; 640TL MSL: 2,733 lb (at max height) Loader Breakout Force Not Published 655TL NSL: 3,739 lb; 655TL MSL: 3,860 lb; 665TL NSL: 4,455 lb; 665TL MSL: 5,661 lb (at 31.5 in from bucket pivot point); 825TL NSL: 2,910 lb; 825TL MSL: 3,196 lb; 835TL NSL: 3,615 lb; 835TL MSL: 3,990 lb; 640TL NSL: 3,747 lb; 640TL MSL: 3,306 lb ▶ WarrantyWarranty Length & Coverage 2-year/2,000-hour full coverage, all parts and labor Not Published
