| Engine Manufacturer | AGCO Power | FPT |
|---|
| Engine Model | 44 AWFC | NEF4 |
|---|
| Engine Type | 4-cylinder, intercooled turbocharged diesel | 4-cylinder diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 268.5 in³ | 273 in³ |
|---|
| Rated Engine Speed | 2200 rpm | 2200 rpm |
|---|

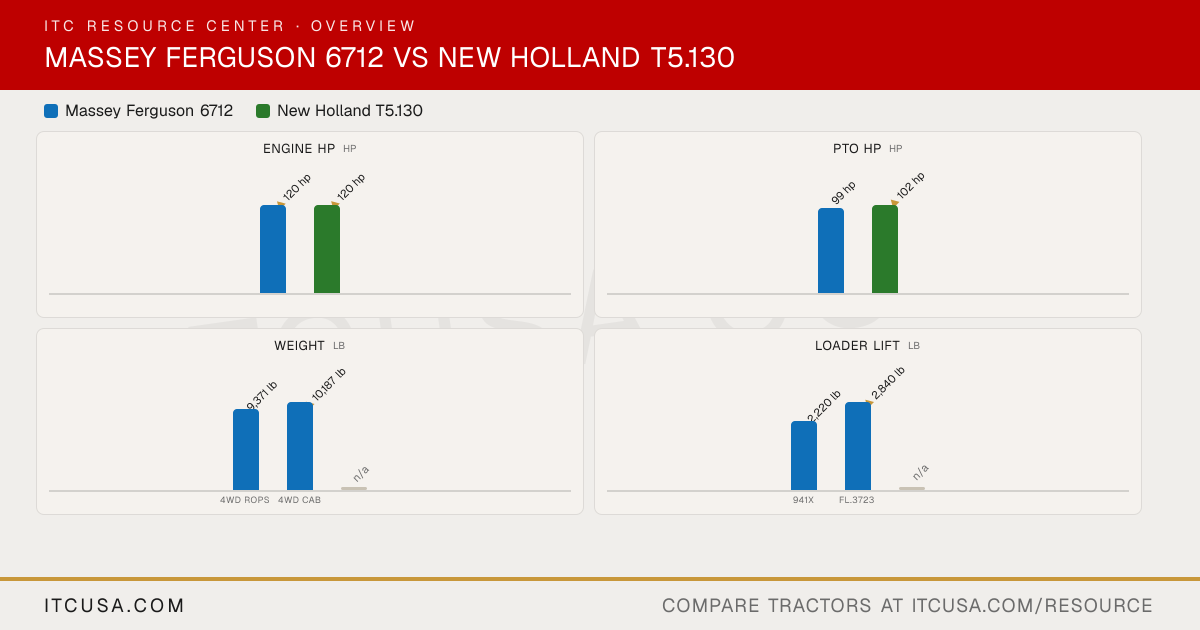

| Engine Power (Gross) | 120 hp | 120 hp |
|---|
| PTO Power | 99 hp | 102 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Stage V |
|---|
| Cooling System Type | Liquid cooled | Liquid cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | High-pressure common-rail direct injection (HPCR) | Not Published |
|---|
| Alternator | 80 A, 12 V | 120 A |
|---|
|
|---|
| Pump Type | Two high-pressure gear pumps | Not Published |
|---|
| Implement Flow | 15.1 gpm | 21.1 gpm (29 gpm MegaFlow CCLS pump optional) |
|---|
| Steering Flow | Not Published | 9.6 gpm |
|---|
| Total Hydraulic Flow | 25.9 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Closed center load sensing (CCLS) |
|---|
| Rear Remote Hydraulic Flow | 26 gpm | Not Published |
|---|
| No. of Standard Remote Valves | 2 | Not Published |
|---|
| No. of Optional Remote Valves | 3rd valve optional | Up to 4 rear (up to 3 mid-mount) |
|---|
|
|---|
| Fuel Tank Capacity | 38.3 gal | 47.5 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent, electro-hydraulic engagement via switch | Direct-drive PTO with push-pull engagement and Soft Start |
|---|
| PTO Rear | 540 / 540E / 1000 rpm | 540/540E/1000 rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | Not Published | 12,125 lb (at ball ends) |
|---|
| Hitch Lift Capacity (at 24”) | 9,390 lb | 10,228 lb |
|---|
| Lift Control Type | Electronic linkage control (ELC) | Electronic Draft Control (EDC) |
|---|
|
|---|
| Transmission Type | 12F x 12R, 2-range power shuttle with electrohydraulic shuttle lever | Dynamic Command: 24x24 dual-clutch 8-step semi-powershift; Auto Command: continuously variable (CVT) |
|---|
| No. of Speeds | 12 forward, 12 reverse | Dynamic Command: 24F/24R; Auto Command: continuously variable |
|---|
| Max Travel Speed (Forward) | 25 mph | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Wet clutch with easy shift knob and electrohydraulic power shuttle lever | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD | Terralock automatic differential lock and automatic 4WD (standard) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Cab: tilt and telescopic steering; platform: tilt steering | Power steering |
|---|
| Brakes | Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals | Hydraulic wet disc |
|---|
| Seat Suspension & Adjustability | Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests | Standard: low-frequency suspension seat; optional: heated seat with dynamic damping, or heated and ventilated semi-active-suspension seat |
|---|
| Front Axle Type | Heavy-duty 4WD front axle | Class 1.75 heavy-duty 4WD front axle; Terraglide suspension optional |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 64.8 in | 90 in standard (74 in minimum, narrow) |
|---|
| Wheelbase | 98.4 in | 98 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | 182 in |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | 106 in (low-profile roof, 540/65R34 tires) |
|---|
| Overall Length | Not Published | 173 in (max, weight carrier to rear linkage) |
|---|
|
|---|
| Tractor Weight (Base) | 4WD ROPS: 9,371 lb; 4WD Cab: 10,187 lb | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Rear: 460/85R34 standard radial | Not Published |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Skid-steer style or European style attachment system |
|---|
| Loader Model | 941X; 946X; FL.3723; FL.3819 | 800TL Series wide-frame loader (NSL or MSL) |
|---|
| Loader Lift Height | 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 941X: 2,220 lb; FL.3723: 2,840 lb (to full height) | Not Published |
|---|
| Loader Breakout Force | FL.3723: 5,819 lb; FL.3819: 4,893 lb | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
