Massey Ferguson GC1705 vs Massey Ferguson GC1710

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Massey Ferguson GC1710 leads 1 categories to 0 (8 tied). Machine pages: Massey Ferguson GC1705 and Massey Ferguson GC1710.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson GC1705	Massey Ferguson GC1710
Engine HP (hp)	22.5 hp	22.5 hp
PTO HP (hp)	18.7 hp	18.7 hp
Weight (lb)	1,433 lb	▲ 2,670 lb
Loader Lift (lb)	870 lb	870 lb
3-Pt Lift (24 in) (lb)	1,190 lb	1,190 lb
Lift Height (in)	72.8 in	72.8 in
Breakout Force (lbf)	920 lbf	920 lbf
Hydraulic Flow (gpm)	6.3 gpm	6.3 gpm
Travel Speed (mph)	9.1 mph	9.1 mph

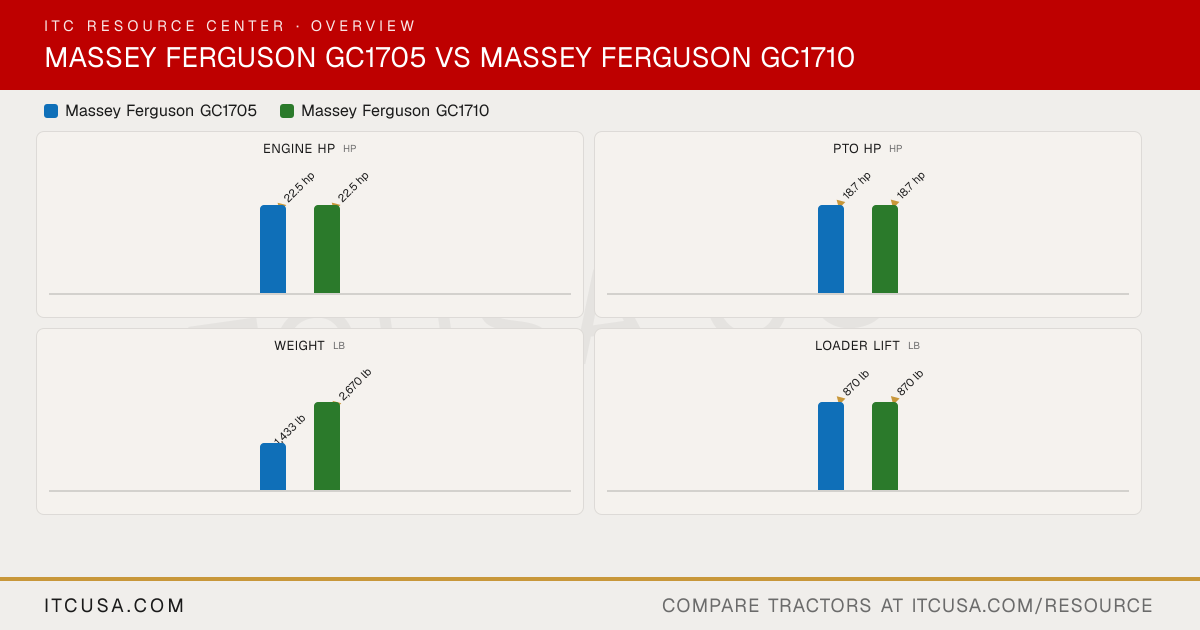

The headline numbers at a glance.

Massey Ferguson GC1705Massey Ferguson GC1710

Engine HPhp

▲22.5 hp

PTO HPhp

▲18.7 hp

Weightlb

1,433 lb

▲2,670 lb

Loader Liftlb

▲870 lb

3-Pt Lift (24 in)lb

▲1,190 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonGC1705	Massey FergusonGC1710


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	22.5 hp	22.5 hp
PTO Power	18.7 hp	18.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Not Published	Not Published
Implement Flow	4.3 gpm	Not Published
Steering Flow	2 gpm	2 gpm
Total Hydraulic Flow	6.3 gpm	6.3 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Independent, 2,000 rpm	Independent, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,190 lb	1,190 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Rate of drop control (standard)	Rate of drop control (standard)

Transmission Type	2-range hydrostatic with side-by-side foot pedals and cruise control	2-range hydrostatic with side-by-side foot pedals and cruise control
No. of Speeds	2-range hydrostatic	2-range hydrostatic
Max Travel Speed (Forward)	9.1 mph (with R1 tires)	9.1 mph (with R1 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Coil spring seat; retractable seat belt	Coil spring seat, reversible; retractable seat belt
Front Axle Type	4WD front axle	4WD front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	47.25 in	53.94 in
Wheelbase	57.1 in	57.1 in
Ground Clearance	6.7 in	6.7 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	72.8 in	86 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	97.6 in	177 in

Tractor Weight (Base)	1,433 lb (shipping weight)	Not Published
Weight with ROPS and Loader	Not Published	2,670 lb (shipping weight)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12
R1 Agricultural - Front	18x8.50-10	18x8.50-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.50-10	18x8.50-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.50-10	18x8.50-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	DL95: pin-on (factory or dealer installation)	DL95: pin-on (factory or dealer installation)
Loader Model	DL95	DL95
Loader Lift Height	DL95: 72.8 in (at pivot pin)	DL95: 72.8 in (at pivot pin)
Loader Lift Capacity (Full Height)	DL95: 870 lb (at pivot pin)	DL95: 870 lb (at pivot pin)
Loader Breakout Force	DL95: 920 lb (at pivot pin)	DL95: 920 lb (at pivot pin)

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson GC1705 vs Massey Ferguson GC1710: Quick Answers

Which has more horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?: They are effectively tied: both machines are rated at 22.5 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?: They are effectively tied: both machines are rated at 18.7 hp hp for pto hp.
Which is heavier, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?: The Massey Ferguson GC1710 leads on weight at 2,670 lb lb, compared to 1,433 lb lb for the Massey Ferguson GC1705.
Which has more loader lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?: They are effectively tied: both machines are rated at 870 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?: They are effectively tied: both machines are rated at 1,190 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson GC1705	Massey Ferguson GC1710
Engine HP (hp)	22.5 hp	22.5 hp
PTO HP (hp)	18.7 hp	18.7 hp
Weight (lb)	1,433 lb	▲ 2,670 lb
Loader Lift (lb)	870 lb	870 lb
3-Pt Lift (24 in) (lb)	1,190 lb	1,190 lb
Lift Height (in)	72.8 in	72.8 in
Breakout Force (lbf)	920 lbf	920 lbf
Hydraulic Flow (gpm)	6.3 gpm	6.3 gpm
Travel Speed (mph)	9.1 mph	9.1 mph

The headline numbers at a glance.

Massey Ferguson GC1705Massey Ferguson GC1710

Engine HPhp

▲22.5 hp

PTO HPhp

▲18.7 hp

Weightlb

1,433 lb

▲2,670 lb

Loader Liftlb

▲870 lb

3-Pt Lift (24 in)lb

▲1,190 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonGC1705	Massey FergusonGC1710


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, liquid-cooled diesel	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	68.5 in³	68.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	22.5 hp	22.5 hp
PTO Power	18.7 hp	18.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Not Published	Not Published
Implement Flow	4.3 gpm	Not Published
Steering Flow	2 gpm	2 gpm
Total Hydraulic Flow	6.3 gpm	6.3 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Independent, 2,000 rpm	Independent, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,190 lb	1,190 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Rate of drop control (standard)	Rate of drop control (standard)

Transmission Type	2-range hydrostatic with side-by-side foot pedals and cruise control	2-range hydrostatic with side-by-side foot pedals and cruise control
No. of Speeds	2-range hydrostatic	2-range hydrostatic
Max Travel Speed (Forward)	9.1 mph (with R1 tires)	9.1 mph (with R1 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Coil spring seat; retractable seat belt	Coil spring seat, reversible; retractable seat belt
Front Axle Type	4WD front axle	4WD front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	47.25 in	53.94 in
Wheelbase	57.1 in	57.1 in
Ground Clearance	6.7 in	6.7 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	72.8 in	86 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	97.6 in	177 in

Tractor Weight (Base)	1,433 lb (shipping weight)	Not Published
Weight with ROPS and Loader	Not Published	2,670 lb (shipping weight)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12	Ag, turf or industrial: front 18x8.50-10, rear 26x12.00-12
R1 Agricultural - Front	18x8.50-10	18x8.50-10
R1 Agricultural - Rear	26x12.00-12	26x12.00-12
R3 Turf - Front	18x8.50-10	18x8.50-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.50-10	18x8.50-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	DL95: pin-on (factory or dealer installation)	DL95: pin-on (factory or dealer installation)
Loader Model	DL95	DL95
Loader Lift Height	DL95: 72.8 in (at pivot pin)	DL95: 72.8 in (at pivot pin)
Loader Lift Capacity (Full Height)	DL95: 870 lb (at pivot pin)	DL95: 870 lb (at pivot pin)
Loader Breakout Force	DL95: 920 lb (at pivot pin)	DL95: 920 lb (at pivot pin)

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson GC1705 vs Massey Ferguson GC1710: Quick Answers

Which has more horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?

They are effectively tied: both machines are rated at 22.5 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?

They are effectively tied: both machines are rated at 18.7 hp hp for pto hp.

Which is heavier, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?

The Massey Ferguson GC1710 leads on weight at 2,670 lb lb, compared to 1,433 lb lb for the Massey Ferguson GC1705.

Which has more loader lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?

They are effectively tied: both machines are rated at 870 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Massey Ferguson GC1705 or the Massey Ferguson GC1710?

They are effectively tied: both machines are rated at 1,190 lb lb for 3-pt lift (24 in).
