Which has more horsepower, the Massey Ferguson MF 1735 M or the TYM 3515?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more three-point hitch lift capacity, the Massey Ferguson MF 1735 M or the TYM 3515?

The Massey Ferguson MF 1735 M leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,425 lb lb for the TYM 3515.

Massey Ferguson MF 1735 M vs TYM 3515

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Massey Ferguson MF 1735 M, 1 to the TYM 3515, 1 tied. Machine pages: Massey Ferguson MF 1735 M and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1735 M	TYM 3515
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	—	30 hp
Weight (lb)	—	4,191 lb
Loader Lift (lb)	—	2,200 lb
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	2,425 lb
Lift Height (in)	—	104.9 in
Breakout Force (lbf)	—	3,422 lbf
Hydraulic Flow (gpm)	11 gpm	▲ 12.3 gpm
Travel Speed (mph)	—	18.8 mph

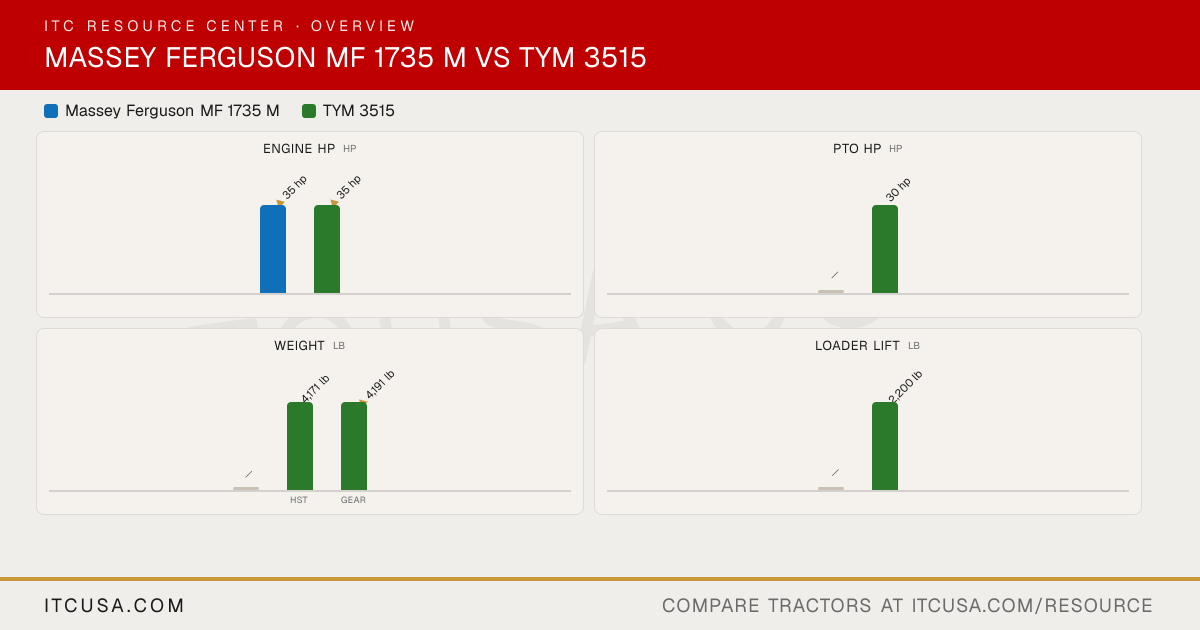

The headline numbers at a glance.

Massey Ferguson MF 1735 MTYM 3515

Engine HPhp

▲35 hp

PTO HPhp

—

30 hp

Weightlb

—

4,171 lb

▲4,191 lb

HSTGear

Loader Liftlb

—

2,200 lb

3-Pt Lift (24 in)lb

▲2,646 lb

2,425 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1735 M	TYM3515


PTO Power	Not Published	30 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry Element
Engine Type	3-cylinder turbocharged diesel	3-cylinder, naturally aspirated diesel
Fuel System	Not Published	IDI
Displacement	111.4 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Massey Ferguson (AGCO)	TYM
Engine Power (Gross)	35 hp	35 hp
Engine Emissions Constraints	Stage V	Tier 4

Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Single Gear Pump
Steering Flow	Not Published	8.0 gpm
Implement Flow	11.0 gpm	4.3 gpm
Total Hydraulic Flow	Not Published	12.3 gpm
Hydraulic System Type	Open-centre	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	12.3 gpm
No. of Optional Remote Valves	Not Published	Up to 4
No. of Standard Remote Valves	2	0

PTO Rear	540/750 (540E) rpm	560 rpm
PTO Type	Not Published	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	2,646 lb	3,306 lb
Mid-PTO Availability	Standard	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	Not Published	2,425 lb

R3 Turf - Rear	315/80D-16	Not Published
R3 Turf - Front	24X8.50-12	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	13.6-16	43x16.00-20
R4 Industrial - Front	21X10.50-12	28x8.50-15
R1 Agricultural - Rear	9.5-24	12.4-24
R1 Agricultural - Front	7-14	8.0-16

Coolant Capacity	Not Published	5.28 qt
Crankcase Capacity	Not Published	4.5 qt
Fuel Tank Capacity	9.5 gal	7.1 gal
Front Axle Fluid Capacity	Not Published	1.7 qt
Transmission / Hydraulic System Capacity	Not Published	HST: 9.8 gal; Gear: 8.9 gal

Loader Lift Height	Not Published	104.9 in
Loader Breakout Force	Not Published	3,422 lb
Quick Attach Loader System	Not Published	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	Not Published	2,200 lb

Clutch	Not Applicable	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	Not Published	HST: 3-Range; Gear: F12 x R12
Transmission Type	Hydrostatic	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Not Published	Wet, Multi-disc
Steering	Not Published	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat

Wheelbase	CAB: 66.7 in; ROPS: 76.0 in	65.7 in
Overall Width	CAB: 55.7 in; ROPS: 53.9 in	56.3 in
Ground Clearance	Not Published	14.4 in
Height to Top of ROPS	96.7 in	97.3 in
Height to Top of Cab Model	85.6 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	102 in
Overall Length with 3-Point Hitch	CAB: 121.7 in; ROPS: 135.0 in	120.9 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Massey Ferguson MF 1735 M vs TYM 3515: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1735 M or the TYM 3515?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more three-point hitch lift capacity, the Massey Ferguson MF 1735 M or the TYM 3515?: The Massey Ferguson MF 1735 M leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,425 lb lb for the TYM 3515.
