Which has more horsepower, the New Holland Boomer 45 or the TYM 4820C?

The TYM 4820C leads on engine hp at 48 hp hp, compared to 47.7 hp hp for the New Holland Boomer 45.

Which has more PTO horsepower, the New Holland Boomer 45 or the TYM 4820C?

The TYM 4820C leads on pto hp at 38.4 hp hp, compared to 36 hp hp for the New Holland Boomer 45.

Which has more loader lift capacity, the New Holland Boomer 45 or the TYM 4820C?

The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 2,371 lb lb for the New Holland Boomer 45.

Which has more three-point hitch lift capacity, the New Holland Boomer 45 or the TYM 4820C?

The New Holland Boomer 45 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the TYM 4820C.

New Holland Boomer 45 vs TYM 4820C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM 4820C leads 5 categories to 3. Machine pages: New Holland Boomer 45 and TYM 4820C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 45	TYM 4820C
Engine HP (hp)	47.7 hp	▲ 48 hp
PTO HP (hp)	36 hp	▲ 38.4 hp
Loader Lift (lb)	2,371 lb	▲ 2,701 lb
3-Pt Lift (24 in) (lb)	▲ 2,469 lb	2,425 lb
Lift Height (in)	▲ 109 in	106.6 in
Breakout Force (lbf)	▲ 4,081 lbf	3,660 lbf
Hydraulic Flow (gpm)	14.1 gpm	▲ 16.5 gpm
Travel Speed (mph)	16.8 mph	▲ 19.5 mph

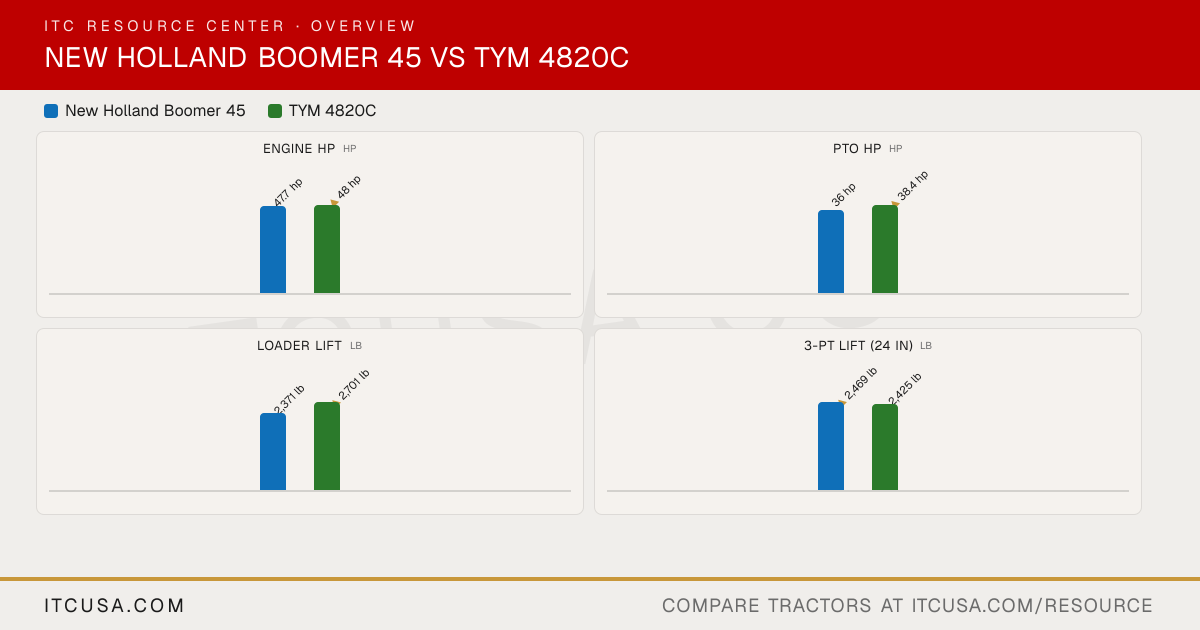

The headline numbers at a glance.

New Holland Boomer 45TYM 4820C

Engine HPhp

47.7 hp

▲48 hp

PTO HPhp

36 hp

▲38.4 hp

Weightlb

—

Loader Liftlb

2,371 lb

▲2,701 lb

3-Pt Lift (24 in)lb

▲2,469 lb

2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 45	TYM4820C


PTO Power	36 hp	38.4 hp
Alternator	70 A, 12 V	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	Water-cooled, 4-stroke common rail turbocharged diesel	4-cylinder, naturally aspirated diesel
Fuel System	High pressure common rail (ECU controlled)	IDI
Displacement	0.1 in³	139.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Pressurized liquid w/ recirculating bypass	Not Published
Engine Manufacturer	LS Mtron	TYM
Engine Power (Gross)	47.7 hp @ 600 rpm	48 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year limited powertrain, 2-year full coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Dual gear pump
Steering Flow	HST: 5.6 gpm; Gear: 4.2 gpm	5.2 gpm
Implement Flow	8.5 gpm	11.4 gpm
Total Hydraulic Flow	HST: 14.1 gpm; Gear: 12.7 gpm	16.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	HST: 14.1 gpm; Gear: 12.7 gpm	16.5 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	1	4 Port

PTO Rear	540 rpm	540/750 rpm
PTO Type	Independent, electro-hydraulic engagement	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	2,756 lb	3,306 lb
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,469 lb	2,425 lb

R3 Turf - Rear	41X14.00-20	41x14-20 / 44x18-20
R3 Turf - Front	28X8.50-15	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5LX24	17.5Lx24
R4 Industrial - Front	12X16.5	12-16.5
R1 Agricultural - Rear	13.6-24	13.6-26
R1 Agricultural - Front	9.5-16	9.5-16

Coolant Capacity	2.3 gal	8.3 qt
Crankcase Capacity	5.8 qt	4.8 qt
Fuel Tank Capacity	11.0 gal	11.8 gal
Front Axle Fluid Capacity	2.2 gal	6.8 qt
Transmission / Hydraulic System Capacity	11.4 gal	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	109 in	106.6 in
Loader Breakout Force	4,081 lb	3,660 lb
Quick Attach Loader System	260TLA: New Holland Quick Mount; optional skid steer quick attach plates	BL200C: Quick attach mechanism
Loader Lift Capacity (Full Height)	2,371 lb	2,701 lb

Clutch	HST: Not Applicable; Gear: Dry disc	HST: Not Applicable; Gear: Dry single plate
No. of Speeds	HST: 3-range; Gear: 16F/16R	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	HST: 3-range hydrostatic; Gear: 16x16	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	HST: 15.63 mph; Gear: 16.8 mph	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	HST: 11.37 mph; Gear: 15.3 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock system

Brakes	Wet disc	Wet, multi disc
Steering	Power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	Not Published
Drawbar Capacity	Short: 2,317 lb; Regular: 1,598 lb; Extend: 1,091 lb	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Suspension seat

Wheelbase	73 in	71.1 in
Overall Width	63 in	64.9 in
Ground Clearance	15 in	15.5 in
Height to Top of ROPS	96 in	Not Applicable
Height to Top of Cab Model	91 in	97.0 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	142 in	127.4 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

New Holland Boomer 45 vs TYM 4820C: Quick Answers

Which has more horsepower, the New Holland Boomer 45 or the TYM 4820C?: The TYM 4820C leads on engine hp at 48 hp hp, compared to 47.7 hp hp for the New Holland Boomer 45.
Which has more PTO horsepower, the New Holland Boomer 45 or the TYM 4820C?: The TYM 4820C leads on pto hp at 38.4 hp hp, compared to 36 hp hp for the New Holland Boomer 45.
Which has more loader lift capacity, the New Holland Boomer 45 or the TYM 4820C?: The TYM 4820C leads on loader lift at 2,701 lb lb, compared to 2,371 lb lb for the New Holland Boomer 45.
Which has more three-point hitch lift capacity, the New Holland Boomer 45 or the TYM 4820C?: The New Holland Boomer 45 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the TYM 4820C.
