| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | F36 | F36 |
|---|
| Engine Type | 4-cylinder diesel, turbocharged and aftercooled | 4-cylinder diesel, turbocharged and aftercooled |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 219.7 in³ | 219.7 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|

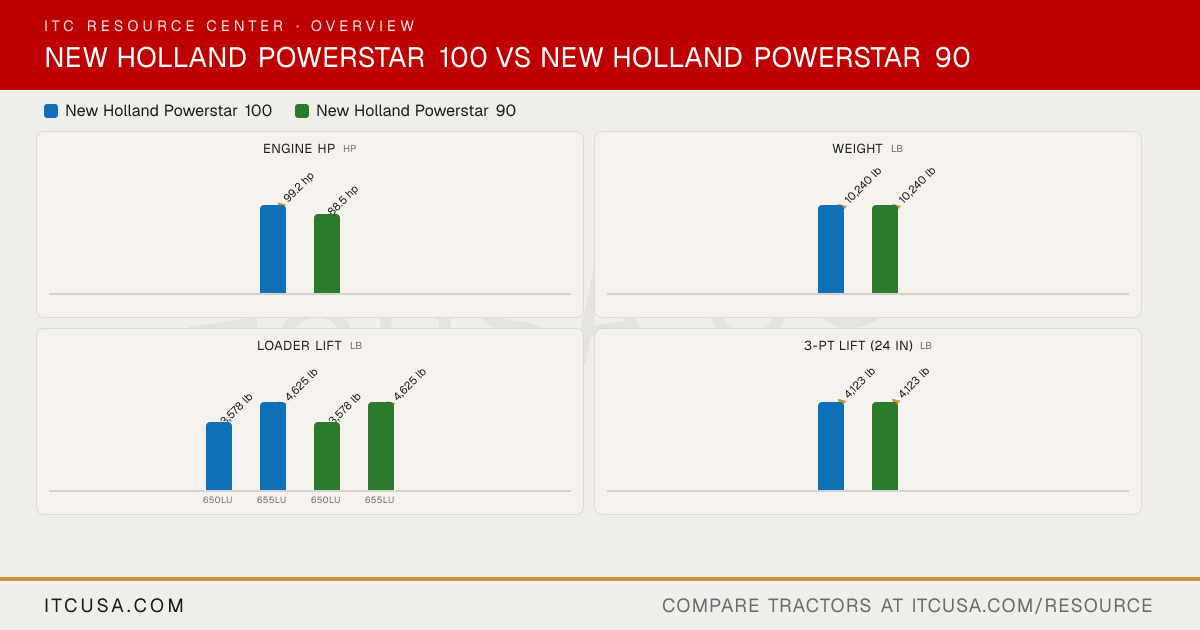

| Engine Power (Gross) | 99.2 hp | 88.5 hp |
|---|
| PTO Power | Not Published | Not Published |
|---|
| Engine Emissions Constraints | Stage V (ECOBlue Compact HI-eSCR + Light CEGR) | Stage V (ECOBlue Compact HI-eSCR + Light CEGR) |
|---|
| Cooling System Type | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Common rail fuel injection | Common rail fuel injection |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Open center, dual pumps: implement pump plus dedicated steering pump | Open center, dual pumps: implement pump plus dedicated steering pump |
|---|
| Implement Flow | 21.7 gpm | 21.7 gpm |
|---|
| Steering Flow | 9.7 gpm | 9.7 gpm |
|---|
| Total Hydraulic Flow | 31.4 gpm (21.7 + 9.7, computed) | 31.4 gpm (21.7 + 9.7, computed) |
|---|
| Overall Hydraulic Pump Flow | 31.4 gpm (21.7 + 9.7, computed) | 31.4 gpm (21.7 + 9.7, computed) |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 rear remotes (four couplers) | 2 rear remotes (four couplers) |
|---|
| No. of Optional Remote Valves | 1 (3rd rear remote); 1 with diverter (3rd rear remote with 1 diverter) | 1 (3rd rear remote); 1 with diverter (3rd rear remote with 1 diverter) |
|---|
|
|---|
| Fuel Tank Capacity | 34.3 gal | 34.3 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Fully independent electrohydraulic PTO, wet clutch | Fully independent electrohydraulic PTO, wet clutch |
|---|
| PTO Rear | 540/1000 rpm (interchangeable, standard) | 540/1000 rpm (interchangeable, standard) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Category II |
|---|
| Hitch Lift Capacity | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,123 lb | 4,123 lb |
|---|
| Lift Control Type | 12x12 models: mechanical draft control; Dual Command models: electronic draft control; single-lever Lift-O-Matic PLUS (standard) | Electronic draft control (Dual Command); single-lever Lift-O-Matic PLUS (standard) |
|---|
|
|---|
| Transmission Type | 12x12 power shuttle; 20x20 power shuttle with creeper; 24x24 Dual Command hi-lo power shuttle (column-mounted) | 24x24 Dual Command hi-lo power shuttle, column-mounted |
|---|
| No. of Speeds | 12F/12R; 20F/20R with creeper; 24F/24R Dual Command | 24F/24R (Dual Command) |
|---|
| Max Travel Speed (Forward) | 25 mph | 25 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electrohydraulic rear differential lock | Electrohydraulic rear differential lock |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Not Published | Not Published |
|---|
| Brakes | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Air-suspension cloth seat | Air-suspension cloth seat |
|---|
| Front Axle Type | Heavy-duty class 1.5 4WD front axle | Heavy-duty class 1.5 4WD front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 56.9 in min to 84.8 in max (front wheels); 56.1 in min to 84.2 in max (rear wheels) | 56.9 in min to 84.8 in max (front wheels); 56.1 in min to 84.2 in max (rear wheels) |
|---|
| Wheelbase | 92.5 in | 92.5 in |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 103.6 in | 103.6 in |
|---|
| Overall Length | 158.2 in | 158.2 in |
|---|
|
|---|
| Tractor Weight (Base) | 10,240 lb | 10,240 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 420/85R38 (reference tire for weight and dimensions); rear tires as large as R38 available | 420/85R38 (reference tire for weight and dimensions); rear tires as large as R38 available |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid-steer-style or Euro-style quick attach faceplate (available, both LU loaders) | Skid-steer-style or Euro-style quick attach faceplate (available, both LU loaders) |
|---|
| Loader Model | 650LU (NSL); 655LU (MSL) | 650LU (NSL); 655LU (MSL) |
|---|
| Loader Lift Height | 650LU: 149.7 in; 655LU: 149.7 in (max lift height to pivot pin) | 650LU: 149.7 in; 655LU: 149.7 in |
|---|
| Loader Lift Capacity (Full Height) | 650LU: 3,578 lb; 655LU: 4,625 lb (at 31.5 in from pivot point) | 650LU: 3,578 lb; 655LU: 4,625 lb (at 31.5 in from pivot point) |
|---|
| Loader Breakout Force | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
