New Holland Powerstar 120 vs New Holland T5.115

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the New Holland Powerstar 120, 4 to the New Holland T5.115. Machine pages: New Holland Powerstar 120 and New Holland T5.115.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Powerstar 120	New Holland T5.115
Engine HP (hp)	▲ 117 hp	114 hp
PTO HP (hp)	▲ 100 hp	98 hp
Weight (lb)	6,988 lb	▲ 9,700 lb
Loader Lift (lb)	▲ 4,204 lb	3,681 lb
3-Pt Lift (24 in) (lb)	5,620 lb	▲ 6,393 lb
Lift Height (in)	135 in	▲ 146 in
Breakout Force (lbf)	▲ 5,661 lbf	4,100 lbf
Hydraulic Flow (gpm)	26.6 gpm	▲ 32.5 gpm
Travel Speed (mph)	27 mph	n/a

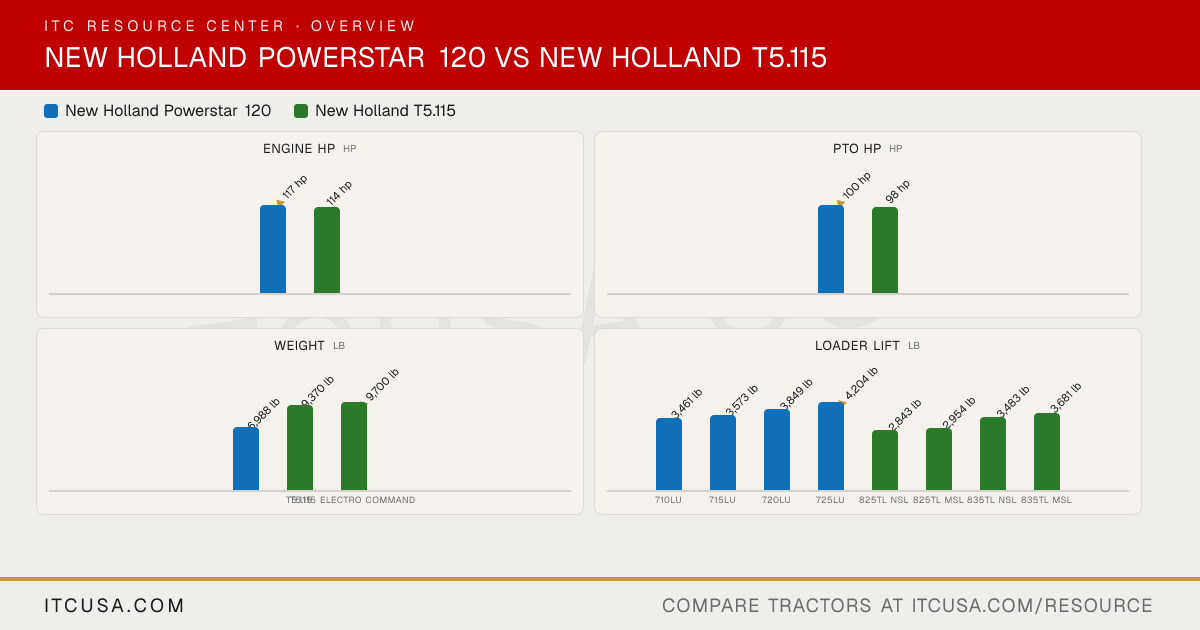

The headline numbers at a glance.

New Holland Powerstar 120New Holland T5.115

Engine HPhp

▲117 hp

114 hp

PTO HPhp

▲100 hp

98 hp

Weightlb

6,988 lb

9,370 lb

▲9,700 lb

T5.115T5.115 Electro Command

Loader Liftlb

3,461 lb

3,573 lb

3,849 lb

▲4,204 lb

2,843 lb

2,954 lb

3,483 lb

3,681 lb

710LU715LU720LU725LU825TL NSL825TL MSL835TL NSL835TL MSL

3-Pt Lift (24 in)lb

5,620 lb

▲6,393 lb

T5.115T5.115 Electro Command

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandPowerstar 120	New HollandT5.115


Engine Manufacturer	FPT Industrial	FPT
Engine Model	F5G	F5D
Engine Type	4-cylinder diesel, turbocharged and aftercooled	4-cylinder diesel
No. of Cylinders	4	4
Displacement	207 in³	207 in³
Rated Engine Speed	2300 rpm	2300 rpm
Engine Power (Gross)	117 hp	114 hp
PTO Power	100 hp	98 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Electronic high-pressure common rail fuel injection	Not Published
Alternator	ROPS: 120 A; Cab: 150 A	120 A

Pump Type	Open-center; dual pumps (implement pump plus dedicated steering pump)	Gear pumps
Implement Flow	16.9 gpm	T5.115: 16.1 gpm (21.1 gpm optional); T5.115 Electro Command: 21.1 gpm (16.1 gpm optional)
Steering Flow	9.7 gpm	T5.115: 10.0 gpm (11.4 gpm optional); T5.115 Electro Command: 11.4 gpm (10.0 gpm optional)
Total Hydraulic Flow	26.6 gpm	T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed)
Overall Hydraulic Pump Flow	26.6 gpm	T5.115: 26.1 gpm (16.1 + 10.0, computed); T5.115 Electro Command: 32.5 gpm (21.1 + 11.4, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 rear remotes (open center with detent)	2 (3 optional)
No. of Optional Remote Valves	1 (third rear remote, DIA kit)	Not Published

Fuel Tank Capacity	30.3 gal	37 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Fully independent hydraulic PTO	Independent, electro-hydraulic clutch
PTO Rear	540/1000 rpm (standard, interchangeable shafts)	540/1000
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II	Category II
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	5,620 lb	T5.115: 6,393 lb (10,452 lb with 2 optional rams); T5.115 Electro Command: 6,393 lb (8,809 lb with 1 optional ram, 10,452 lb with 2)
Lift Control Type	Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard)	Electronic draft control

Transmission Type	12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional)	T5.115: 12x12 power shuttle (standard), 20x20 power shuttle with creeper or 24x24 Dual Command power shuttle (optional); T5.115 Electro Command: 16x16 power shuttle (standard), 32x32 power shuttle with creeper (optional)
No. of Speeds	12F/12R (standard); 20F/20R with creeper (optional)	T5.115: 12F/12R (20F/20R or 24F/24R optional); T5.115 Electro Command: 16F/16R (32F/32R optional)
Max Travel Speed (Forward)	27 mph (4WD front axle); 20 mph (2WD front axle)	Not Published
Max Travel Speed (Reverse)	27.25 mph (12x12, 4WD front axle, 18R34 tires)	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement	Electro-hydraulic rear differential lock; limited slip front

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Hydraulic wet disc	Hydraulic wet disc
Seat Suspension & Adjustability	Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests	Numerous seat options including a premium low-frequency heated air-suspension seat; full-size instructor seat available
Front Axle Type	Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional)	Heavy-duty 4WD front axle (standard)
Front Axle Rating	10,360 lb (standard heavy-duty 4WD front axle, maximum capacity); 7,716 lb (optional 2WD heavy-duty front axle)	4,500 lb (in-action capacity at 4 mph)
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	163.1 in (2WD); 160.9 in (4WD)	T5.115: 163.8 in; T5.115 Electro Command: 165.0 in
Overall Width	75.7 in	82.6 in
Wheelbase	92.2 in (2WD); 89.9 in (4WD)	92.5 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	134 in (optional 2WD front axle, w/o brakes)	Not Published
Height to Top of ROPS	106.5 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	102.1 in	T5.115: 105.4 in; T5.115 Electro Command: 105.6 in (non-suspended cab), 107.2 in (suspended cab)

Tractor Weight (Base)	6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD)	T5.115: 9,370 lb; T5.115 Electro Command: 9,700 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions	Not Published
R1 Agricultural - Front	2WD: 10.00-16; 4WD: 12.4-24	Not Published
R1 Agricultural - Rear	18.4R34 (reference tire for OEM weights and dimensions)	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders)	Skid-steer-style or European-style
Loader Model	710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL)	825TL; 835TL (each NSL or MSL)
Loader Lift Height	710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in	825TL: 138 in; 835TL: 146 in
Loader Lift Capacity (Full Height)	710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb	825TL NSL: 2,843 lb; 825TL MSL: 2,954 lb; 835TL NSL: 3,483 lb; 835TL MSL: 3,681 lb
Loader Breakout Force	710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point)	825TL NSL: 2,976 lb; 825TL MSL: 3,284 lb; 835TL NSL: 3,725 lb; 835TL MSL: 4,100 lb

Warranty Length & Coverage	Not Published	Not Published

Find a New Holland dealer near you

New Holland Powerstar 120 vs New Holland T5.115: Quick Answers

Which has more horsepower, the New Holland Powerstar 120 or the New Holland T5.115?: The New Holland Powerstar 120 leads on engine hp at 117 hp hp, compared to 114 hp hp for the New Holland T5.115.
Which has more PTO horsepower, the New Holland Powerstar 120 or the New Holland T5.115?: The New Holland Powerstar 120 leads on pto hp at 100 hp hp, compared to 98 hp hp for the New Holland T5.115.
Which is heavier, the New Holland Powerstar 120 or the New Holland T5.115?: The New Holland T5.115 leads on weight at 9,700 lb lb, compared to 6,988 lb lb for the New Holland Powerstar 120.
Which has more loader lift capacity, the New Holland Powerstar 120 or the New Holland T5.115?: The New Holland Powerstar 120 leads on loader lift at 4,204 lb lb, compared to 3,681 lb lb for the New Holland T5.115.
Which has more three-point hitch lift capacity, the New Holland Powerstar 120 or the New Holland T5.115?: The New Holland T5.115 leads on 3-pt lift (24 in) at 6,393 lb lb, compared to 5,620 lb lb for the New Holland Powerstar 120.
