Across 4 measurable specs, the New Holland T3.70F leads 3 categories to 1. Machine pages: New Holland T3.70F and New Holland Workmaster 60.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | New Holland T3.70F | New Holland Workmaster 60 |
|---|
| Engine HP (hp) | ▲ 64 hp | 60.9 hp |
| PTO HP (hp) | 50 hp | ▲ 51.7 hp |
| Loader Lift (lb) | — | 3,130 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 4,000 lb | 2,701 lb |
| Lift Height (in) | — | 122 in |
| Breakout Force (lbf) | — | 3,527 lbf |
| Hydraulic Flow (gpm) | ▲ 20.2 gpm | 17.5 gpm |
| Travel Speed (mph) | — | 19.8 mph |

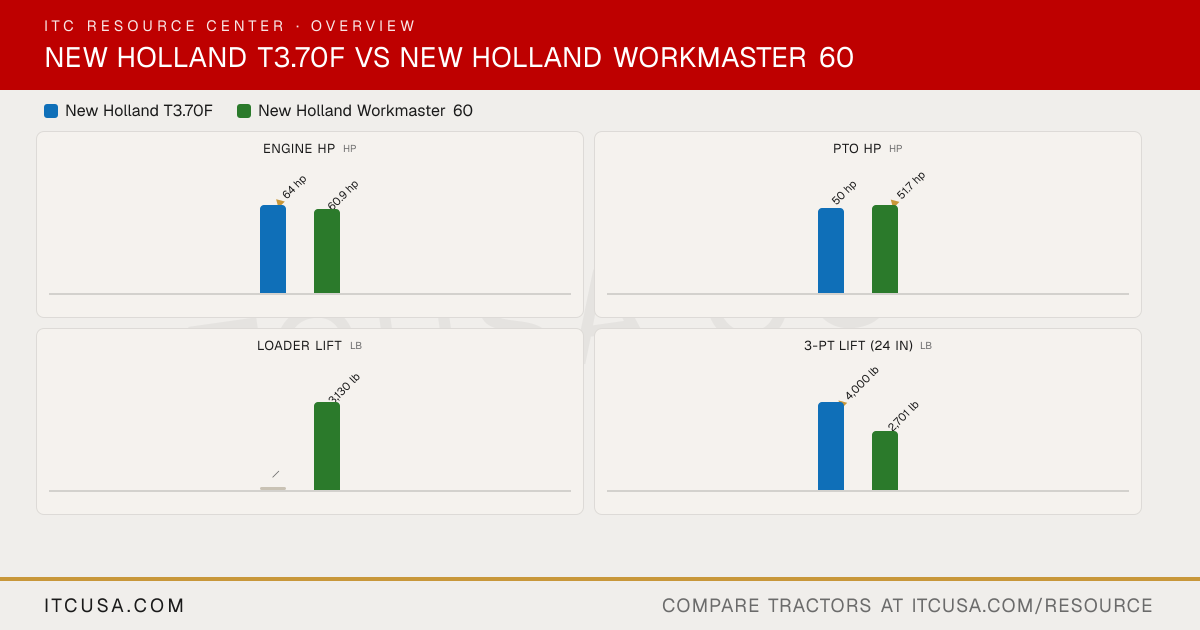

The headline numbers at a glance.
New Holland T3.70FNew Holland Workmaster 60
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandT3.70F | New HollandWorkmaster 60 |
|---|
|
|---|
| PTO Power | 50 hp | 51.7 hp |
|---|
| Alternator | Not Published | 75 A, 12 V |
|---|
| Air Cleaner | Not Published | Inner and outer paper elements |
|---|
| Engine Type | Turbocharged, intercooled 3-cylinder diesel | Turbocharged, intercooled 3-cylinder diesel |
|---|
| Fuel System | Common rail fuel injection | CRDI |
|---|
| Displacement | 179 in³ | 136 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 2300 rpm | 2600 rpm |
|---|
| Cooling System Type | Not Published | Pressurized liquid with recirculating bypass |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 64 hp | 60.9 hp |
|---|
| Engine Emissions Constraints | Tier 4B CEGR + DOC | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Dual-pump | Open-center; dual pumps |
|---|
| Steering Flow | 7.6 gpm | 5.5 gpm |
|---|
| Implement Flow | 12.6 gpm | 12 gpm |
|---|
| Total Hydraulic Flow | 20.2 gpm | 17.5 gpm |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 20.2 gpm | 17.5 gpm |
|---|
| No. of Optional Remote Valves | 3 | 2 |
|---|
| No. of Standard Remote Valves | 2 | 1 |
|---|
|
|---|
| PTO Rear | 540/540E | 540 rpm |
|---|
| PTO Type | Not Published | Independent |
|---|
| Lift Control Type | Lift-O-Matic | Not Published |
|---|
| Hitch Lift Capacity | Not Published | 3,307 lb at ball ends |
|---|
| Mid-PTO Availability | Not Published | Not Applicable |
|---|
| Category, 3-Point Hitch | Not Published | Category II/I |
|---|
| Hitch Lift Capacity (at 24”) | 4,000 lb | 2,701 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | R1 Agricultural, R4 Industrial |
|---|
| R4 Industrial - Rear | Not Published | 18.4X24R4 |
|---|
| R4 Industrial - Front | Not Published | 12.5X18 |
|---|
| R1 Agricultural - Rear | 320/70R20 | 13.6X28R1, 6 ply; 14.9X28R1, 6 ply |
|---|
| R1 Agricultural - Front | Not Published | 8.3X24, 6 ply |
|---|
|
|---|
| Coolant Capacity | Not Published | 10.6 qt |
|---|
| Crankcase Capacity | Not Published | 6.7 qt |
|---|
| Fuel Tank Capacity | Not Published | 17.2 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 8.0 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 6.6 gal |
|---|
|
|---|
| Loader Lift Height | Not Published | Up to 122 in |
|---|
| Loader Breakout Force | Not Published | Up to 3,527 lb |
|---|
| Quick Attach Loader System | Not Published | 600TL: Front loader (quick-attach design) |
|---|
| Loader Lift Capacity (Full Height) | Not Published | Up to 3,130 lb |
|---|
|
|---|
| Clutch | Not Published | LUK, 11 in |
|---|
| No. of Speeds | 12F/12R | 8F/8R |
|---|
| Transmission Type | 12x12 Mechanical Shuttle | 8x8 synchronized shuttle |
|---|
| Max Travel Speed (Forward) | Not Published | 19.8 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 20.9 mph |
|---|
| Differential Lock & Limited Slip Options | Not Published | Rear differential lock (pedal) |
|---|
|
|---|
| Brakes | Not Published | Wet disc |
|---|
| Steering | Not Published | Power |
|---|
| Frame Type | Straddle-deck platform | Not Published |
|---|
| Front Axle Type | 4WD front axle (electronic engagement) | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | 6,500 lb dynamic capacity |
|---|
| Seat Suspension & Adjustability | Vinyl suspension seat | Not Published |
|---|
|
|---|
| Wheelbase | 73 in | 77.2 in |
|---|
| Overall Width | 57 in | 67.5 in |
|---|
| Ground Clearance | Not Published | 15.9 in |
|---|
| Height to Top of ROPS | 97 in | 97.6 in |
|---|
| Height to Top of Cab Model | Not Published | 105.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | 77.0 in |
|---|
| Min. Turn Radius without Brakes | Not Published | 190.9 in |
|---|
| Overall Length with 3-Point Hitch | 143 in | 134.0 in |
|---|
New Holland T3.70F vs New Holland Workmaster 60: Quick Answers
- Which has more horsepower, the New Holland T3.70F or the New Holland Workmaster 60?
- The New Holland T3.70F leads on engine hp at 64 hp hp, compared to 60.9 hp hp for the New Holland Workmaster 60.
- Which has more PTO horsepower, the New Holland T3.70F or the New Holland Workmaster 60?
- The New Holland Workmaster 60 leads on pto hp at 51.7 hp hp, compared to 50 hp hp for the New Holland T3.70F.
- Which has more three-point hitch lift capacity, the New Holland T3.70F or the New Holland Workmaster 60?
- The New Holland T3.70F leads on 3-pt lift (24 in) at 4,000 lb lb, compared to 2,701 lb lb for the New Holland Workmaster 60.
