Across 4 measurable specs, this matchup is a dead heat: 2 categories to the New Holland T3.70F, 2 to the New Holland Workmaster 70. Machine pages: New Holland T3.70F and New Holland Workmaster 70 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

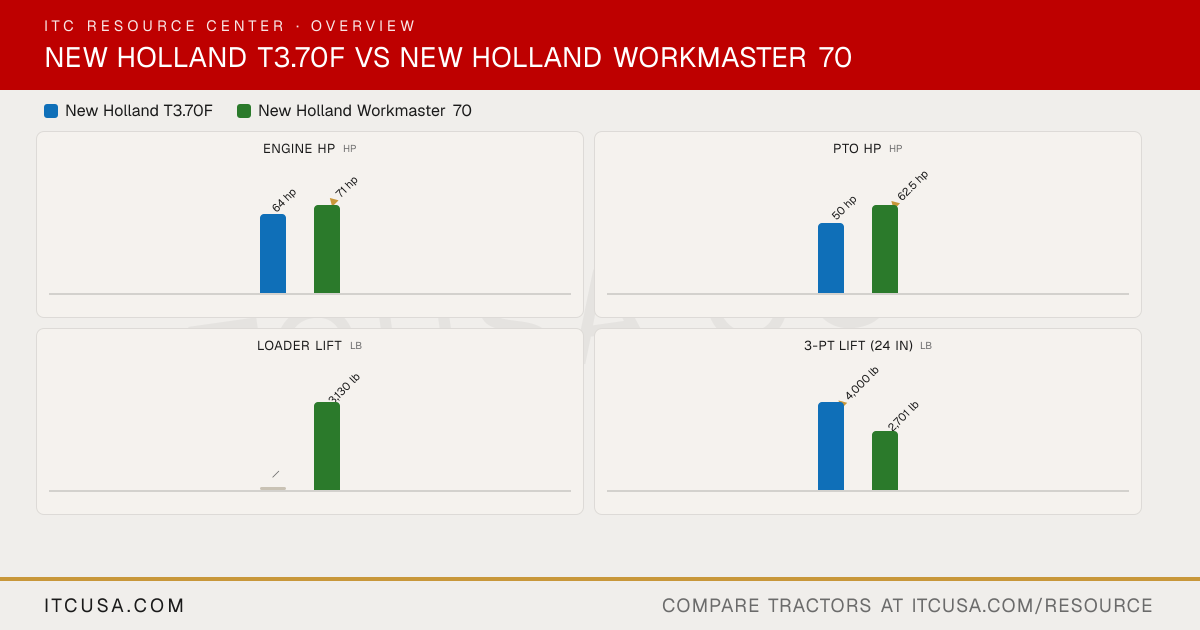

Category Verdict Spec New Holland T3.70F New Holland Workmaster 70 Engine HP (hp) 64 hp ▲ 71 hpPTO HP (hp) 50 hp ▲ 62.5 hpLoader Lift (lb) — 3,130 lb 3-Pt Lift (24 in) (lb) ▲ 4,000 lb2,701 lb Lift Height (in) — 122 in Breakout Force (lbf) — 3,527 lbf Hydraulic Flow (gpm) ▲ 20.2 gpm17.5 gpm Travel Speed (mph) — 19.8 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
New Holland T3.70F New Holland Workmaster 70
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec New Holland T3.70F New Holland Workmaster 70
▶ EnginePTO Power 50 hp 62.5 hp Alternator Not Published 75 A, 12 V Air Cleaner Not Published Inner and outer paper elements Engine Type Turbocharged, intercooled 3-cylinder diesel Turbocharged, intercooled 3-cylinder diesel Fuel System Common rail fuel injection CRDI Displacement 179 in³ 136 in³ No. of Cylinders 3 3 Rated Engine Speed 2300 rpm 2600 rpm Cooling System Type Not Published Pressurized liquid with recirculating bypass Engine Manufacturer FPT Industrial FPT Industrial Engine Power (Gross) 64 hp 71 hp Engine Emissions Constraints Tier 4B CEGR + DOC Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published ▶ HydraulicsPump Type Dual-pump Open-center; dual pumps Steering Flow 7.6 gpm 5.5 gpm Implement Flow 12.6 gpm 12 gpm Total Hydraulic Flow 20.2 gpm 17.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 20.2 gpm 17.5 gpm No. of Optional Remote Valves 3 2 No. of Standard Remote Valves 2 1 ▶ PTO & HitchPTO Rear 540/540E 540 rpm PTO Type Not Published Independent Lift Control Type Lift-O-Matic Not Published Hitch Lift Capacity Not Published 3,307 lb at ball ends Mid-PTO Availability Not Published Not Applicable Category, 3-Point Hitch Not Published Category II/I Hitch Lift Capacity (at 24”) 4,000 lb 2,701 lb ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options Not Published R1 Agricultural, R4 Industrial R4 Industrial - Rear Not Published 18.4X24R4 R4 Industrial - Front Not Published 12.5X18 R1 Agricultural - Rear 320/70R20 13.6X28R1, 6 ply; 14.9X28R1, 6 ply R1 Agricultural - Front Not Published 8.3X24, 6 ply ▶ Fluid CapacityCoolant Capacity Not Published 10.6 qt Crankcase Capacity Not Published 6.7 qt Fuel Tank Capacity Not Published 17.2 gal Front Axle Fluid Capacity Not Published 8.0 qt Transmission / Hydraulic System Capacity Not Published 6.6 gal ▶ Loader & AttachmentsLoader Lift Height Not Published Up to 122 in Loader Breakout Force Not Published Up to 3,527 lb Quick Attach Loader System Not Published 600TL: Front loader (quick-attach design) Loader Lift Capacity (Full Height) Not Published Up to 3,130 lb ▶ Transmission & DrivetrainClutch Not Published LUK, 11 in No. of Speeds 12F/12R 8F/8R Transmission Type 12x12 Mechanical Shuttle 8x8 synchronized shuttle Max Travel Speed (Forward) Not Published 19.8 mph Max Travel Speed (Reverse) Not Published 20.9 mph Differential Lock & Limited Slip Options Not Published Rear differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Not Published Wet disc Steering Not Published Power Frame Type Straddle-deck platform Not Published Front Axle Type 4WD front axle (electronic engagement) Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published 6,500 lb dynamic capacity Seat Suspension & Adjustability Vinyl suspension seat Not Published ▶ Dimensions & ManeuverabilityWheelbase 73 in 77.2 in Overall Width 57 in 67.5 in Ground Clearance Not Published 15.9 in Height to Top of ROPS 97 in 97.6 in Height to Top of Cab Model Not Published 105.4 in Height to Top of ROPS (folded) Not Published 77.0 in Min. Turn Radius without Brakes Not Published 190.9 in Overall Length with 3-Point Hitch 143 in 134.0 in
New Holland T3.70F vs New Holland Workmaster 70: Quick Answers
Which has more horsepower, the New Holland T3.70F or the New Holland Workmaster 70? The New Holland Workmaster 70 leads on engine hp at 71 hp hp, compared to 64 hp hp for the New Holland T3.70F.
Which has more PTO horsepower, the New Holland T3.70F or the New Holland Workmaster 70? The New Holland Workmaster 70 leads on pto hp at 62.5 hp hp, compared to 50 hp hp for the New Holland T3.70F.
Which has more three-point hitch lift capacity, the New Holland T3.70F or the New Holland Workmaster 70? The New Holland T3.70F leads on 3-pt lift (24 in) at 4,000 lb lb, compared to 2,701 lb lb for the New Holland Workmaster 70. More Head-to-Heads
