Across 4 measurable specs, the New Holland TK4.80F leads 3 categories to 1. Machine pages: New Holland T3.80F and New Holland TK4.80F.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | New Holland T3.80F | New Holland TK4.80F |
|---|
| Engine HP (hp) | 74 hp | ▲ 75 hp |
| PTO HP (hp) | 60 hp | ▲ 65 hp |
| 3-Pt Lift (24 in) (lb) | 4,000 lb | ▲ 7,793 lb |
| Hydraulic Flow (gpm) | ▲ 20.2 gpm | 9.4 gpm |
| Travel Speed (mph) | n/a | 6.8 mph |

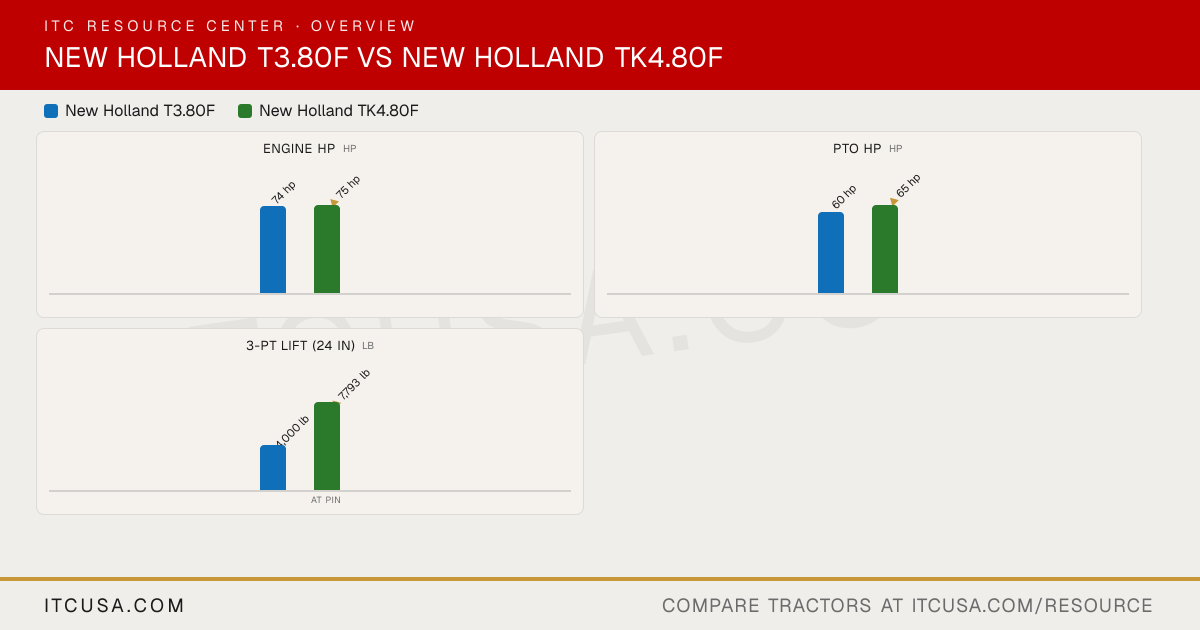

The headline numbers at a glance.
New Holland T3.80FNew Holland TK4.80F
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandT3.80F | New HollandTK4.80F |
|---|
|
|---|
| PTO Power | 60 hp | 65 hp |
|---|
| Alternator | Not Published | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Turbocharged, intercooled 3-cylinder diesel | Turbocharged intercooled diesel |
|---|
| Fuel System | Common rail fuel injection | High pressure Common Rail |
|---|
| Displacement | 179 in³ | 207 in³ |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Rated Engine Speed | 2300 rpm | 2300 rpm |
|---|
| Cooling System Type | Not Published | Liquid-cooled |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 74 hp | 75 hp |
|---|
| Engine Emissions Constraints | Tier 4B CEGR + DOC | Tier 4A / Stage IIIB CEGR |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Applicable |
|---|
| Weight with Cab and Loader | Not Published | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Dual-pump | Not Published |
|---|
| Steering Flow | 7.6 gpm | Not Published |
|---|
| Implement Flow | 12.6 gpm | 9.4 gpm |
|---|
| Total Hydraulic Flow | 20.2 gpm | Not Published |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 20.2 gpm | Not Published |
|---|
| No. of Optional Remote Valves | 3 | 4 |
|---|
| No. of Standard Remote Valves | 2 | Not Published |
|---|
|
|---|
| PTO Rear | 540/540E | 540/540E (Std); 540/1000 (Opt) |
|---|
| PTO Type | Not Published | Fully independent |
|---|
| Lift Control Type | Lift-O-Matic | Lift-O-Matic |
|---|
| Hitch Lift Capacity | Not Published | 7,793 lb |
|---|
| Mid-PTO Availability | Not Published | Not Applicable |
|---|
| Category, 3-Point Hitch | Not Published | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 4,000 lb | Not Published |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Applicable |
|---|
| R3 Turf - Front | Not Published | Not Applicable |
|---|
| Tire Size & Options | Not Published | Not Applicable |
|---|
| R4 Industrial - Rear | Not Published | Not Applicable |
|---|
| R4 Industrial - Front | Not Published | Not Applicable |
|---|
| R1 Agricultural - Rear | 320/70R20 | Not Applicable |
|---|
| R1 Agricultural - Front | Not Published | Not Applicable |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | Not Published | 21.1 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Applicable |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | Not Published | Not Applicable |
|---|
| Loader Breakout Force | Not Published | Not Applicable |
|---|
| Quick Attach Loader System | Not Published | Not Applicable |
|---|
| Loader Lift Capacity (Full Height) | Not Published | Not Applicable |
|---|
|
|---|
| Clutch | Not Published | Not Published |
|---|
| No. of Speeds | 12F/12R | 8F/8R |
|---|
| Transmission Type | 12x12 Mechanical Shuttle | Mechanical forward-reverse shuttle |
|---|
| Max Travel Speed (Forward) | Not Published | 6.8 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 6.8 mph |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Applicable |
|---|
|
|---|
| Brakes | Not Published | Not Published |
|---|
| Steering | Not Published | Steering-O-Matic; Steering-O-Matic Plus (optional) |
|---|
| Frame Type | Straddle-deck platform | Not Published |
|---|
| Front Axle Type | 4WD front axle (electronic engagement) | Not Applicable |
|---|
| Drawbar Capacity | Not Published | 1,323 lb vertical load |
|---|
| Front Axle Rating | Not Published | Not Applicable |
|---|
| Seat Suspension & Adjustability | Vinyl suspension seat | Air suspended seat (optional) |
|---|
|
|---|
| Wheelbase | 73 in | 52.8 in |
|---|
| Overall Width | 57 in | 55.1-57.1 in (1400-57.1 in) |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Height to Top of ROPS | 97 in | 94.1 in |
|---|
| Height to Top of Cab Model | Not Published | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 143 in | 137.6 in |
|---|
New Holland T3.80F vs New Holland TK4.80F: Quick Answers
- Which has more horsepower, the New Holland T3.80F or the New Holland TK4.80F?
- The New Holland TK4.80F leads on engine hp at 75 hp hp, compared to 74 hp hp for the New Holland T3.80F.
- Which has more PTO horsepower, the New Holland T3.80F or the New Holland TK4.80F?
- The New Holland TK4.80F leads on pto hp at 65 hp hp, compared to 60 hp hp for the New Holland T3.80F.
- Which has more three-point hitch lift capacity, the New Holland T3.80F or the New Holland TK4.80F?
- The New Holland TK4.80F leads on 3-pt lift (24 in) at 7,793 lb lb, compared to 4,000 lb lb for the New Holland T3.80F.
