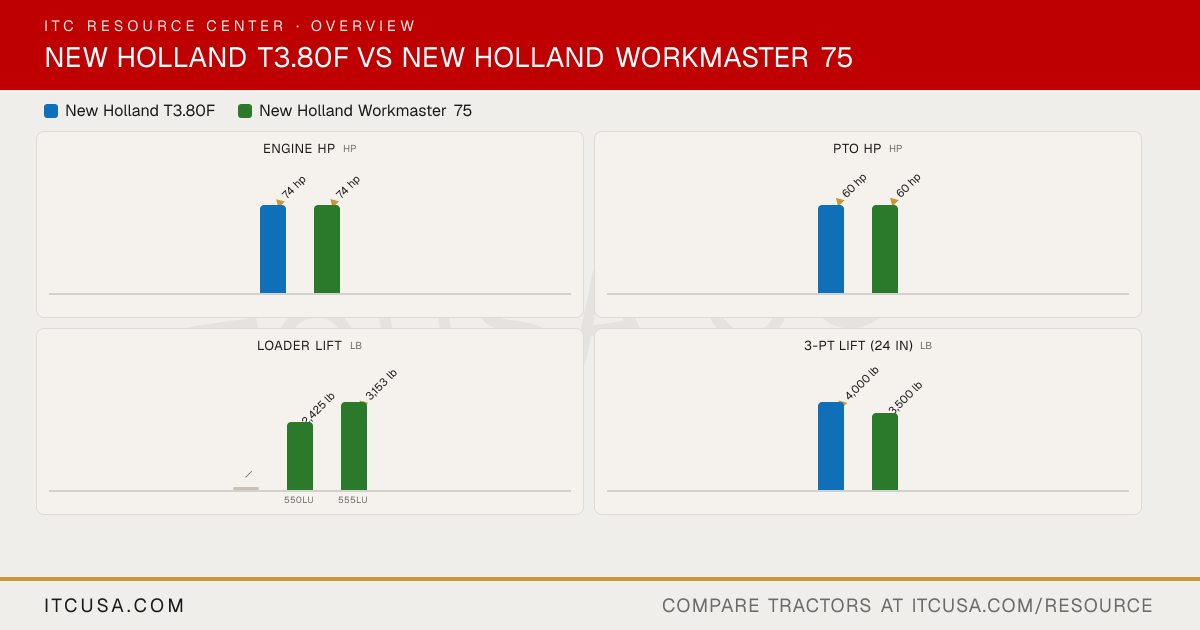

Across 5 measurable specs, this matchup is a dead heat: 1 categories to the New Holland T3.80F, 1 to the New Holland Workmaster 75, 3 tied. Machine pages: New Holland T3.80F and New Holland Workmaster 75 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec New Holland T3.80F New Holland Workmaster 75 Engine HP (hp) 74 hp 74 hp PTO HP (hp) 60 hp 60 hp Weight (lb) 5,000 lb ▲ 6,800 lb3-Pt Lift (24 in) (lb) ▲ 4,000 lb3,500 lb Lift Height (in) n/a 131.3 in Hydraulic Flow (gpm) 20.2 gpm 20.2 gpm Travel Speed (mph) n/a 25 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
New Holland T3.80F New Holland Workmaster 75
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
5,000 lb
6,250 lb
▲ 6,800 lb
ROPS Cab
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec New Holland T3.80F New Holland Workmaster 75
▶ EngineEngine Manufacturer Not Published FPT Engine Model S8000 S8000 Engine Type Turbocharged, intercooled 3-cylinder diesel Turbocharged 3-cylinder diesel No. of Cylinders 3 3 Displacement 179 in³ 179 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 60 hp 60 hp Engine Emissions Constraints Tier 4 Tier 4B Final Cooling System Type Not Published Not Published Air Cleaner Not Published PowerCore dry air cleaner Fuel System Common rail fuel injection Bosch electronic high-pressure common rail Alternator Not Published 120 A ▶ HydraulicsPump Type Dual-pump Dual gear pumps Implement Flow 12.6 gpm 12.6 gpm Steering Flow 7.6 gpm 7.6 gpm Total Hydraulic Flow 20.2 gpm 20.2 gpm Overall Hydraulic Pump Flow 20.2 gpm 20.2 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 3 1 ▶ Fluid CapacityFuel Tank Capacity Not Published 21.7 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Not Published Fully independent, hydraulic wet clutch PTO Rear 540/540E 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Not Published Category I/II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 4,000 lb 3,500 lb Lift Control Type Lift-O-Matic Mechanical draft control (upper-link draft sensing) ▶ Transmission & DrivetrainTransmission Type 12x12 Mechanical Shuttle 12x12 hydraulic power shuttle No. of Speeds 12F/12R 12F/12R Max Travel Speed (Forward) Not Published 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published 11 in single dry disc Differential Lock & Limited Slip Options Not Published Mechanically engaged rear differential lock; limited-slip 4WD front axle with electro-hydraulic push-button engagement ▶ Chassis, Steering & ControlsFrame Type Straddle-deck platform Not Published Steering Not Published Hydrostatic power steering Brakes Not Published Hydraulic-assist wet brakes Seat Suspension & Adjustability Vinyl suspension seat Cab: cloth air-suspension seat with fold-back instructor seat; ROPS: mechanical vinyl suspension seat Front Axle Type 4WD front axle, electronic engagement 4WD (MFD) limited-slip front axle, electro-hydraulic engagement Front Axle Rating Not Published 6,500 lb dynamic capacity Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 57 in Not Published Wheelbase 73 in 83.6 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 97 in 99.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 100.2 in Overall Length 143 in 154.1 in ▶ WeightTractor Weight (Base) 5,000 lb ROPS: 6,250 lb; Cab: 6,800 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 agricultural (11.2x24 / 16.9x30 standard, R1W radials optional), R4 industrial (12.5/80-18 / 19.5L-24) R1 Agricultural - Front Not Published 11.2x24 R1, 6 ply R1 Agricultural - Rear 320/70R20 16.9x30 R1, 6 ply R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4, 10 ply R4 Industrial - Rear Not Published 19.5L-24 R4, 10 ply ▶ Loader & AttachmentsQuick Attach Loader System Not Published 72 in bucket with SSL (skid steer) or Euro-style quick attach Loader Model Not Published 550LU (non self-leveling); 555LU (mechanical self-leveling) Loader Lift Height Not Published 550LU: 131.3 in; 555LU: 130.0 in (at pivot pin) Loader Lift Capacity (Full Height) Not Published Not Published Loader Breakout Force Not Published Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
New Holland T3.80F vs New Holland Workmaster 75: Quick Answers
Which has more horsepower, the New Holland T3.80F or the New Holland Workmaster 75? They are effectively tied: both machines are rated at 74 hp hp for engine hp.
Which has more PTO horsepower, the New Holland T3.80F or the New Holland Workmaster 75? They are effectively tied: both machines are rated at 60 hp hp for pto hp.
Which is heavier, the New Holland T3.80F or the New Holland Workmaster 75? The New Holland Workmaster 75 leads on weight at 6,800 lb lb, compared to 5,000 lb lb for the New Holland T3.80F.
Which has more three-point hitch lift capacity, the New Holland T3.80F or the New Holland Workmaster 75? The New Holland T3.80F leads on 3-pt lift (24 in) at 4,000 lb lb, compared to 3,500 lb lb for the New Holland Workmaster 75.
