Across 5 measurable specs, this matchup is a dead heat: 2 categories to the New Holland T3.80F, 2 to the Rural King RK74PSC, 1 tied. Machine pages: New Holland T3.80F and Rural King RK74PSC .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec New Holland T3.80F Rural King RK74PSC Engine HP (hp) 74 hp 74 hp PTO HP (hp) 60 hp ▲ 64.1 hpWeight (lb) 5,000 lb ▲ 6,052 lbLoader Lift (lb) n/a 3,223 lb 3-Pt Lift (24 in) (lb) ▲ 4,000 lb3,414 lb Lift Height (in) n/a 135.5 in Breakout Force (lbf) n/a 5,335 lbf Hydraulic Flow (gpm) ▲ 20.2 gpm16.1 gpm Travel Speed (mph) n/a 18.9 mph

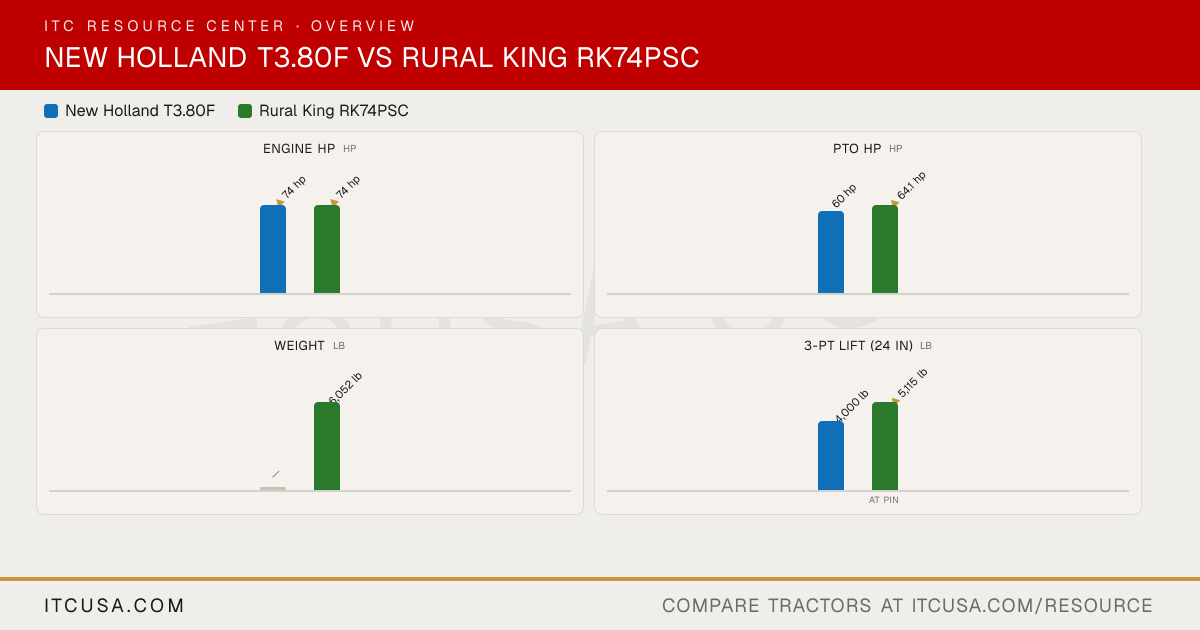

Overview Loader Work PTO Work
The headline numbers at a glance.
New Holland T3.80F Rural King RK74PSC
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec New Holland T3.80F Rural King RK74PSC
▶ EngineEngine Manufacturer Not Published Deutz Engine Model S8000 TCD2.9 L4 Engine Type Turbocharged, intercooled 3-cylinder diesel Turbocharged No. of Cylinders 3 4 Displacement 179 in³ 177.0 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 60 hp 64.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System Common rail fuel injection Common Rail Direct Injection Alternator Not Published 95 A, 12 V ▶ HydraulicsPump Type Dual-pump Not Published Implement Flow 12.6 gpm 10.3 gpm Steering Flow 7.6 gpm 5.8 gpm Total Hydraulic Flow 20.2 gpm 16.1 gpm Overall Hydraulic Pump Flow 20.2 gpm 10.3 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 3 3 ▶ Fluid CapacityFuel Tank Capacity Not Published 23.8 gal Coolant Capacity Not Published 10.6 qt Crankcase Capacity Not Published 8.5 qt Transmission / Hydraulic System Capacity Not Published 18.0 gal Front Axle Fluid Capacity Not Published 17.4 qt ▶ PTO & HitchPTO Type Not Published Independent PTO Rear 540/540E 540/750 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch Not Published Category II Hitch Lift Capacity Not Published 5,115 lb Hitch Lift Capacity (at 24”) 4,000 lb 3,414 lb Lift Control Type Lift-O-Matic Position / Draft / Mechanical ▶ Transmission & DrivetrainTransmission Type 12x12 Mechanical Shuttle 16F/16R Power Shuttle w/creeper No. of Speeds 12F/12R 16 forward, 16 reverse (creeper interlock) Max Travel Speed (Forward) Not Published 18.9 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Single plate dry clutch (11.81 in diameter); hydraulic clutch assembly for Independent PTO models Differential Lock & Limited Slip Options Not Published 4WD, differential lock ▶ Chassis, Steering & ControlsFrame Type Straddle-deck platform Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly Steering Not Published Hydrostatic power steering Brakes Not Published Wet disc Seat Suspension & Adjustability Vinyl suspension seat High-back suspension seat with extension Front Axle Type 4WD front axle, electronic engagement Center-pivot, reverse Elliot type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 143 in 157.5 in Overall Width 57 in 76.4 in Wheelbase 73 in 86.1 in Ground Clearance Not Published 18.3 in Min. Turn Radius without Brakes Not Published 162.8 in Height to Top of ROPS 97 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 103.3 in ▶ WeightTractor Weight (Base) 5,000 lb 6,052 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Titan (USA): R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt) R1 Agricultural - Front Not Published 11.2-24 R1 Agricultural - Rear 320/70R20 16.9-30 R3 Turf - Front Not Published 12.0-20.5 R3 Turf - Rear Not Published 22.4-25.5 R4 Industrial - Front Not Published 15-19.5 R4 Industrial - Rear Not Published 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published L135SL: Skid-steer compatible quick coupler, self-leveling Loader Model Not Published L135SL Loader Lift Height Not Published L135SL: 135.5 in Loader Lift Capacity (Full Height) Not Published L135SL: 3,223 lb at pivot pin to full height Loader Breakout Force Not Published L135SL: 5,335 lb at pivot pin ▶ WarrantyWarranty Length & Coverage Not Published Not Published
New Holland T3.80F vs Rural King RK74PSC: Quick Answers
Which has more horsepower, the New Holland T3.80F or the Rural King RK74PSC? They are effectively tied: both machines are rated at 74 hp hp for engine hp.
Which has more PTO horsepower, the New Holland T3.80F or the Rural King RK74PSC? The Rural King RK74PSC leads on pto hp at 64.1 hp hp, compared to 60 hp hp for the New Holland T3.80F.
Which is heavier, the New Holland T3.80F or the Rural King RK74PSC? The Rural King RK74PSC leads on weight at 6,052 lb lb, compared to 5,000 lb lb for the New Holland T3.80F.
Which has more three-point hitch lift capacity, the New Holland T3.80F or the Rural King RK74PSC? The New Holland T3.80F leads on 3-pt lift (24 in) at 4,000 lb lb, compared to 3,414 lb lb for the Rural King RK74PSC.
