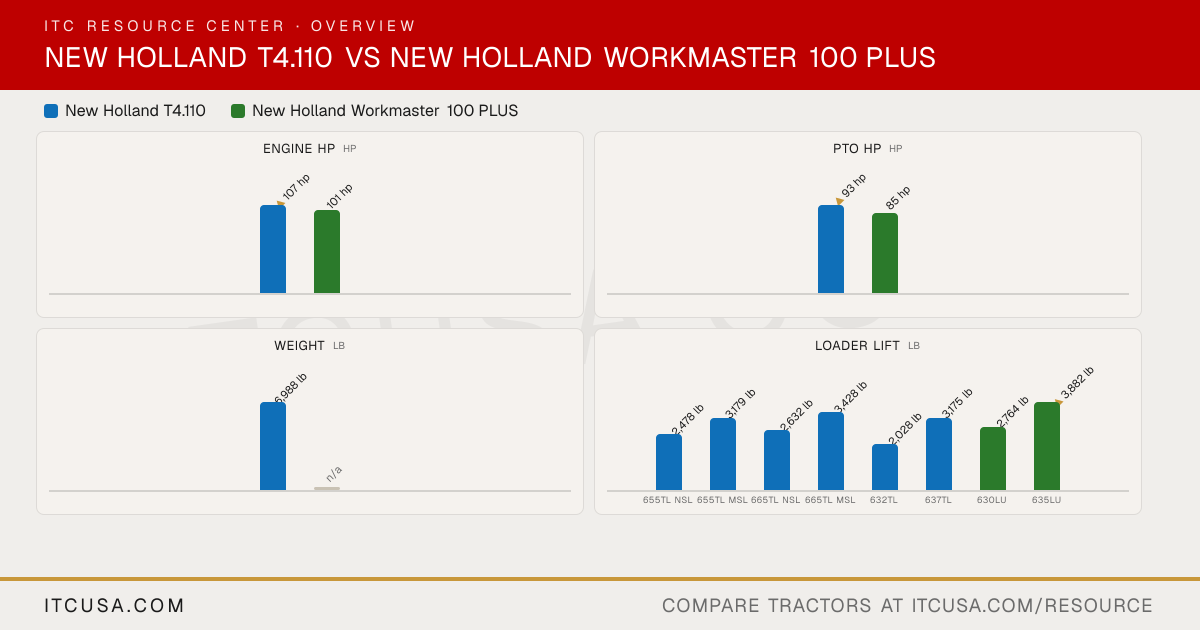

▶ EngineEngine Manufacturer FPT Industrial FPT Engine Model F5G F36 Engine Type 4-cylinder diesel, turbocharged and aftercooled 4-cylinder No. of Cylinders 4 4 Displacement 207 in³ Not Published Rated Engine Speed 2300 rpm Not Published Engine Power (Gross) 107 hp 101 hp PTO Power 93 hp 85 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Electronic high-pressure common rail fuel injection Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Open-center tandem gear pumps: implement pump plus steering and services pump Not Published Implement Flow 16.9 gpm Not Published Steering Flow 9.7 gpm Not Published Total Hydraulic Flow 26.6 gpm 26.6 gpm Overall Hydraulic Pump Flow 26.6 gpm Not Published Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 or 3 (base) Not Published No. of Optional Remote Valves Third rear remote (dealer-added) Not Published ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 34.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Hydraulic engagement with power shuttle or Dual Command (pull knob); lever engagement with mechanical shuttle Not Published PTO Rear 540 (12x12 base); 540/540E or 540/1000 (12x12 optional); 540/540E (24x24 Dual Command base); 540/1000 (24x24 Dual Command optional) Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (flexible link ends) Not Published Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 5,620 lb (7,351 lb with optional auxiliary lift ram) Not Published Lift Control Type 12x12: mechanical draft control; Dual Command cab: electronic draft control (EDC) with fender switches; single-lever Lift-O-Matic Plus (optional on 12x12, standard on Dual Command ROPS) Not Published ▶ Transmission & DrivetrainTransmission Type 12x12 mechanical shuttle (standard); 12x12 power shuttle, 20x20 power shuttle with creeper, 24x24 Dual Command Hi-Lo with electrohydraulic power shuttle, or 40x40 Dual Command with creeper (optional) 12x12 electronic power shuttle No. of Speeds 12F/12R (standard); 20F/20R, 24F/24R or 40F/40R (optional) 12 forward / 12 reverse Max Travel Speed (Forward) 20 mph (12x12 and 20x20 creeper, standard; 25 mph transport option); 25 mph (24x24 and 40x40 Dual Command) Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock, pedal (12x12 models); electrohydraulic rear differential lock, rocker switch (Dual Command models) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Not Published Brakes Wet disc Not Published Seat Suspension & Adjustability Cab: fabric mechanical-suspension seat or fabric air-suspension seat with swivel; full-size instructor seat available. ROPS: vinyl mechanical-suspension seat with armrests Air ride seat (standard); instructor seat available Front Axle Type Standard-duty, electronically engaged 4WD front axle (standard); optional: mechanically engaged standard-duty 4WD, electronically engaged heavy-duty 4WD, or heavy-duty 2WD front axle Class 1.0 HD heavy-duty front axle Front Axle Rating 9,479 lb (standard-duty 4WD, in-action capacity at 4 mph); 10,361 lb (heavy-duty 4WD, in-action capacity at 4 mph) Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 75.7 in Not Published Wheelbase 92.2 in (2WD); 89.9 in (4WD) Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 134 in (2WD heavy-duty front axle) Not Published Height to Top of ROPS 106.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.1 in Not Published Overall Length 163.1 in (2WD); 160.9 in (4WD) Not Published ▶ WeightTractor Weight (Base) 6,988 lb (2WD ROPS); 7,672 lb (4WD ROPS) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag: 11.2-24 front, 16.9-30 rear; 13.6-24 front, 16.9-34 rear; 12.4-24 front, 18.4-30 rear; 14.9-24 front, 18.4-34 rear; Turf: 13.6-16.1 front, 16.9-24 rear; Industrial: 12.5/80-18 front, 19.5L24 rear Not Published R1 Agricultural - Front 4WD: 11.2-24, 13.6-24, 12.4-24 or 14.9-24 (paired with 16.9-30, 16.9-34, 18.4-30 or 18.4-34 rears) Not Published R1 Agricultural - Rear 16.9-30, 16.9-34, 18.4-30 or 18.4-34 Not Published R3 Turf - Front 13.6-16.1 Not Published R3 Turf - Rear 16.9-24 Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 19.5L24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate Not Published Loader Model Factory-fit: 655TL (NSL or MSL), 665TL (NSL or MSL); field-fit: 632TL (NSL), 637TL (MSL) 630LU; 635LU Loader Lift Height 655TL NSL: 126 in; 655TL MSL: 125 in; 665TL NSL: 134 in; 665TL MSL: 135 in; 632TL: 134 in; 637TL: 134 in 143.9 in (630LU and 635LU) Loader Lift Capacity (Full Height) 655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 665TL NSL: 2,632 lb; 665TL MSL: 3,428 lb (at 31.5 in from pivot point); 632TL: 2,028 lb; 637TL: 3,175 lb (to max height at 31.5 in from pivot point) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, @ 31.5 in) Loader Breakout Force 655TL NSL: 3,739 lb; 655TL MSL: 3,860 lb; 665TL NSL: 4,455 lb; 665TL MSL: 5,661 lb (at 31.5 in from bucket pivot point); 632TL: 3,351 lb; 637TL: 3,461 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
