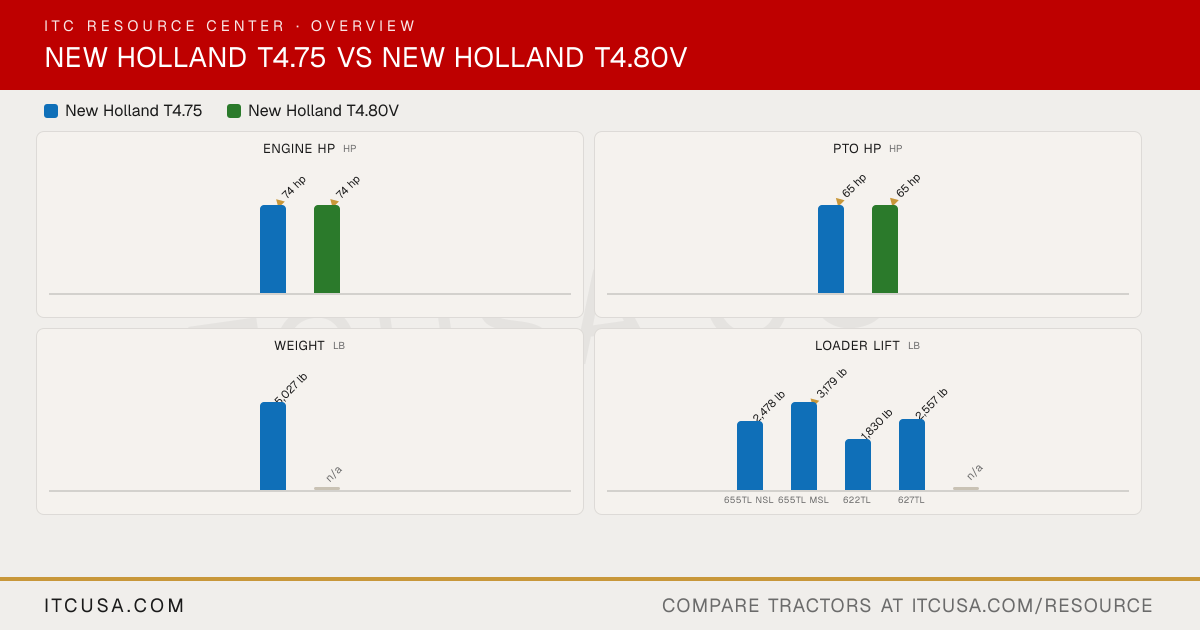

▶ EngineEngine Manufacturer FPT FPT Industrial Engine Model F5C F34 Engine Type 4-cylinder diesel, turbocharged 4-cylinder diesel, Smart Wastegate Turbo, intercooled No. of Cylinders 4 4 Displacement 207 in³ 207 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 65 hp 65 hp Engine Emissions Constraints US EPA Tier 4B Tier 4B Final Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System Common rail fuel injection Common-rail fuel injection Alternator 120 A Not Published ▶ HydraulicsPump Type Open center, dual pumps: implement pump plus dedicated steering and services pump Dual-pump, open center Implement Flow 12.5 gpm 16.9 gpm (standard); 21.1 gpm (optional, cab) Steering Flow 7.3 gpm (mechanical shuttle); 9.5 gpm (power shuttle) 9.2 gpm Total Hydraulic Flow 19.8 gpm (mechanical shuttle; 12.5 + 7.3, computed); 22.0 gpm (power shuttle; 12.5 + 9.5, computed) 26.1 gpm (16.9 + 9.2, computed); 30.3 gpm with optional cab implement pump (21.1 + 9.2, computed) Overall Hydraulic Pump Flow 19.8 gpm (mechanical shuttle; 12.5 + 7.3, computed); 22.0 gpm (power shuttle; 12.5 + 9.5, computed) 26.1 gpm (16.9 + 9.2, computed); 30.3 gpm with optional cab implement pump (21.1 + 9.2, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 3 rear remotes 3+2 (10 outlets) ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 15.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Fully independent Electrohydraulic wet clutch (optional) PTO Rear 540 rpm at 1,958 engine rpm (standard); 540E at 1,592 engine rpm (optional) 540/540E (std); 540/540E/1000 and ground speed (opt) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II / I Not Published Hitch Lift Capacity Not Published 5,181 lb Hitch Lift Capacity (at 24”) 3,664 lb Not Published Lift Control Type Mechanical draft control; top link draft sensing Mechanical draft control with Lift-O-Matic system (standard) ▶ Transmission & DrivetrainTransmission Type 8x8 mechanical synchro shuttle (standard); 8x8 hydraulic power shuttle, 12x12 mechanical synchro shuttle or 12x12 hydraulic power shuttle (optional); creeper available with the power shuttle transmissions 16x16 Shuttle Command; 16x16 Power Shuttle; 32x16 Dual Command No. of Speeds 8F/8R (standard); 12F/12R (optional); 12F/12R or 20F/20R with creeper (optional) 16F/16R; 32F/16R Max Travel Speed (Forward) 20.1 mph (8x8 and 12x12, 20 mph transmissions); 24.1 mph (optional 24 mph 12x12 transmission, 4WD only) 25 mph Max Travel Speed (Reverse) 20.1 mph Not Published Clutch Mechanical dry disc (mechanical shuttle); wet disc (power shuttle) Wet clutch Differential Lock & Limited Slip Options Mechanical rear differential lock Electro-hydraulic differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Not Published Brakes Hydraulic wet disc Oil-immersed brakes Seat Suspension & Adjustability Optional deluxe air suspension seat with fully integrated armrest and 10° swivel to the right; full-size instructor seat with seatbelt Not Published Front Axle Type Heavy-duty 2WD front axle; electronic 4WD front axle (optional) 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published 41.8 in Wheelbase 85.8 in (2WD); 83.9 in (4WD) 85.8 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 134 in (2WD front axle) Not Published Height to Top of ROPS Not Published 98.7 in Height to Top of ROPS (folded) 76 to 78.9 in Not Published Height to Top of Cab Model 94.8 to 97.8 in Not Published Overall Length 151 in Not Published ▶ WeightTractor Weight (Base) 5,027 lb (2WD ROPS); 5,952 lb (4WD ROPS) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Rear: 280/85R28 (T4V); other rear tires available R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer-style or Euro-style quick attach faceplate Not Published Loader Model Factory-fit: 655TL (NSL or MSL); field-fit: 622TL (NSL), 627TL (MSL) Not Published Loader Lift Height 655TL NSL: 126 in; 655TL MSL: 125 in; 622TL: 121 in; 627TL: 121 in Not Published Loader Lift Capacity (Full Height) 655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 622TL: 1,830 lb; 627TL: 2,557 lb (to max height, at 31.5 in from pivot point) Not Published Loader Breakout Force 655TL NSL: 3,739 lb; 655TL MSL: 4,665 lb; 622TL: 3,042 lb; 627TL: 3,307 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
