New Holland T4.75 vs Rural King RK74

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the New Holland T4.75, 4 to the Rural King RK74, 1 tied. Machine pages: New Holland T4.75 and Rural King RK74.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland T4.75	Rural King RK74
Engine HP (hp)	74 hp	74 hp
PTO HP (hp)	▲ 65 hp	64.1 hp
Weight (lb)	5,027 lb	▲ 6,052 lb
Loader Lift (lb)	3,179 lb	▲ 3,223 lb
3-Pt Lift (24 in) (lb)	▲ 3,664 lb	3,414 lb
Lift Height (in)	126 in	▲ 135.5 in
Breakout Force (lbf)	4,665 lbf	▲ 5,335 lbf
Hydraulic Flow (gpm)	▲ 19.8 gpm	16.1 gpm
Travel Speed (mph)	▲ 20.1 mph	18.9 mph

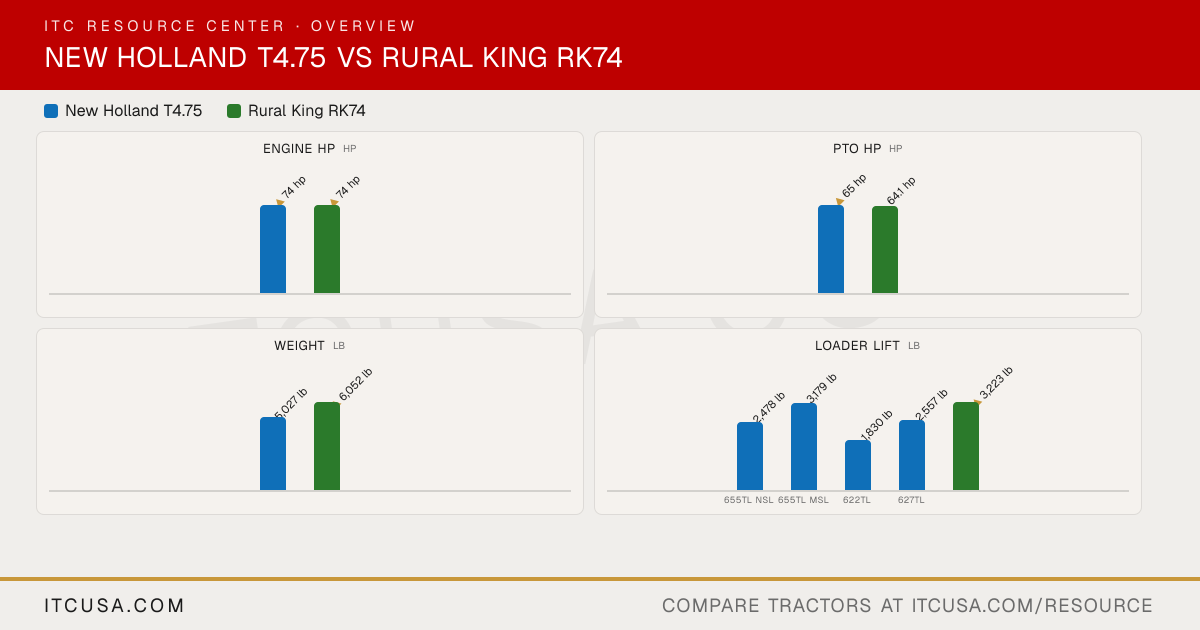

The headline numbers at a glance.

New Holland T4.75Rural King RK74

Engine HPhp

▲74 hp

PTO HPhp

▲65 hp

64.1 hp

Weightlb

5,027 lb

▲6,052 lb

Loader Liftlb

2,478 lb

3,179 lb

1,830 lb

2,557 lb

▲3,223 lb

655TL NSL655TL MSL622TL627TL

3-Pt Lift (24 in)lb

▲3,664 lb

3,414 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandT4.75	Rural KingRK74


Engine Manufacturer	FPT	Deutz
Engine Model	F5C	TCD2.9 L4
Engine Type	4-cylinder diesel, turbocharged	Turbocharged
No. of Cylinders	4	4
Displacement	207 in³	177.0 in³
Rated Engine Speed	2300 rpm	2200 rpm
Engine Power (Gross)	74 hp	74 hp
PTO Power	65 hp	64.1 hp
Engine Emissions Constraints	US EPA Tier 4B	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Common rail fuel injection	Common Rail Direct Injection
Alternator	120 A	95 A, 12 V

Pump Type	Open center, dual pumps: implement pump plus dedicated steering and services pump	Not Published
Implement Flow	12.5 gpm	10.3 gpm
Steering Flow	7.3 gpm (mechanical shuttle); 9.5 gpm (power shuttle)	5.8 gpm
Total Hydraulic Flow	19.8 gpm (mechanical shuttle; 12.5 + 7.3, computed); 22.0 gpm (power shuttle; 12.5 + 9.5, computed)	16.1 gpm
Overall Hydraulic Pump Flow	19.8 gpm (mechanical shuttle; 12.5 + 7.3, computed); 22.0 gpm (power shuttle; 12.5 + 9.5, computed)	16.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 3 rear remotes	Not Published

Fuel Tank Capacity	23.8 gal	23.8 gal
Coolant Capacity	Not Published	10.6 qt
Crankcase Capacity	Not Published	8.5 qt
Transmission / Hydraulic System Capacity	Not Published	18.0 gal
Front Axle Fluid Capacity	Not Published	17.4 qt

PTO Type	Fully independent	Independent
PTO Rear	540 rpm at 1,958 engine rpm (standard); 540E at 1,592 engine rpm (optional)	540/750 rpm
Mid-PTO Availability	Not Published	No mid-PTO offered
Category, 3-Point Hitch	Category II / I	Category II
Hitch Lift Capacity	Not Published	5,115 lb
Hitch Lift Capacity (at 24”)	3,664 lb	3,414 lb
Lift Control Type	Mechanical draft control; top link draft sensing	Position / Draft / Mechanical

Transmission Type	8x8 mechanical synchro shuttle (standard); 8x8 hydraulic power shuttle, 12x12 mechanical synchro shuttle or 12x12 hydraulic power shuttle (optional); creeper available with the power shuttle transmissions	RK74 Power Shuttle Cab (RK74PSC): 16F/16R power shuttle with creeper; RK74 Shuttle Shift Cab: 16F/16R synchronized shuttle with creeper
No. of Speeds	8F/8R (standard); 12F/12R (optional); 12F/12R or 20F/20R with creeper (optional)	16 forward, 16 reverse (creeper interlock)
Max Travel Speed (Forward)	20.1 mph (8x8 and 12x12, 20 mph transmissions); 24.1 mph (optional 24 mph 12x12 transmission, 4WD only)	18.9 mph
Max Travel Speed (Reverse)	20.1 mph	Not Published
Clutch	Mechanical dry disc (mechanical shuttle); wet disc (power shuttle)	Single plate dry clutch (11.81 in diameter); hydraulic clutch assembly for Independent PTO models
Differential Lock & Limited Slip Options	Mechanical rear differential lock	4WD, differential lock

Frame Type	Not Published	Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Hydraulic wet disc	Wet disc
Seat Suspension & Adjustability	Optional deluxe air suspension seat with fully integrated armrest and 10° swivel to the right; full-size instructor seat with seatbelt	High-back suspension seat with extension
Front Axle Type	Heavy-duty 2WD front axle; electronic 4WD front axle (optional)	Center-pivot, reverse Eliot type (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	76.4 in
Wheelbase	85.8 in (2WD); 83.9 in (4WD)	86.1 in
Ground Clearance	Not Published	18.3 in
Min. Turn Radius without Brakes	134 in (2WD front axle)	162.8 in
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	76 to 78.9 in	Not Published
Height to Top of Cab Model	94.8 to 97.8 in	103.3 in
Overall Length	151 in	157.5 in (with 3-point hitch)

Tractor Weight (Base)	5,027 lb (2WD ROPS); 5,952 lb (4WD ROPS)	6,052 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Titan (USA): R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt)
R1 Agricultural - Front	Not Published	11.2-24
R1 Agricultural - Rear	Not Published	16.9-30
R3 Turf - Front	Not Published	12.0-20.5
R3 Turf - Rear	Not Published	22.4-25.5
R4 Industrial - Front	Not Published	15-19.5
R4 Industrial - Rear	Not Published	18.4-24

Quick Attach Loader System	Skid-steer-style or Euro-style quick attach faceplate	L135SL: Skid-steer compatible quick coupler, self-leveling
Loader Model	Factory-fit: 655TL (NSL or MSL); field-fit: 622TL (NSL), 627TL (MSL)	L135SL
Loader Lift Height	655TL NSL: 126 in; 655TL MSL: 125 in; 622TL: 121 in; 627TL: 121 in	L135SL: 135.5 in
Loader Lift Capacity (Full Height)	655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 622TL: 1,830 lb; 627TL: 2,557 lb (to max height, at 31.5 in from pivot point)	L135SL: 3,223 lb at pivot pin to full height
Loader Breakout Force	655TL NSL: 3,739 lb; 655TL MSL: 4,665 lb; 622TL: 3,042 lb; 627TL: 3,307 lb	L135SL: 5,335 lb at pivot pin

Warranty Length & Coverage	Not Published	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 60 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours

Find a New Holland dealer near you Find a dealer near you

New Holland T4.75 vs Rural King RK74: Quick Answers

Which has more horsepower, the New Holland T4.75 or the Rural King RK74?: They are effectively tied: both machines are rated at 74 hp hp for engine hp.
Which has more PTO horsepower, the New Holland T4.75 or the Rural King RK74?: The New Holland T4.75 leads on pto hp at 65 hp hp, compared to 64.1 hp hp for the Rural King RK74.
Which is heavier, the New Holland T4.75 or the Rural King RK74?: The Rural King RK74 leads on weight at 6,052 lb lb, compared to 5,027 lb lb for the New Holland T4.75.
Which has more loader lift capacity, the New Holland T4.75 or the Rural King RK74?: The Rural King RK74 leads on loader lift at 3,223 lb lb, compared to 3,179 lb lb for the New Holland T4.75.
Which has more three-point hitch lift capacity, the New Holland T4.75 or the Rural King RK74?: The New Holland T4.75 leads on 3-pt lift (24 in) at 3,664 lb lb, compared to 3,414 lb lb for the Rural King RK74.

Category Verdict

Spec	New Holland T4.75	Rural King RK74
Engine HP (hp)	74 hp	74 hp
PTO HP (hp)	▲ 65 hp	64.1 hp
Weight (lb)	5,027 lb	▲ 6,052 lb
Loader Lift (lb)	3,179 lb	▲ 3,223 lb
3-Pt Lift (24 in) (lb)	▲ 3,664 lb	3,414 lb
Lift Height (in)	126 in	▲ 135.5 in
Breakout Force (lbf)	4,665 lbf	▲ 5,335 lbf
Hydraulic Flow (gpm)	▲ 19.8 gpm	16.1 gpm
Travel Speed (mph)	▲ 20.1 mph	18.9 mph

The headline numbers at a glance.

New Holland T4.75Rural King RK74

Engine HPhp

▲74 hp

PTO HPhp

▲65 hp

64.1 hp

Weightlb

5,027 lb

▲6,052 lb

Loader Liftlb

2,478 lb

3,179 lb

1,830 lb

2,557 lb

▲3,223 lb

655TL NSL655TL MSL622TL627TL

3-Pt Lift (24 in)lb

▲3,664 lb

3,414 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandT4.75	Rural KingRK74


Engine Manufacturer	FPT	Deutz
Engine Model	F5C	TCD2.9 L4
Engine Type	4-cylinder diesel, turbocharged	Turbocharged
No. of Cylinders	4	4
Displacement	207 in³	177.0 in³
Rated Engine Speed	2300 rpm	2200 rpm
Engine Power (Gross)	74 hp	74 hp
PTO Power	65 hp	64.1 hp
Engine Emissions Constraints	US EPA Tier 4B	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Common rail fuel injection	Common Rail Direct Injection
Alternator	120 A	95 A, 12 V

Pump Type	Open center, dual pumps: implement pump plus dedicated steering and services pump	Not Published
Implement Flow	12.5 gpm	10.3 gpm
Steering Flow	7.3 gpm (mechanical shuttle); 9.5 gpm (power shuttle)	5.8 gpm
Total Hydraulic Flow	19.8 gpm (mechanical shuttle; 12.5 + 7.3, computed); 22.0 gpm (power shuttle; 12.5 + 9.5, computed)	16.1 gpm
Overall Hydraulic Pump Flow	19.8 gpm (mechanical shuttle; 12.5 + 7.3, computed); 22.0 gpm (power shuttle; 12.5 + 9.5, computed)	16.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 3 rear remotes	Not Published

Fuel Tank Capacity	23.8 gal	23.8 gal
Coolant Capacity	Not Published	10.6 qt
Crankcase Capacity	Not Published	8.5 qt
Transmission / Hydraulic System Capacity	Not Published	18.0 gal
Front Axle Fluid Capacity	Not Published	17.4 qt

PTO Type	Fully independent	Independent
PTO Rear	540 rpm at 1,958 engine rpm (standard); 540E at 1,592 engine rpm (optional)	540/750 rpm
Mid-PTO Availability	Not Published	No mid-PTO offered
Category, 3-Point Hitch	Category II / I	Category II
Hitch Lift Capacity	Not Published	5,115 lb
Hitch Lift Capacity (at 24”)	3,664 lb	3,414 lb
Lift Control Type	Mechanical draft control; top link draft sensing	Position / Draft / Mechanical

Transmission Type	8x8 mechanical synchro shuttle (standard); 8x8 hydraulic power shuttle, 12x12 mechanical synchro shuttle or 12x12 hydraulic power shuttle (optional); creeper available with the power shuttle transmissions	RK74 Power Shuttle Cab (RK74PSC): 16F/16R power shuttle with creeper; RK74 Shuttle Shift Cab: 16F/16R synchronized shuttle with creeper
No. of Speeds	8F/8R (standard); 12F/12R (optional); 12F/12R or 20F/20R with creeper (optional)	16 forward, 16 reverse (creeper interlock)
Max Travel Speed (Forward)	20.1 mph (8x8 and 12x12, 20 mph transmissions); 24.1 mph (optional 24 mph 12x12 transmission, 4WD only)	18.9 mph
Max Travel Speed (Reverse)	20.1 mph	Not Published
Clutch	Mechanical dry disc (mechanical shuttle); wet disc (power shuttle)	Single plate dry clutch (11.81 in diameter); hydraulic clutch assembly for Independent PTO models
Differential Lock & Limited Slip Options	Mechanical rear differential lock	4WD, differential lock

Frame Type	Not Published	Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Hydraulic wet disc	Wet disc
Seat Suspension & Adjustability	Optional deluxe air suspension seat with fully integrated armrest and 10° swivel to the right; full-size instructor seat with seatbelt	High-back suspension seat with extension
Front Axle Type	Heavy-duty 2WD front axle; electronic 4WD front axle (optional)	Center-pivot, reverse Eliot type (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	76.4 in
Wheelbase	85.8 in (2WD); 83.9 in (4WD)	86.1 in
Ground Clearance	Not Published	18.3 in
Min. Turn Radius without Brakes	134 in (2WD front axle)	162.8 in
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	76 to 78.9 in	Not Published
Height to Top of Cab Model	94.8 to 97.8 in	103.3 in
Overall Length	151 in	157.5 in (with 3-point hitch)

Tractor Weight (Base)	5,027 lb (2WD ROPS); 5,952 lb (4WD ROPS)	6,052 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Titan (USA): R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt)
R1 Agricultural - Front	Not Published	11.2-24
R1 Agricultural - Rear	Not Published	16.9-30
R3 Turf - Front	Not Published	12.0-20.5
R3 Turf - Rear	Not Published	22.4-25.5
R4 Industrial - Front	Not Published	15-19.5
R4 Industrial - Rear	Not Published	18.4-24

Quick Attach Loader System	Skid-steer-style or Euro-style quick attach faceplate	L135SL: Skid-steer compatible quick coupler, self-leveling
Loader Model	Factory-fit: 655TL (NSL or MSL); field-fit: 622TL (NSL), 627TL (MSL)	L135SL
Loader Lift Height	655TL NSL: 126 in; 655TL MSL: 125 in; 622TL: 121 in; 627TL: 121 in	L135SL: 135.5 in
Loader Lift Capacity (Full Height)	655TL NSL: 2,478 lb; 655TL MSL: 3,179 lb; 622TL: 1,830 lb; 627TL: 2,557 lb (to max height, at 31.5 in from pivot point)	L135SL: 3,223 lb at pivot pin to full height
Loader Breakout Force	655TL NSL: 3,739 lb; 655TL MSL: 4,665 lb; 622TL: 3,042 lb; 627TL: 3,307 lb	L135SL: 5,335 lb at pivot pin

Warranty Length & Coverage	Not Published	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 60 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours

Find a New Holland dealer near you Find a dealer near you

New Holland T4.75 vs Rural King RK74: Quick Answers

Which has more horsepower, the New Holland T4.75 or the Rural King RK74?

They are effectively tied: both machines are rated at 74 hp hp for engine hp.

Which has more PTO horsepower, the New Holland T4.75 or the Rural King RK74?

The New Holland T4.75 leads on pto hp at 65 hp hp, compared to 64.1 hp hp for the Rural King RK74.

Which is heavier, the New Holland T4.75 or the Rural King RK74?

The Rural King RK74 leads on weight at 6,052 lb lb, compared to 5,027 lb lb for the New Holland T4.75.

Which has more loader lift capacity, the New Holland T4.75 or the Rural King RK74?

The Rural King RK74 leads on loader lift at 3,223 lb lb, compared to 3,179 lb lb for the New Holland T4.75.

Which has more three-point hitch lift capacity, the New Holland T4.75 or the Rural King RK74?

The New Holland T4.75 leads on 3-pt lift (24 in) at 3,664 lb lb, compared to 3,414 lb lb for the Rural King RK74.
