Across 4 measurable specs, the New Holland T4.80F leads 4 categories to 0. Machine pages: New Holland T4.80F and New Holland Workmaster 70.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | New Holland T4.80F | New Holland Workmaster 70 |
|---|
| Engine HP (hp) | ▲ 74 hp | 71 hp |
| PTO HP (hp) | ▲ 65 hp | 62.5 hp |
| Loader Lift (lb) | — | 3,130 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 4,045 lb | 2,701 lb |
| Lift Height (in) | — | 122 in |
| Breakout Force (lbf) | — | 3,527 lbf |
| Hydraulic Flow (gpm) | ▲ 26.1 gpm | 17.5 gpm |
| Travel Speed (mph) | — | 19.8 mph |

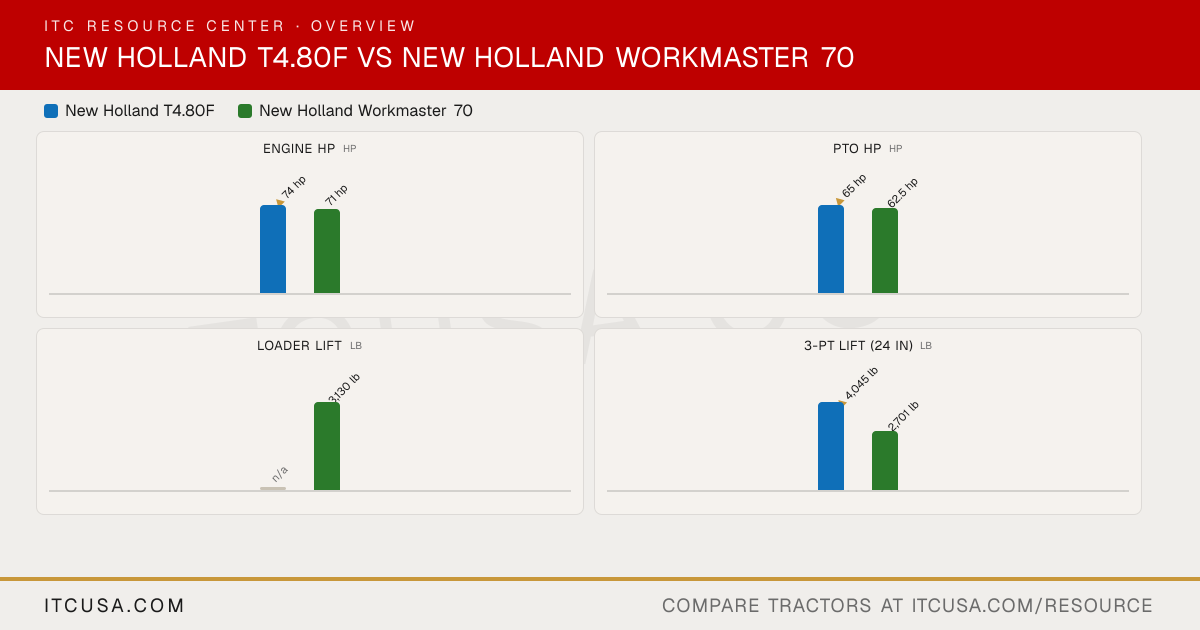

The headline numbers at a glance.
New Holland T4.80FNew Holland Workmaster 70
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandT4.80F | New HollandWorkmaster 70 |
|---|
|
|---|
| PTO Power | 65 hp | 62.5 hp |
|---|
| Alternator | Not Published | 75 A, 12 V |
|---|
| Air Cleaner | Not Published | Inner and outer paper elements |
|---|
| Engine Type | 4-cylinder diesel, Smart Wastegate Turbo, intercooled | Turbocharged, intercooled 3-cylinder diesel |
|---|
| Fuel System | Common-rail fuel-injection | CRDI |
|---|
| Displacement | 207 in³ | 136 in³ |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Rated Engine Speed | 2300 rpm | 2600 rpm |
|---|
| Cooling System Type | Liquid-cooled | Pressurized liquid with recirculating bypass |
|---|
| Engine Manufacturer | FPT Industrial | FPT Industrial |
|---|
| Engine Power (Gross) | 74 hp | 71 hp |
|---|
| Engine Emissions Constraints | Tier 4A CEGR + DOC | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Dual-pump (two separate open-center circuits) | Open-center; dual pumps |
|---|
| Steering Flow | 9.2 gpm | 5.5 gpm |
|---|
| Implement Flow | 16.9 gpm | 12 gpm |
|---|
| Total Hydraulic Flow | 26.1 gpm | 17.5 gpm |
|---|
| Hydraulic System Type | Open center (two separate circuits) | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 26.1 gpm | 17.5 gpm |
|---|
| No. of Optional Remote Valves | 3 | 2 |
|---|
| No. of Standard Remote Valves | 2 | 1 |
|---|
|
|---|
| PTO Rear | 540/540E | 540 rpm |
|---|
| PTO Type | Servo-assisted engagement | Independent |
|---|
| Lift Control Type | Lift-O-Matic | Not Published |
|---|
| Hitch Lift Capacity | 5,732 lb | 3,307 lb at ball ends |
|---|
| Mid-PTO Availability | Not Published | Not Applicable |
|---|
| Category, 3-Point Hitch | Category I & II | Category II/I |
|---|
| Hitch Lift Capacity (at 24”) | 4,045 lb | 2,701 lb |
|---|
|
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| Tire Size & Options | Not Published | R1 Agricultural, R4 Industrial |
|---|
| R4 Industrial - Rear | Not Published | 18.4X24R4 |
|---|
| R4 Industrial - Front | Not Published | 12.5X18 |
|---|
| R1 Agricultural - Rear | Not Published | 13.6X28R1, 6 ply; 14.9X28R1, 6 ply |
|---|
| R1 Agricultural - Front | Not Published | 8.3X24, 6 ply |
|---|
|
|---|
| Coolant Capacity | Not Published | 10.6 qt |
|---|
| Crankcase Capacity | Not Published | 6.7 qt |
|---|
| Fuel Tank Capacity | 25 gal | 17.2 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 8.0 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 6.6 gal |
|---|
|
|---|
| Loader Lift Height | Not Published | Up to 122 in |
|---|
| Loader Breakout Force | Not Published | Up to 3,527 lb |
|---|
| Quick Attach Loader System | Not Published | 600TL: Front loader (quick-attach design) |
|---|
| Loader Lift Capacity (Full Height) | Not Published | Up to 3,130 lb |
|---|
|
|---|
| Clutch | Not Published | LUK, 11 in |
|---|
| No. of Speeds | 16F/16R; 32F/16R | 8F/8R |
|---|
| Transmission Type | 16x16 Shuttle Command; 16x16 Power Shuttle; 32x16 Dual Command | 8x8 synchronized shuttle |
|---|
| Max Travel Speed (Forward) | Not Published | 19.8 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 20.9 mph |
|---|
| Differential Lock & Limited Slip Options | Electro hydraulic differential lock | Rear differential lock (pedal) |
|---|
|
|---|
| Brakes | Oil immersed braking system | Wet disc |
|---|
| Steering | Not Published | Power |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | SuperSteer FWD axle | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | 6,500 lb dynamic capacity |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 96 in | 77.2 in |
|---|
| Overall Width | 62 in (minimum) | 67.5 in |
|---|
| Ground Clearance | 10 in | 15.9 in |
|---|
| Height to Top of ROPS | 91 in | 97.6 in |
|---|
| Height to Top of Cab Model | 89 in | 105.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | 77.0 in |
|---|
| Min. Turn Radius without Brakes | 117 in | 190.9 in |
|---|
| Overall Length with 3-Point Hitch | Not Published | 134.0 in |
|---|
New Holland T4.80F vs New Holland Workmaster 70: Quick Answers
- Which has more horsepower, the New Holland T4.80F or the New Holland Workmaster 70?
- The New Holland T4.80F leads on engine hp at 74 hp hp, compared to 71 hp hp for the New Holland Workmaster 70.
- Which has more PTO horsepower, the New Holland T4.80F or the New Holland Workmaster 70?
- The New Holland T4.80F leads on pto hp at 65 hp hp, compared to 62.5 hp hp for the New Holland Workmaster 70.
- Which has more three-point hitch lift capacity, the New Holland T4.80F or the New Holland Workmaster 70?
- The New Holland T4.80F leads on 3-pt lift (24 in) at 4,045 lb lb, compared to 2,701 lb lb for the New Holland Workmaster 70.
