| Engine Manufacturer | FPT Industrial | FPT |
|---|
| Engine Model | F34 | R753 |
|---|
| Engine Type | 4-cylinder diesel, Smart Wastegate Turbo, intercooled | Turbocharged, intercooled 3-cylinder diesel |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 207 in³ | 136 in³ |
|---|
| Rated Engine Speed | 2300 rpm | 2600 rpm |
|---|

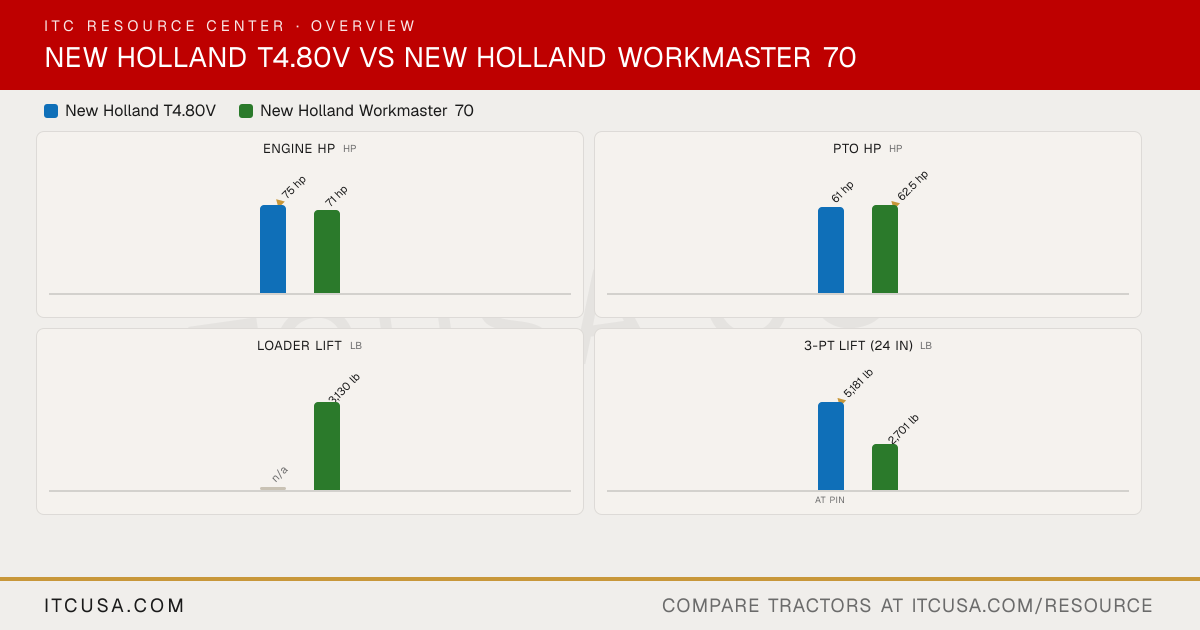

| Engine Power (Gross) | 74 hp | 70 hp |
|---|
| PTO Power | 65 hp | 62 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Pressurized liquid with recirculating bypass |
|---|
| Air Cleaner | Not Published | 2-stage |
|---|
| Fuel System | Common-rail fuel injection | Common rail direct injection (CRDI) |
|---|
| Alternator | Not Published | 75 A |
|---|
|
|---|
| Pump Type | Dual-pump, open center | Two engine-driven gear pumps, open center, fixed displacement |
|---|
| Implement Flow | 16.9 gpm | 12 gpm |
|---|
| Steering Flow | 9.5 gpm | 5.5 gpm |
|---|
| Total Hydraulic Flow | 26.4 gpm (16.9 + 9.5, computed) | 17.5 gpm |
|---|
| Overall Hydraulic Pump Flow | 26.4 gpm (16.9 + 9.5, computed) | 17.5 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 1 |
|---|
| No. of Optional Remote Valves | 3+2 (10 outlets) | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 15.3 gal | 17.2 gal |
|---|
| Coolant Capacity | Not Published | 10.6 qt |
|---|
| Crankcase Capacity | Not Published | 6.7 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | ROPS 2WD: 6.1 gal; ROPS 4WD: 6.6 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 4WD: 8.0 qt |
|---|
|
|---|
| PTO Type | Electrohydraulic wet clutch (optional) | Independent |
|---|
| PTO Rear | 540/540E (std); 540/540E/1000 and ground speed (opt) | 540 rpm (540/540E optional) |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Not Published | Category II/I |
|---|
| Hitch Lift Capacity | 5,181 lb | 3,307 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | 2,701 lb |
|---|
| Lift Control Type | Mechanical draft control with single-lever raise and lower (standard); electronic draft control (optional, cab) | Position control with mechanical draft control |
|---|
|
|---|
| Transmission Type | 16x16 Shuttle Command; 16x16 Power Shuttle; 32x16 Dual Command | 8x8 synchronized shuttle |
|---|
| No. of Speeds | 16F/16R; 32F/16R | 8F/8R |
|---|
| Max Travel Speed (Forward) | 25 mph | 19.1 mph (13.6x28 rear tires); 19.8 mph (14.9x28 rear tires) |
|---|
| Max Travel Speed (Reverse) | Not Published | 20.2 mph (13.6x28 rear tires); 20.9 mph (14.9x28 rear tires) |
|---|
| Clutch | Wet clutch | Dry, 11 in organic plate (LUK) |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic differential lock | Mechanical rear differential lock (foot pedal); 4WD front axle with limited slip and front differential lock |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Not Published | Power steering |
|---|
| Brakes | Oil-immersed brakes | Individual mechanically actuated wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Deluxe contoured suspension seat, adjusts to operator height |
|---|
| Front Axle Type | 4WD front axle | 4WD: limited-slip front axle with front differential lock, mechanical engagement |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | Not Published | ROPS 2WD: 129.5 in; ROPS 4WD: 134.0 in |
|---|
| Overall Width | 41.8 in | ROPS 2WD: 66.5 in; ROPS 4WD: 67.5 in |
|---|
| Wheelbase | 85.8 in | ROPS 2WD: 77.6 in; ROPS 4WD: 77.2 in |
|---|
| Ground Clearance | Not Published | ROPS 2WD: 19.5 in; ROPS 4WD: 15.9 in |
|---|
| Min. Turn Radius without Brakes | Not Published | ROPS 2WD: 122.0 in; ROPS 4WD: 190.9 in |
|---|
| Height to Top of ROPS | 98.7 in | ROPS 2WD: 96.5 in; ROPS 4WD: 97.6 in |
|---|
| Height to Top of ROPS (folded) | Not Published | ROPS 2WD: 75.9 in; ROPS 4WD: 77.0 in |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | Not Published | ROPS 2WD: 4,442 lb; ROPS 4WD: 5,059 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Rear: 280/85R28 (T4V); other rear tires available | R1 agricultural, R3 turf, R4 industrial |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | 14.9x28 R1, 6 ply |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | 12.5x18 |
|---|
| R4 Industrial - Rear | Not Published | 18.4x24 R4 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | 600TL Series quick-attach loader (611TL, 621TL, 616TL, 626TL) |
|---|
| Loader Model | Not Published | 611TL, 616TL, 621TL, 626TL (611TL and 621TL non self-leveling; 616TL and 626TL mechanical self-leveling) |
|---|
| Loader Lift Height | Not Published | 611TL: 112 in; 616TL: 115 in; 621TL: 119 in; 626TL: 122 in |
|---|
| Loader Lift Capacity (Full Height) | Not Published | 616TL: 1,940 lb; 621TL: 3,549 lb; 626TL: 2,447 lb (at the pivot pin, full height) |
|---|
| Loader Breakout Force | Not Published | 611TL: 2,998 lb; 616TL: 3,130 lb; 621TL: 3,086 lb; 626TL: 3,527 lb (at 31.5 in ahead of pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
