| Engine Manufacturer | FPT | FPT |
|---|
| Engine Model | F5G | F36 |
|---|
| Engine Type | Dual Command: 4-cylinder diesel; Electro Command: 4-cylinder turbocharged diesel, high-pressure common rail, air-to-air intercooled | 4-cylinder |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 207 in³ | Not Published |
|---|
| Rated Engine Speed | 2200 rpm | Not Published |
|---|

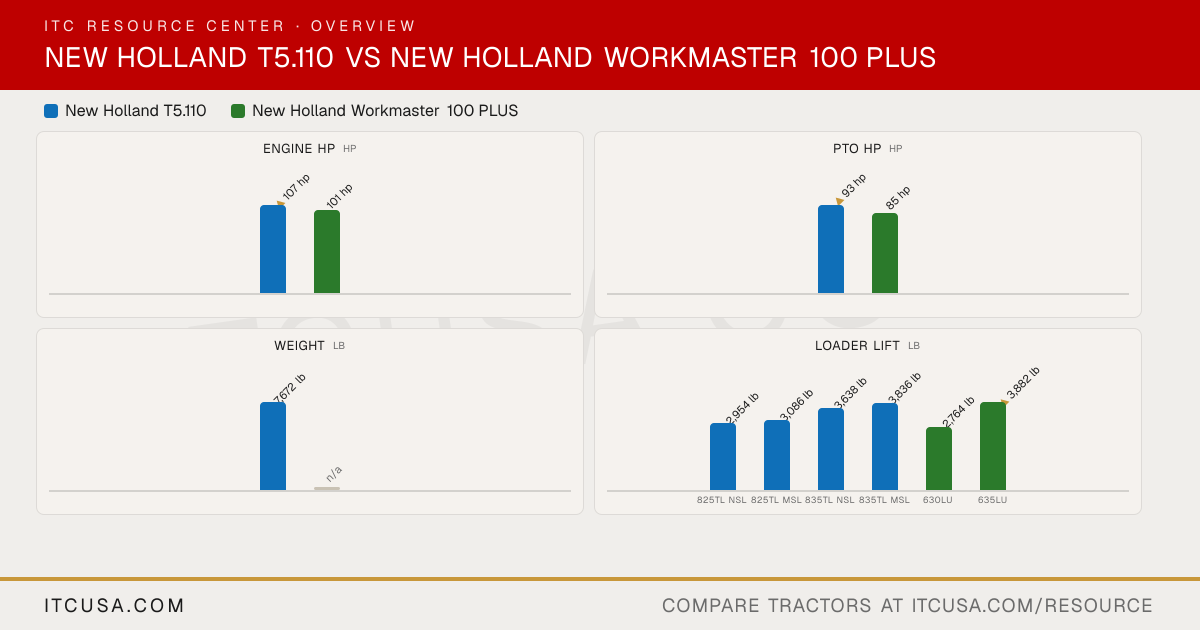

| Engine Power (Gross) | 107 hp | 101 hp |
|---|
| PTO Power | 93 hp | 85 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Electro Command: high-pressure common rail with electronic fuel delivery control | Not Published |
|---|
| Alternator | 120 A | Not Published |
|---|
|
|---|
| Pump Type | Fixed displacement, tandem pumps (implement and steering) | Not Published |
|---|
| Implement Flow | Dual Command: 16.9 gpm; Electro Command: 21.1 gpm | Not Published |
|---|
| Steering Flow | Dual Command: 9.7 gpm; Electro Command: 11.4 gpm | Not Published |
|---|
| Total Hydraulic Flow | Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) | 21 gpm |
|---|
| Overall Hydraulic Pump Flow | Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) | Not Published |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Dual Command: 2 or 3; Electro Command: 2 | Not Published |
|---|
| No. of Optional Remote Valves | Electro Command: 3 (plus 2 mid-mount) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | Electro Command: 43.6 gal | 34.3 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent (hydraulic wet disc clutch) | Not Published |
|---|
| PTO Rear | Dual Command: 540/1000 rpm (optional); Electro Command: 540/1000 rpm (540/540E/1000 optional) | Not Published |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category II | Not Published |
|---|
| Hitch Lift Capacity | Dual Command: 5,620 lb (7,351 lb with optional ram); Electro Command: 8,084 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | Dual Command: 5,620 lb (7,351 lb with optional ram) | Not Published |
|---|
| Lift Control Type | Not Published | Not Published |
|---|
|
|---|
| Transmission Type | Dual Command: 24x24 Dual Command Hi-Lo with power shuttle (standard); Electro Command: 16x16 Electro Command semi-powershift (AutoShift or 32x32 creeper optional) | 12x12 electronic power shuttle |
|---|
| No. of Speeds | Dual Command: 24F/24R; Electro Command: 16F/16R (32F/32R with creeper) | 12 forward / 12 reverse |
|---|
| Max Travel Speed (Forward) | 25 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Electro-hydraulic rear differential lock; TerraLock automatic 4WD and differential lock engagement optional on Electro Command | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Not Published |
|---|
| Brakes | Hydraulic wet disc | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Air ride seat (standard); instructor seat available |
|---|
| Front Axle Type | 4WD front axle, class 1.5 HD (TerraGlide suspended 4WD front axle optional on Electro Command) | Class 1.0 HD heavy-duty front axle |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | Dual Command: 160.9 in; Electro Command: 165 in | Not Published |
|---|
| Overall Width | Dual Command: 75.7 in | Not Published |
|---|
| Wheelbase | Dual Command: 89.9 in; Electro Command: 93.7 in | Not Published |
|---|
| Ground Clearance | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Dual Command: 106.5 in | Not Published |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Dual Command: 102.1 in; Electro Command: 107 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | Dual Command (ROPS): 7,672 lb; Dual Command (Cab): 8,157 lb; Electro Command (Cab): 10,031 lb | Not Published |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Not Published |
|---|
| R1 Agricultural - Front | 14.9R24 | Not Published |
|---|
| R1 Agricultural - Rear | 18.4R34 | Not Published |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Skid-steer style or Euro (European) style tool carrier | Not Published |
|---|
| Loader Model | 825TL; 835TL (each NSL or MSL); 810LA (NSL); 815LA (MSL) | 630LU; 635LU |
|---|
| Loader Lift Height | 825TL: 139.0 in; 835TL: 146.9 in (to pivot pin) | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 825TL NSL: 2,954 lb; 825TL MSL: 3,086 lb; 835TL NSL: 3,638 lb; 835TL MSL: 3,836 lb (to max height, measured 31.5 in forward of pivot pin) | Not Published |
|---|
| Loader Breakout Force | 825TL NSL: 3,109 lb; 825TL MSL: 3,417 lb; 835TL NSL: 3,880 lb; 835TL MSL: 4,277 lb (measured 31.5 in forward of pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
