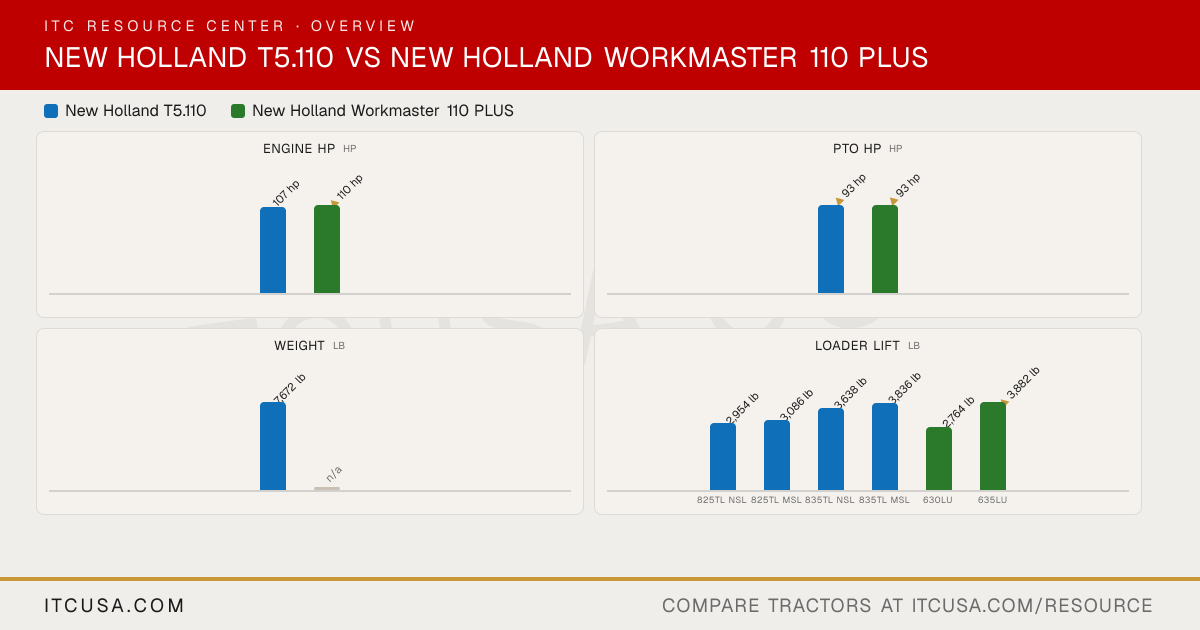

▶ EngineEngine Manufacturer FPT FPT Engine Model F5G F36 Engine Type Dual Command: 4-cylinder diesel; Electro Command: 4-cylinder turbocharged diesel, high-pressure common rail, air-to-air intercooled 4-cylinder No. of Cylinders 4 4 Displacement 207 in³ Not Published Rated Engine Speed 2200 rpm Not Published Engine Power (Gross) 107 hp 110 hp PTO Power 93 hp 93 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid cooled Not Published Air Cleaner Not Published Not Published Fuel System Electro Command: high-pressure common rail with electronic fuel delivery control Not Published Alternator 120 A Not Published ▶ HydraulicsPump Type Fixed displacement, tandem pumps (implement and steering) Not Published Implement Flow Dual Command: 16.9 gpm; Electro Command: 21.1 gpm Not Published Steering Flow Dual Command: 9.7 gpm; Electro Command: 11.4 gpm Not Published Total Hydraulic Flow Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) 21 gpm Overall Hydraulic Pump Flow Dual Command: 26.6 gpm (16.9 + 9.7, computed); Electro Command: 32.5 gpm (21.1 + 11.4, computed) Not Published Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Dual Command: 2 or 3; Electro Command: 2 Not Published No. of Optional Remote Valves Electro Command: 3 (plus 2 mid-mount) Not Published ▶ Fluid CapacityFuel Tank Capacity Electro Command: 43.6 gal 34.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent (hydraulic wet disc clutch) Not Published PTO Rear Dual Command: 540/1000 rpm (optional); Electro Command: 540/1000 rpm (540/540E/1000 optional) Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Not Published Hitch Lift Capacity Dual Command: 5,620 lb (7,351 lb with optional ram); Electro Command: 8,084 lb Not Published Hitch Lift Capacity (at 24”) Dual Command: 5,620 lb (7,351 lb with optional ram) Not Published Lift Control Type Not Published Not Published ▶ Transmission & DrivetrainTransmission Type Dual Command: 24x24 Dual Command Hi-Lo with power shuttle (standard); Electro Command: 16x16 Electro Command semi-powershift (AutoShift or 32x32 creeper optional) 12x12 electronic power shuttle No. of Speeds Dual Command: 24F/24R; Electro Command: 16F/16R (32F/32R with creeper) 12 forward / 12 reverse Max Travel Speed (Forward) 25 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock; TerraLock automatic 4WD and differential lock engagement optional on Electro Command Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Not Published Brakes Hydraulic wet disc Not Published Seat Suspension & Adjustability Not Published Air ride seat (standard); instructor seat available Front Axle Type 4WD front axle, class 1.5 HD (TerraGlide suspended 4WD front axle optional on Electro Command) Class 1.0 HD heavy-duty front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Dual Command: 160.9 in; Electro Command: 165 in Not Published Overall Width Dual Command: 75.7 in Not Published Wheelbase Dual Command: 89.9 in; Electro Command: 93.7 in Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Dual Command: 106.5 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Dual Command: 102.1 in; Electro Command: 107 in Not Published ▶ WeightTractor Weight (Base) Dual Command (ROPS): 7,672 lb; Dual Command (Cab): 8,157 lb; Electro Command (Cab): 10,031 lb Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front 14.9R24 Not Published R1 Agricultural - Rear 18.4R34 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style or Euro (European) style tool carrier Not Published Loader Model 825TL; 835TL (each NSL or MSL); 810LA (NSL); 815LA (MSL) 630LU; 635LU Loader Lift Height 825TL: 139.0 in; 835TL: 146.9 in (to pivot pin) 143.9 in (630LU and 635LU) Loader Lift Capacity (Full Height) 825TL NSL: 2,954 lb; 825TL MSL: 3,086 lb; 835TL NSL: 3,638 lb; 835TL MSL: 3,836 lb (to max height, measured 31.5 in forward of pivot pin) 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, 31.5 in forward of the bucket pivot point) Loader Breakout Force 825TL NSL: 3,109 lb; 825TL MSL: 3,417 lb; 835TL NSL: 3,880 lb; 835TL MSL: 4,277 lb (measured 31.5 in forward of pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
